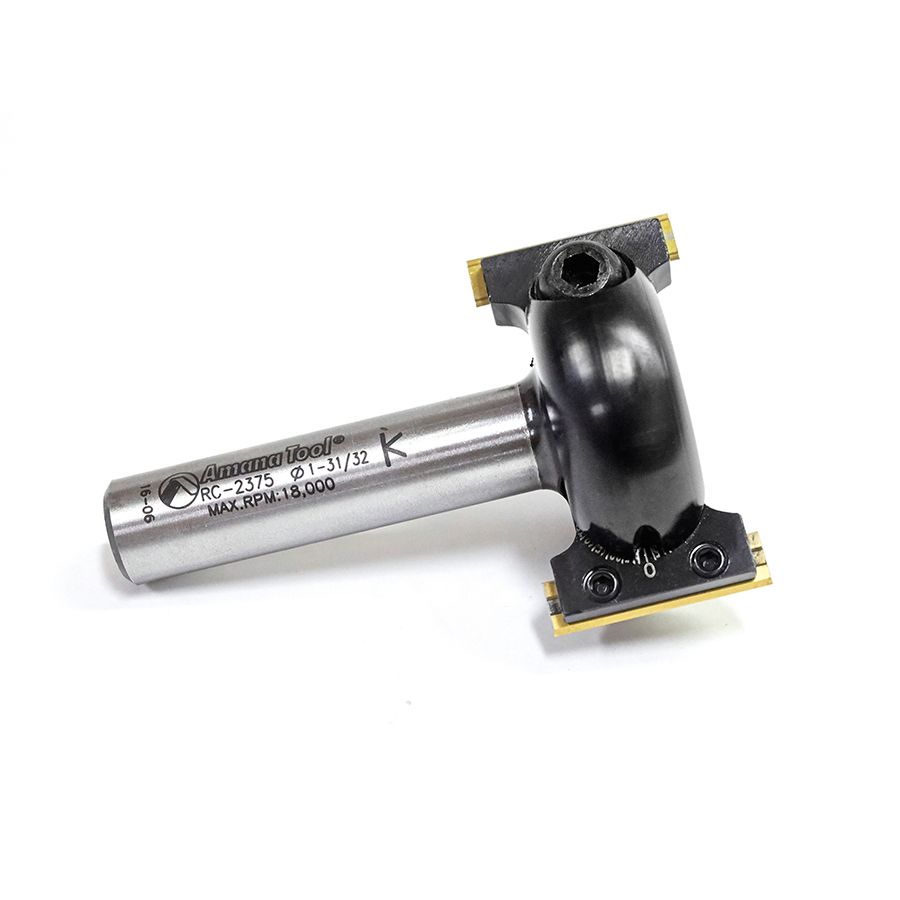

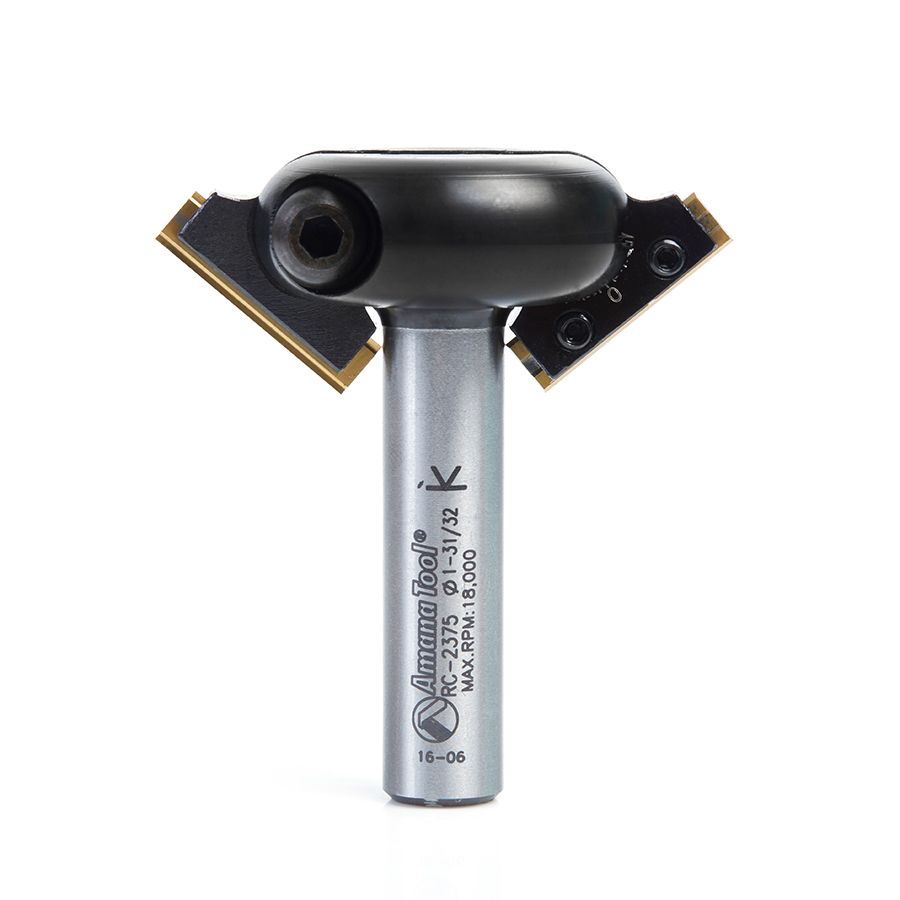

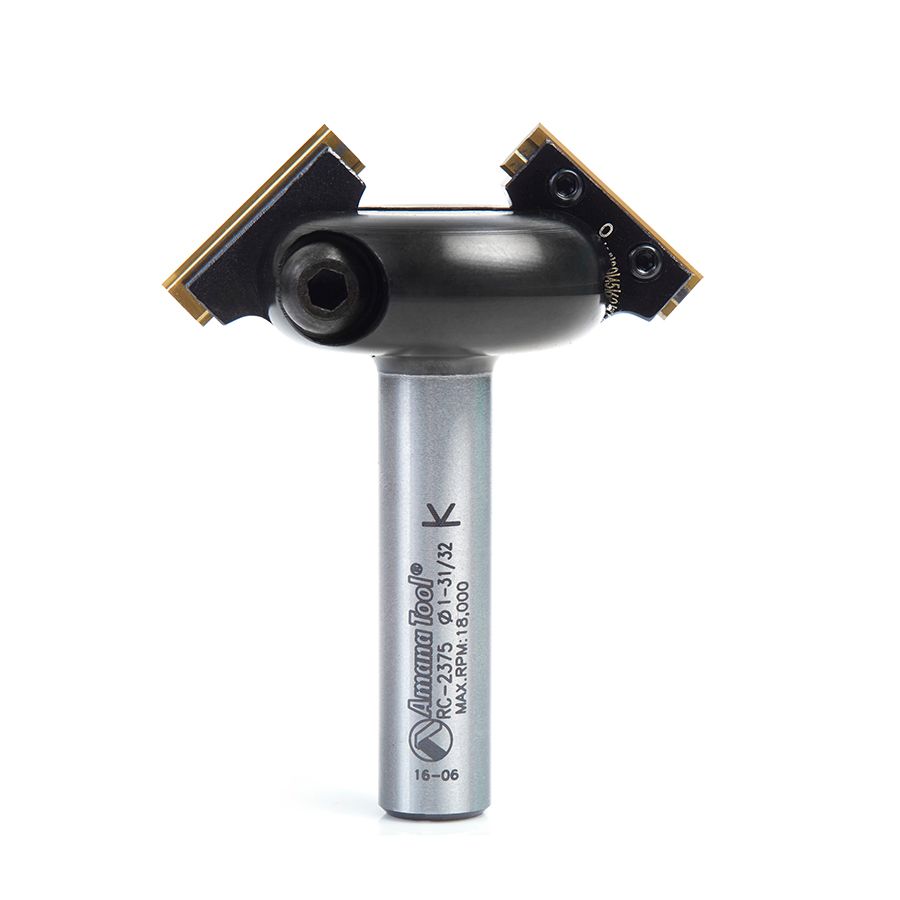

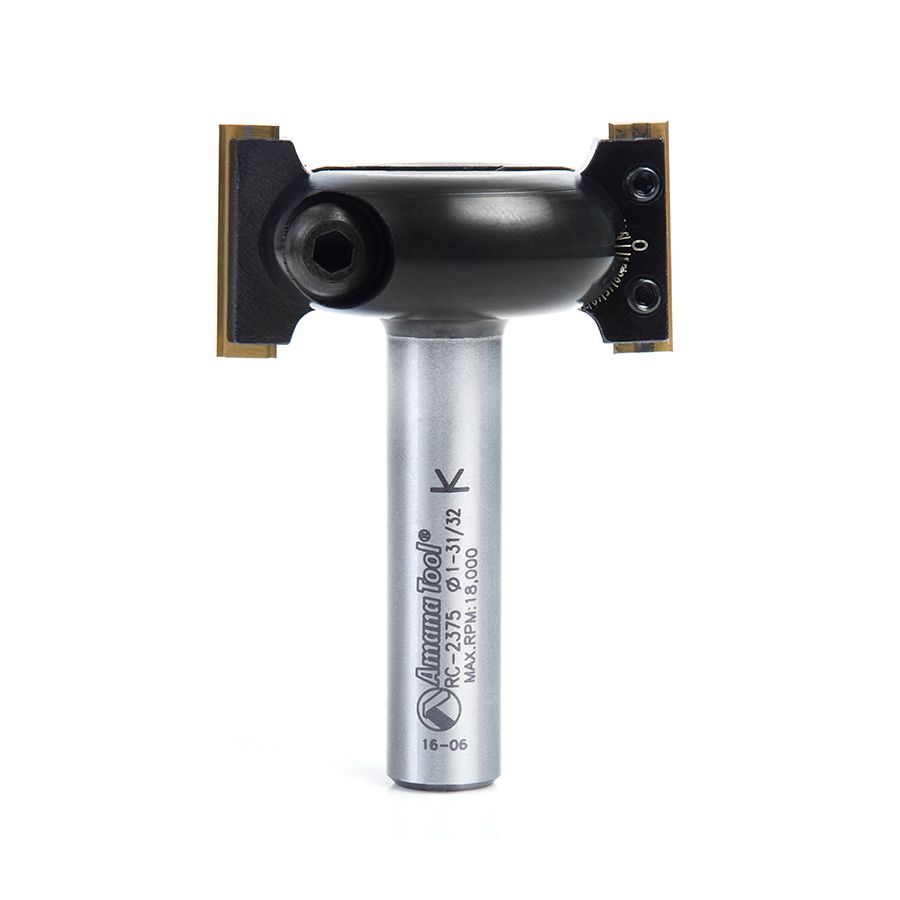

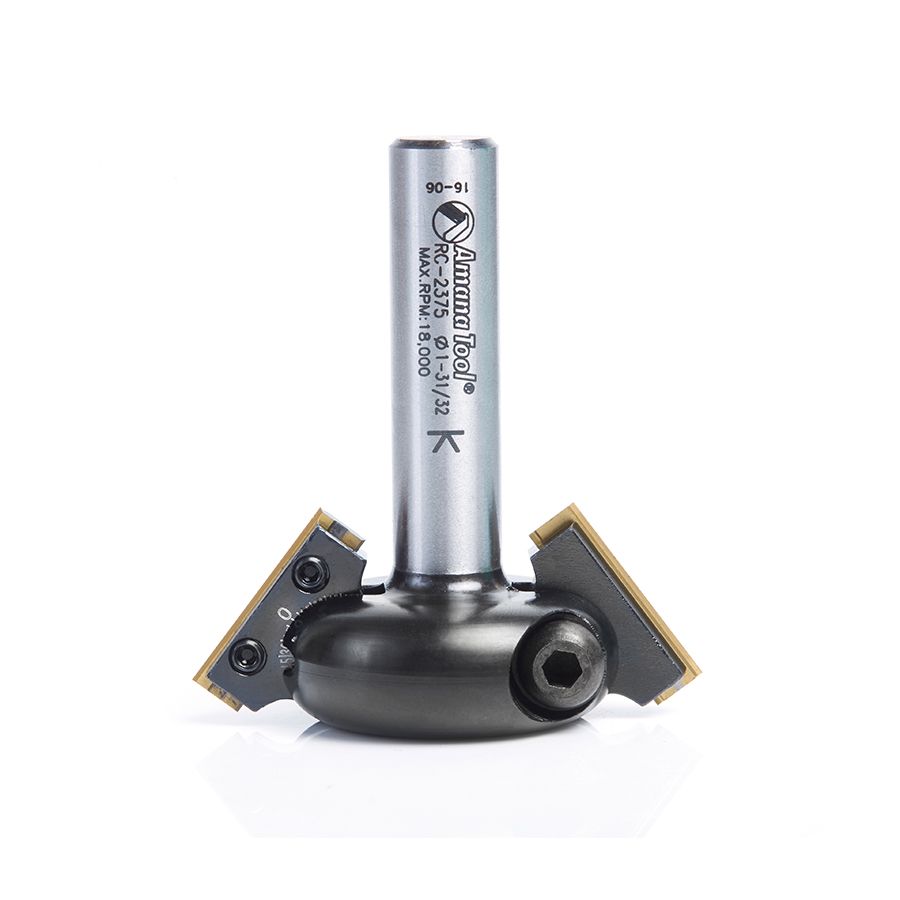

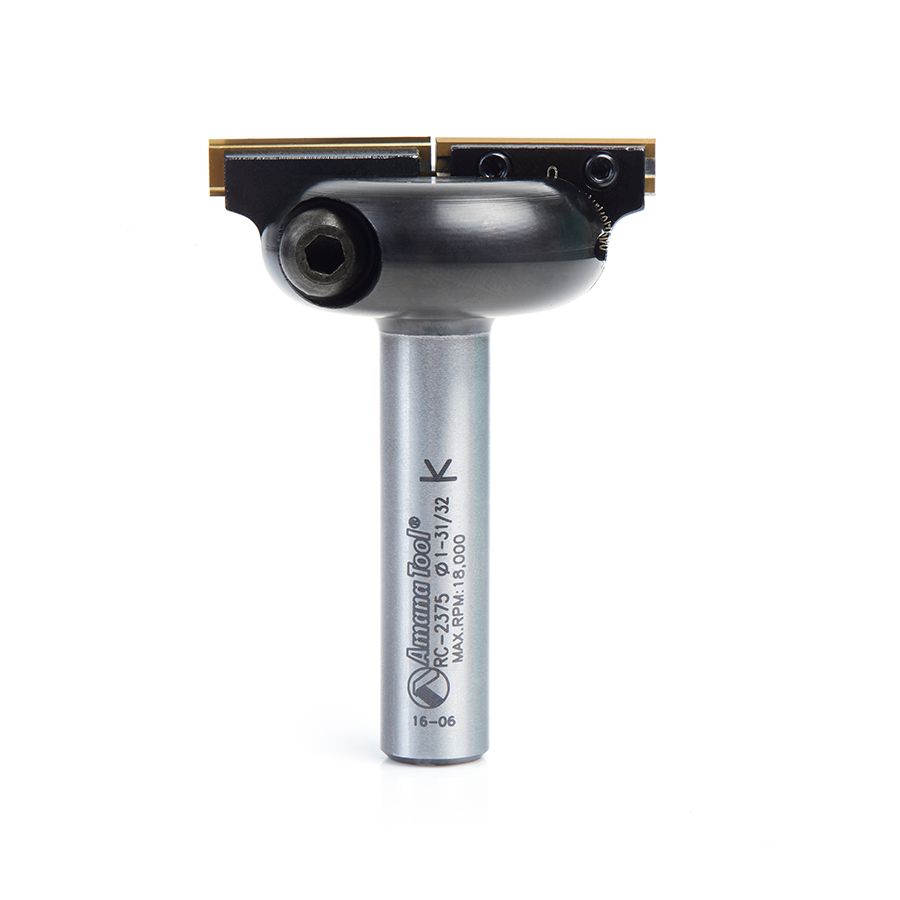

Amana Tool RC-2375 In-Bevel™ Insert Adjustable Chamfer 2 Dia x 31/32 x 1/2 Shank Router Bit for CNC Handheld and Router Tables
- In-Bevel™ insert router bit complete with two cutting flutes. Suitable for producing chamfer, rabbet, bevel and spoilboard cuts at various angles in softwood, hardwood and man-made boards. The dial clicks/stops every 15° by using a notched scale. Good for use in CNC machine, handheld router and router table machines.
- Insert knives are coated for longer cutting life with two cutting edges that allow users to rotate the knife when one side becomes dull.
- The dial clicks/stops every 15 degrees.
- General purpose knife: #RCK-460
- Optional Special carbide grade for long lasting MDF work: #RCK-462
- Bit tolerance is (+) (-) 0.5°.
- Excellent for cutting:
- Man-Made Boards
- Plastic/Acrylic
- Hardwood/Softwood
- Ultra-High-Molecular-Weight Polyethylene (UHMWPE)
- Laminate
- MDF/HDF
- Melamine
- Plywood
- General Purpose Insert Knife
- Optional Special Carbide Grade Insert Knife for Long Lasting MDF Work
- Knife Screw
- Knife Screw Key
- Adjustment Screw Key
- 67133
- 5001
- 5003
- RC-2375 DXF
- File Size : 597.78 KB
| Cutting Diameter | 2 |
|---|---|
| Shank | 1/2 |
| Cutting Length | 31/32 |
| Overall Length | 2-13/16 |
| (d1) | 25mm (63/64") |
| (D2) | 11.5mm (29/64") |
| Maximum RPM | 16000 |
| a° | -45° to +90° |
