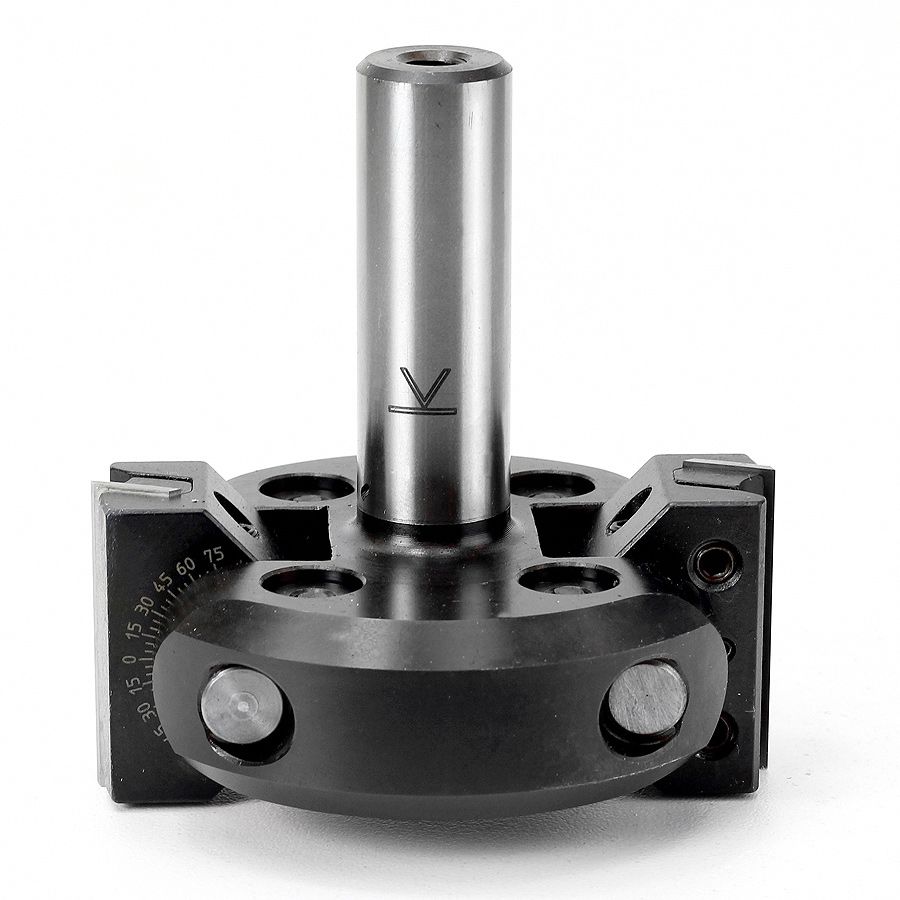

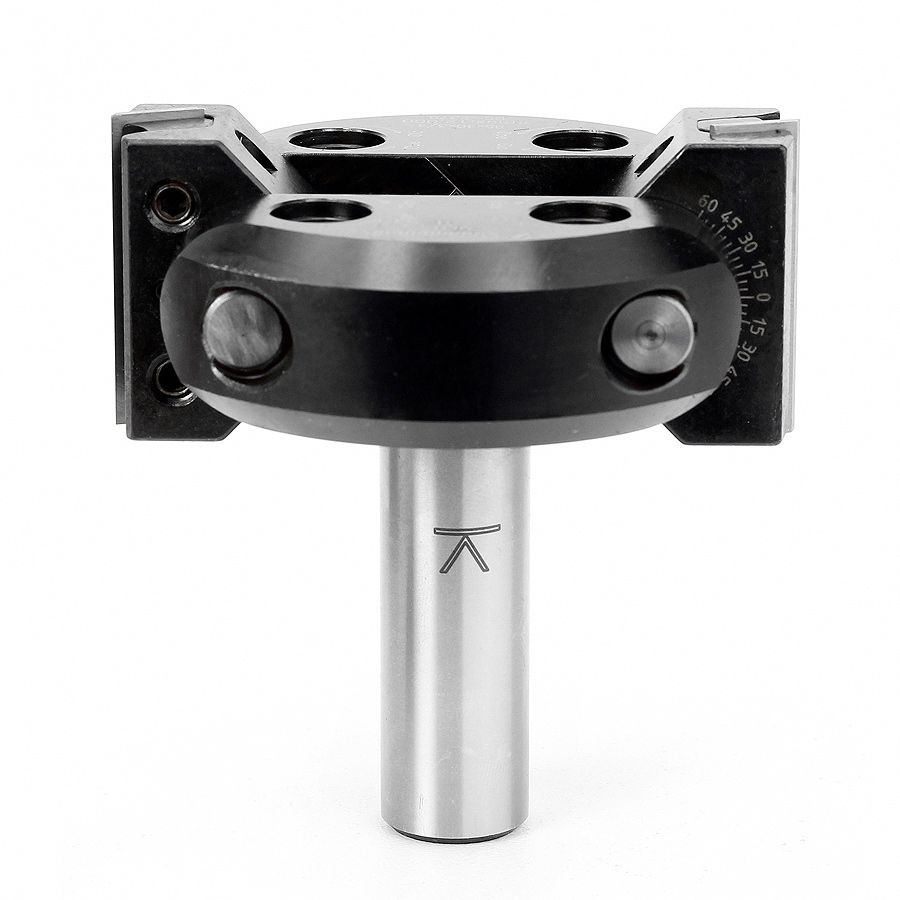

Amana Tool RC-2370 Insert Adjustable Chamfer 3-1/8 Dia x 40mm x 3/4 Shank
- Insert router bit complete with two cutting flutes. Suitable for producing chamfer cuts at various angles in softwood hardwood and man-made boards. Cutting angle can be adjusted in 7.5° steps by using a notched scale. (-45°, -37.5°, -30°, -22.5°, -15°, -7.5°, 0, 7.5°, 15°, 22.5°, 30°, 37.5°, 45°, 52.5°, 60°, 67.5°, 75°, 82.5°, 90°)
- For use on routers and machining centers with CNC control.
- Bit tolerance is (+) (-) 0.5°.
- Excellent for cutting:
- Man-Made Boards
- Plastic/Acrylic
- Hardwood/Softwood
- Ultra-High-Molecular-Weight Polyethylene (UHMWPE)
- Laminate
- MDF/HDF
- Melamine
- Plywood
- Solid Carbide Knife
- Wedge
- Locking Wedge
- Hex Screw
- Hex Key
- RCK-40
- 67189
- 67183
- 5020
- 5024
- RC-2370 DXF
- File Size : 1.11 MB
| Cutting Diameter | 3-1/8 |
|---|---|
| Shank | 3/4 |
| Cutting Length | 40mm |
| Overall Length | 3-11/16 |
| Maximum RPM | 12000 |
