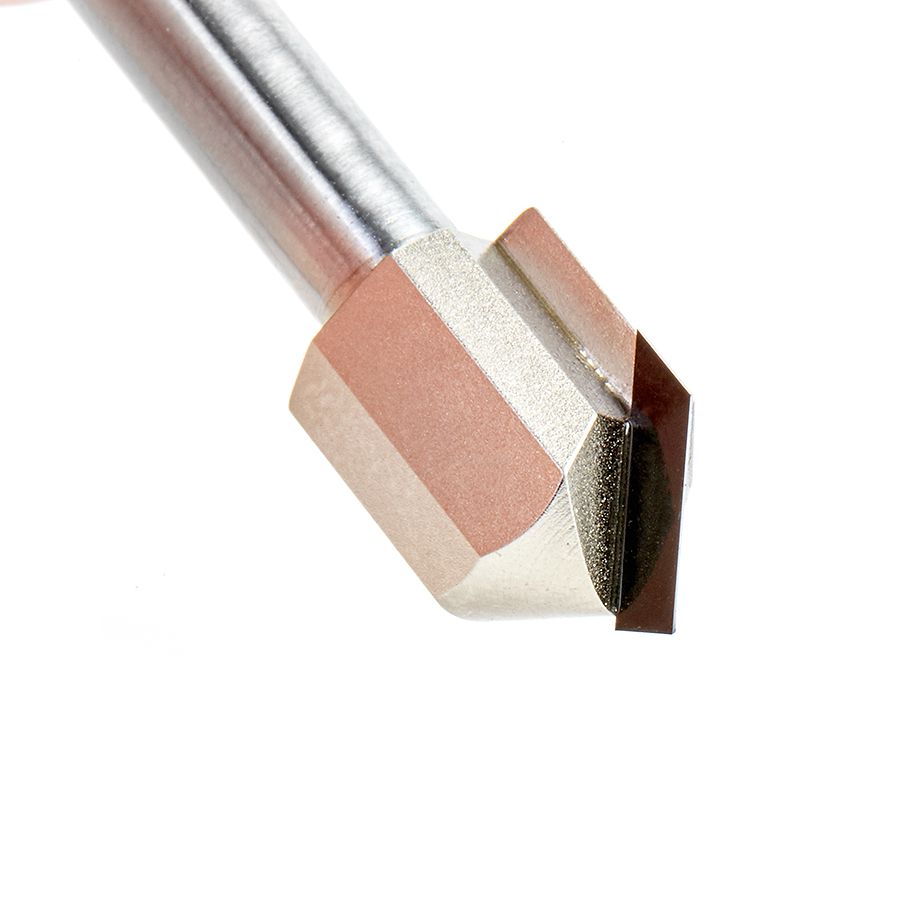

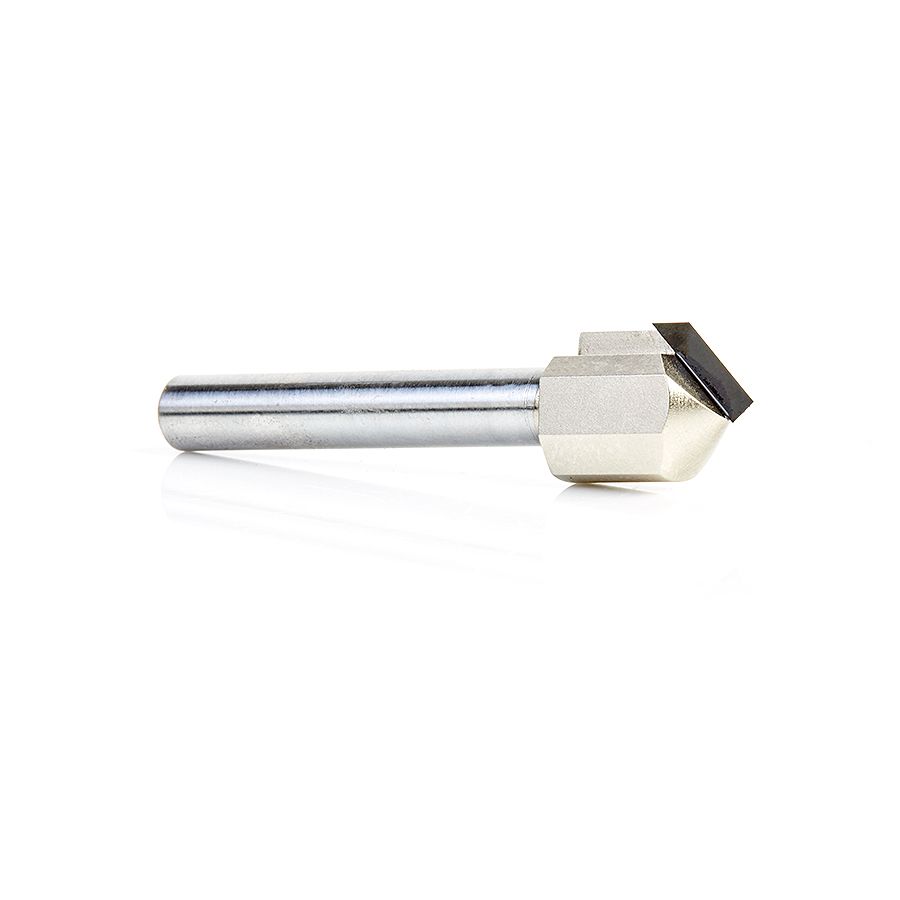

Amana Tool DRB-418 CNC Polycrystalline Diamond (PCD) 90 Degree Engraving, V-Grooving and Chamfering Router Bit 1/2 Dia x 1/4 x 1/4 Shank
- Diamond is the hardest material on the earth. Polycrystalline Diamond (PCD) tooling is manufactured in a high-temperature and high-pressure laboratory that fuses diamond particles onto a carbide substrate which allows the diamond to be brazed onto a tool body.
- If you’re looking for the ultimate in tooling you’ve found it! Amana Tool®'s PCD tipped 90 degree engraving V-grooving and chamfering CNC router bits will groove a wide variety of tough abrasive materials including composites particleboard MDF (both raw or with melamine) veneer and hardwoods. The cutting edge lasts much longer than carbide for extremely long life.
- Excellent for V-Grooving and Chamfering:
- Aluminum Composite Material (ACM)
- Carbon Fiber
- Composites
- Composite Decking
- Hard Wood
- Laminated Chipboard and MDF
- Plywood Veneer
- Soft Wood
- Solid Surface
- Synthetic and Homogenous Marble
- Excellent for Engraving:
- Aluminum Brass & Copper
- Aluminum Composite Material (ACM)
- Aluminum Composites
- Carbon Fiber
- Coroplast®
- Hard Wood
- HDPE
- King Starboard® / Marine Building Material
- Laminated Chipboard and MDF
- Metal Alloys that don't contain Iron
- PCB Board
- Phenolic
- Plastics
- Plywood Veneer
- Soft Wood
- Solid Surface
- Synthetic and Homogenous Marble
- Titanium
- Benefits of Diamond Technology
- Harder cutting edge provides higher resistance to wear
- Cut thousands of feet more than carbide without changing tool saving setup time
- Optimized machine tool efficiency
- Quality of finish is often significantly improved
- Warning: Maximum recommended material depth in one pass varies from 0.5mm - 3.0mm depending on the hardness of the material. The harder the material the less the depth.
- DRB-418 DXF
- File Size : 193.54 KB
| Cutting Diameter | 1/2 |
|---|---|
| Shank | 1/4 |
| Cutting Length | 1/4 |
| Overall Length | 2-1/4 |
| (d1) | 0.004" |
| Number of Flutes | 1 |
| Maximum RPM | 24000 |
| Angle degree | 90° |
| (B1) | 3/8 |
