Amana Tool DCIP-12 Polycrystalline Diamond (PCD) 3 Flute 100 Degree Countersink with Integral Pilot 5/8 Dia x 1/4 Pilot Dia x 1/4-28 Thread Shank
- Diamond is the hardest material on the earth. Polycrystalline Diamond (PCD) tooling is manufactured in a high-temperature and high-pressure laboratory that fuses diamond particles onto a carbide substrate, which allows the diamond to be brazed onto a tool body.
- Polycrystalline Diamond (PCD) tools are designed to achieve up to 50x tool life over High-speed steel (HSS) or Carbide Tipped.
- The aerospace industry extensively utilizes composite materials, such as carbon fiber reinforced polymers (CFRP), in various aircraft components, including fuselages, wings, and stabilizers. Machining these abrasive materials requires specialized tools to ensure precision and durability. PCD tipped tools are particularly effective in this context, offering superior wear resistance and prolonged tool life.
- Leading aerospace manufacturers rely on high-performance diamond tipped tools for machining composite materials, ensuring structural integrity and aerodynamic efficiency in aircraft production.
- If you’re looking for the ultimate in tooling, you’ve found it! Amana Tool®'s PCD tipped countersink router bits will cut and trim a wide variety of tough, abrasive materials including composites, laminate, aluminum, and wood. The cutting edge lasts much longer than carbide for extremely long life.
- Excellent for:
- CFRP
- GFRP
- CMC
- Fiberglass
- MMC
- Kevlar®
- Ceramics in the green stage and carbide in the green stage
- Benefits of Diamond Technology
- Harder cutting edge provides higher resistance to wear
- Cut thousands of feet more than carbide without changing tool, saving setup time
- Optimized machine tool efficiency
- Quality of finish is often significantly improved

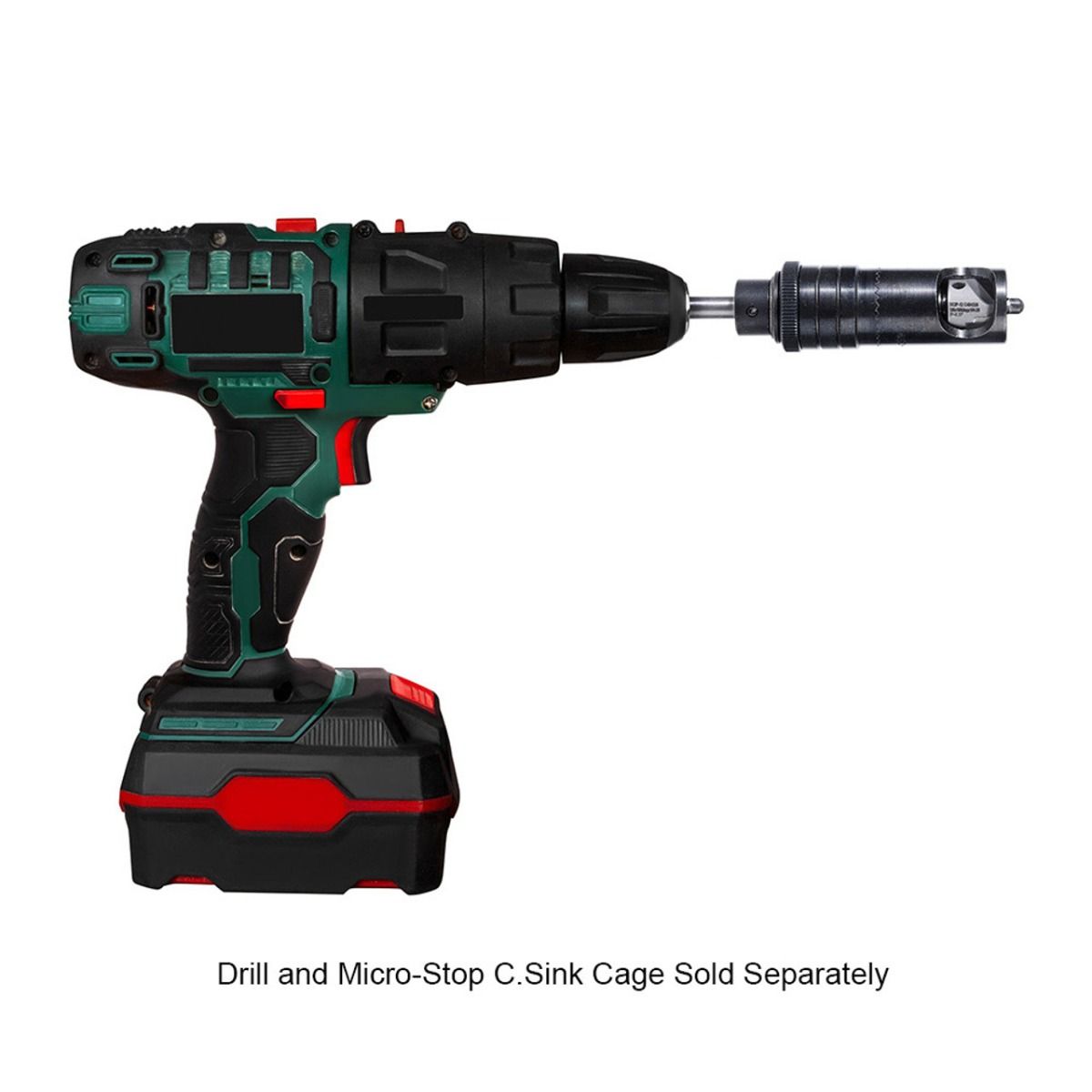

- Note: PCD countersink should be used withMicro-Stop C.Sink Cage 5/8-1/4 UNF Shaft (Sold Separately)
| Angle degree | 100° |
|---|---|
| Cutting Diameter | 5/8 |
| Shank | 1/4-28 NF |
| Overall Length | 1-1/4 |
