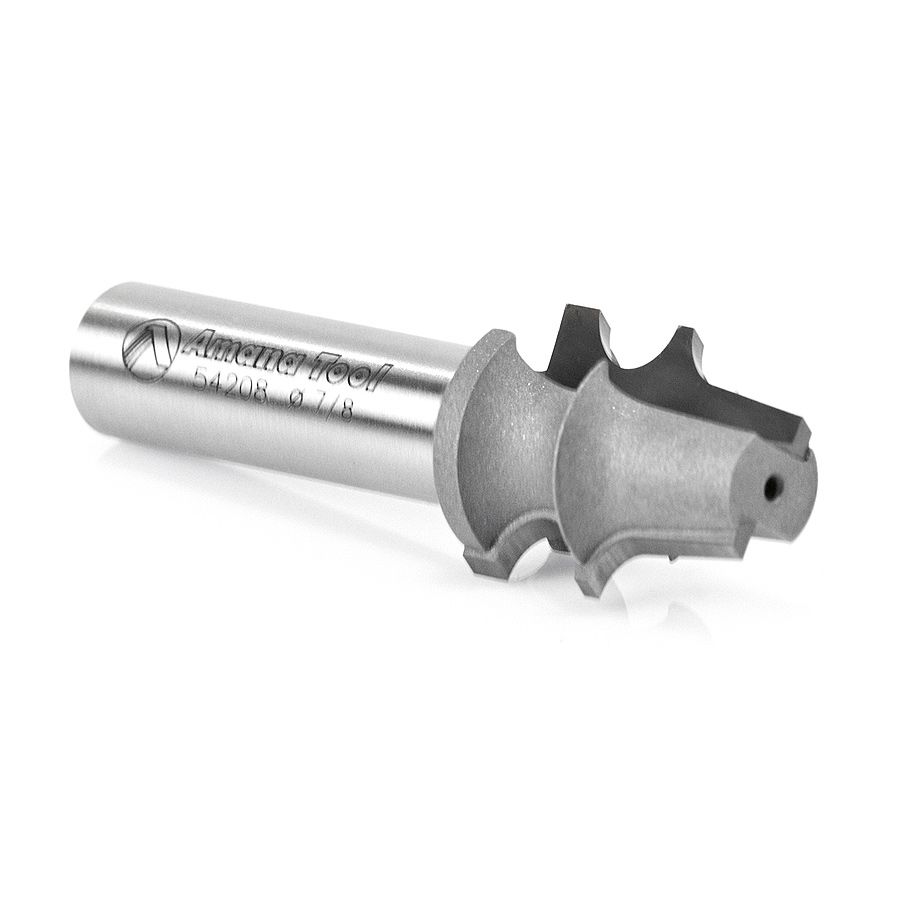

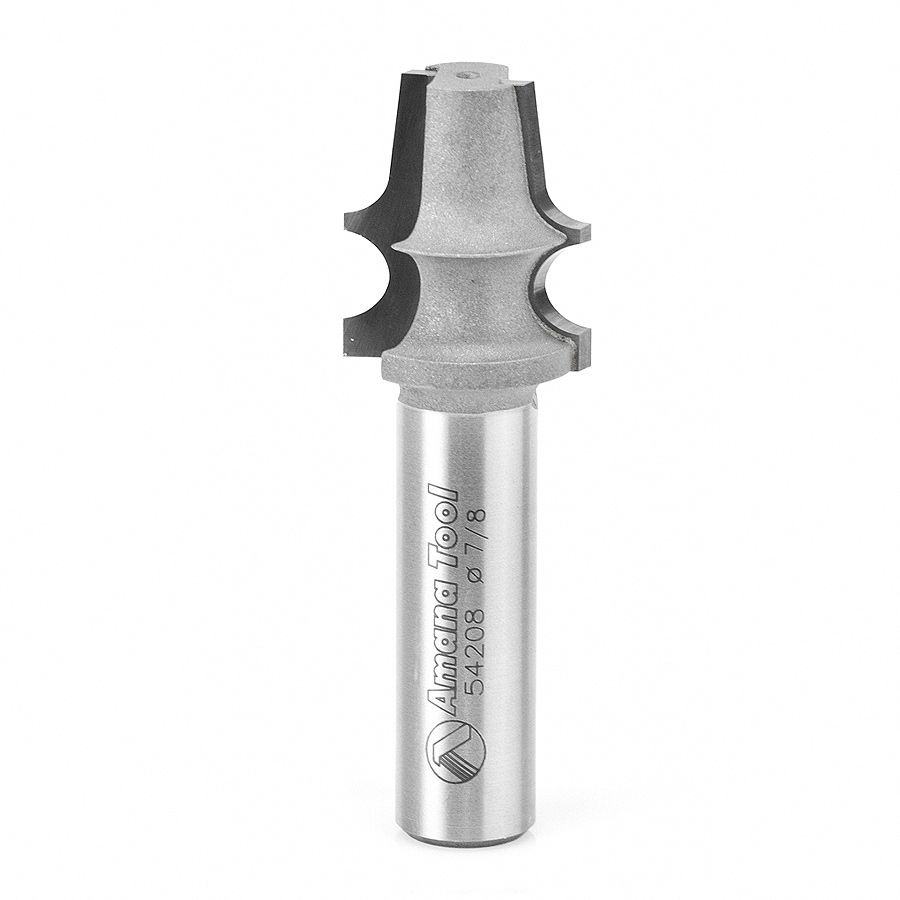

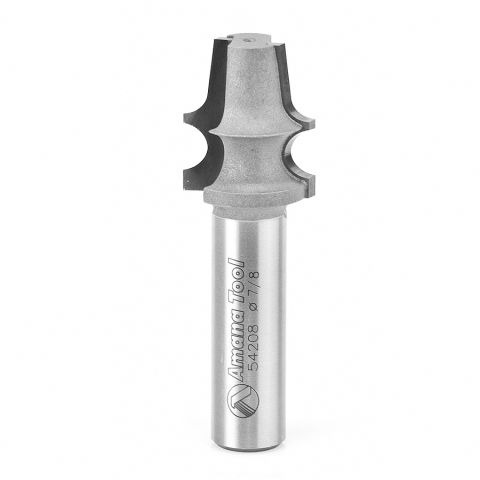

Amana Tool 54208 Carbide Tipped Edge Beading 5/32 Radius x 7/8 Dia x 1-1/32 x 1/2 Inch Shank
- Similar to the corner bead, but with a radiused, rather than a hard-edged quirk. Since this bit lacks a pilot, it must be used with a fence or edge guide. Use in a handheld or table-mounted router.
- 54208 DXF
- File Size : 513.67 KB
| Radius 1 (R1) | 5/32 |
|---|---|
| Cutting Diameter | 7/8 |
| Shank | 1/2 |
| Cutting Length | 1-1/32 |
| Overall Length | 2-3/4 |
| (d1) | 1/2 |
| Number of Flutes | 2 |
