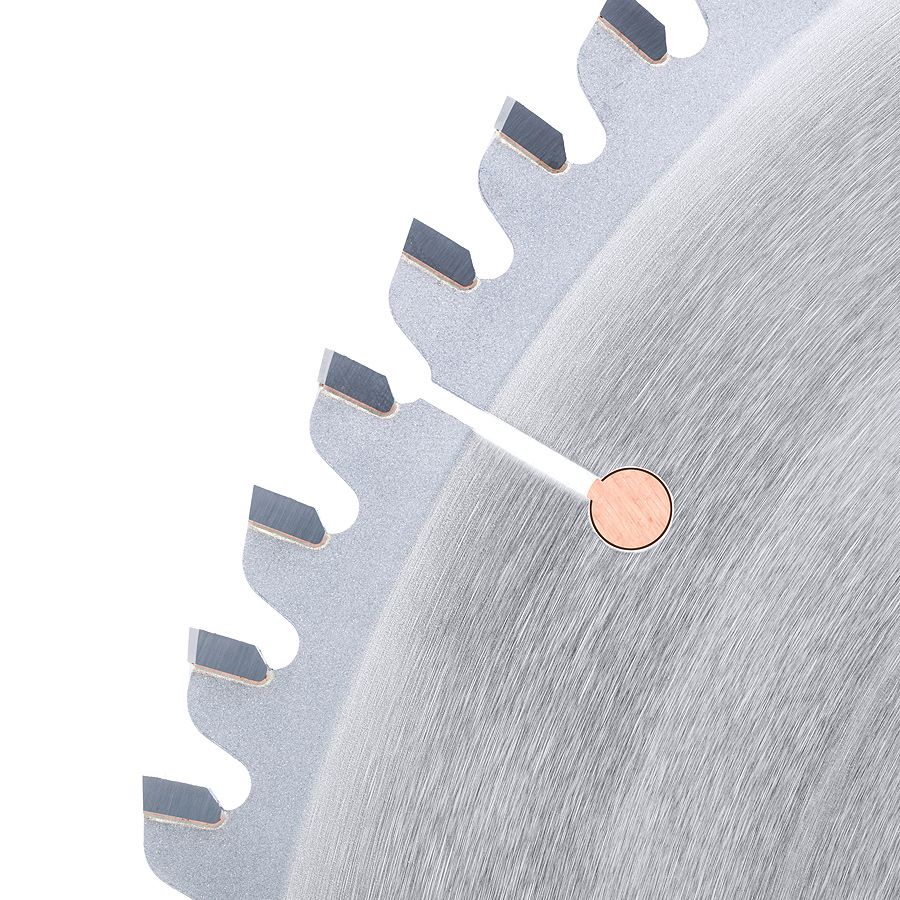

Amana Tool 512721-30 Carbide Tipped Aluminum and Non-Ferrous Metals 12 Inch Dia x 72T TCG, -6 Deg, 30mm Bore
- Thanks to its special carbide formulation and blade geometry, this is the ideal blade for cutting relatively thick-walled aluminum and non-ferrous metal bars such as copper, brass, bronze and lead. It also is good for cutting extrusions and profiles. The negative hook angle (-6°), triple-chip grind and thick plate combine to produce a superior finish. The blade can also be used to cut other “difficult” materials such as plastic, PVC tubing, fiberglass and ACM (Aluminum Composite Material).
- Warning: Never attempt to cut ferrous metals with these blades.
- Clamp down the workpiece.
- For optimal results and extended saw blade sharpness use blade wax, mist lubricant system or air cooling.
- Saw Blade Safety Guidelines
- File Size : 1.55 MB
| Cutting Diameter | 12 (300mm) |
|---|---|
| Pinholes | 2/7/42, 2/9/46 & 2/10/60 |
| Saw Plate | .102 (2.6mm) |
| saw grind | TCG |
| Bore | 30mm |
| saw blade type | 33 |
| Array | .126 (3.2mm) |
