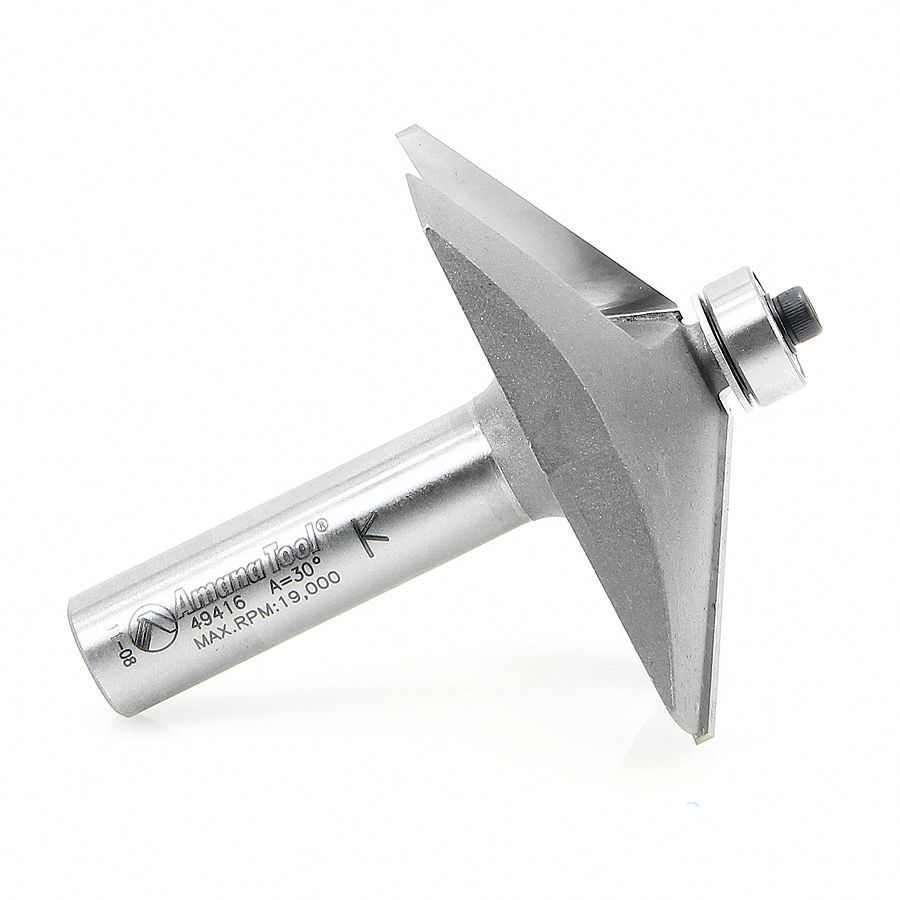

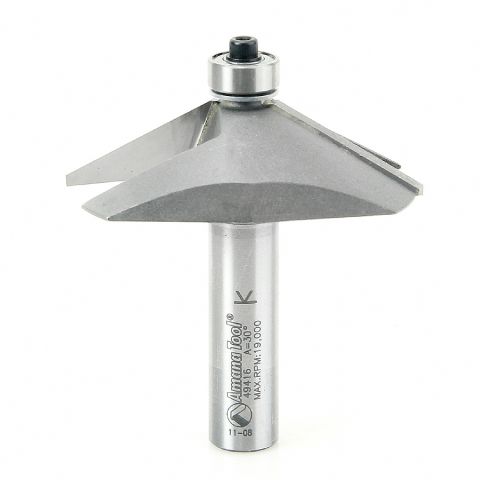

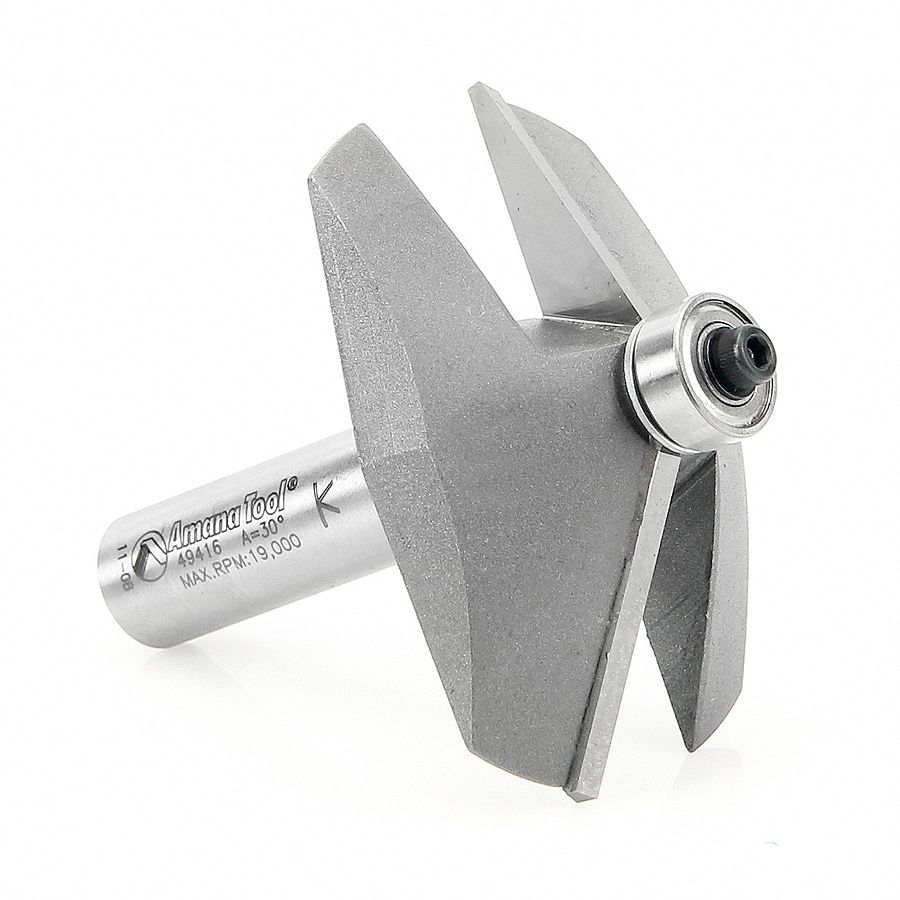

Amana Tool 49416 Carbide Tipped Chamfer 60 Degree x 2-1/2 Dia x 5/8 x 1/2 Inch Shank
- Chamfer or bevel edges for decorative effect or to form edge miter joints. Produce crisp, uniform edges at accurate angles to make 4-, 6-, 8-, 12-, or 16-sided boxes. For best results use in a router table.
- Use in a table-mounted router. Not for use in a handheld router!
- Maximum RPM 16,000.
- Excellent for cutting:
- Acrylic
- Laminate
- MDF/HDF
- Melamine
- Wood
- Plywood
- Tool No.
- Bearing(s)
- Screw
- Dust Shield
- Flat Washer
- 49416
- 47706
- 67096
- 67098
- 67202
- 49416 DXF
- File Size : 610.23 KB
| Replacements | 47706 |
|---|---|
| Cutting Diameter | 2-1/2 |
| Shank | 1/2 |
| Cutting Length | 5/8 |
| Overall Length | 2-63/64 |
| Number of Flutes | 2 |
| a° | 60° |
| (C) | 1-5/32 |
