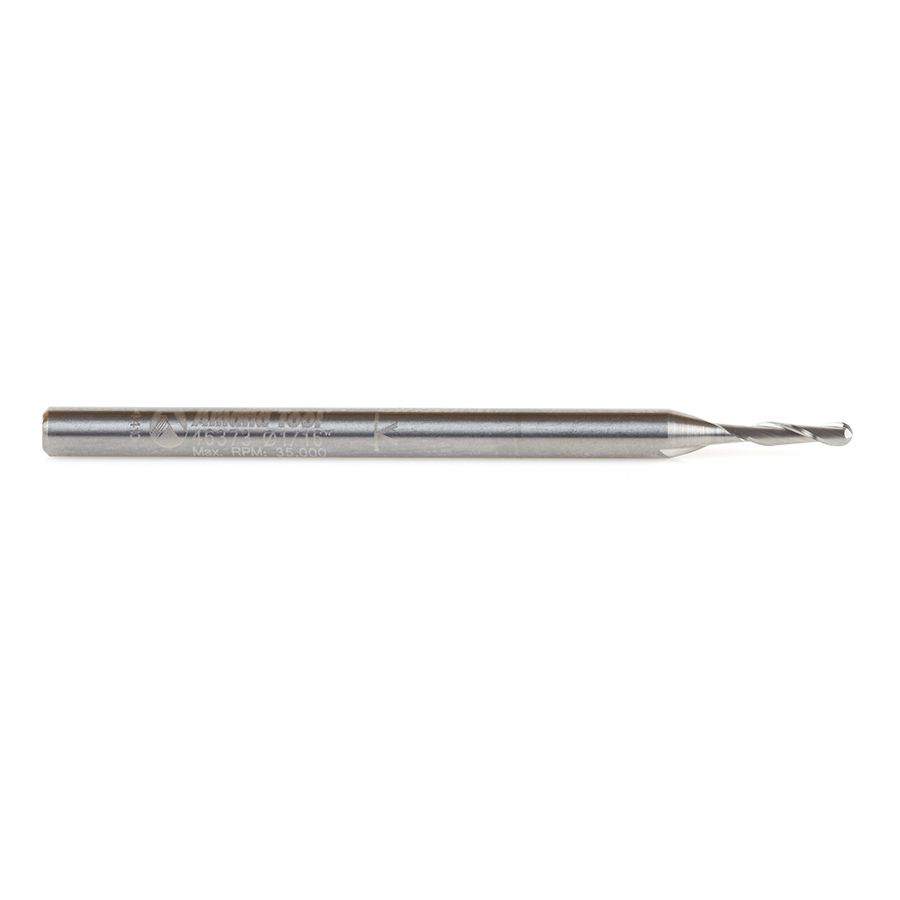

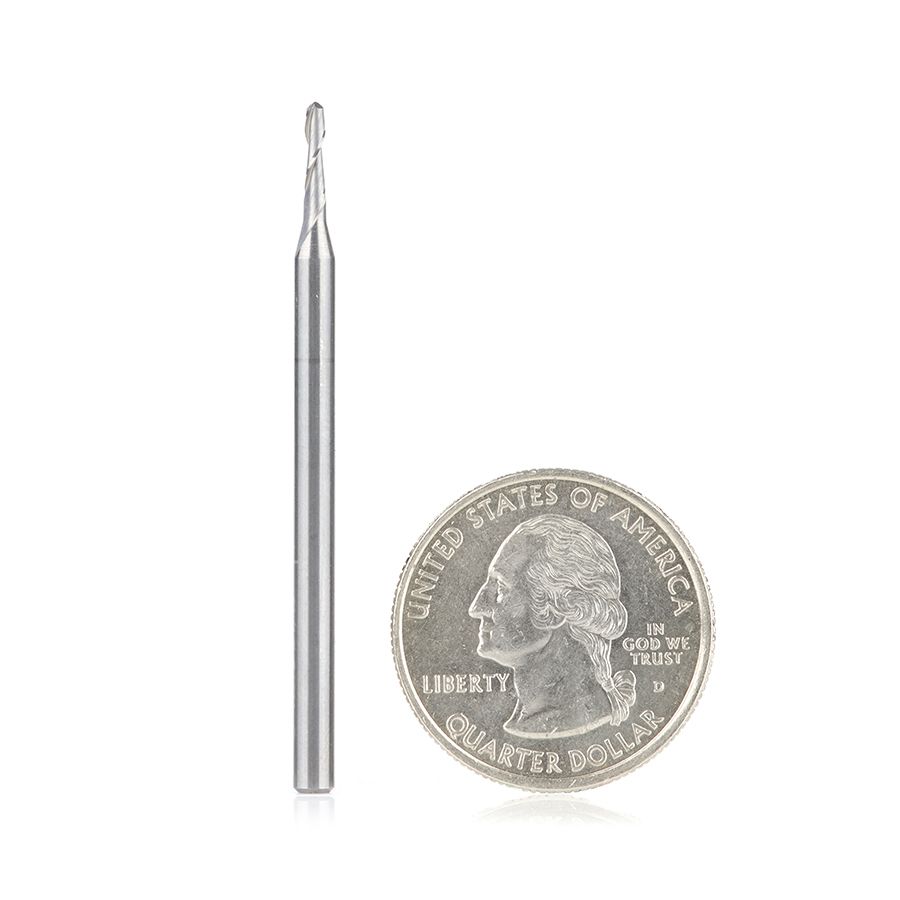

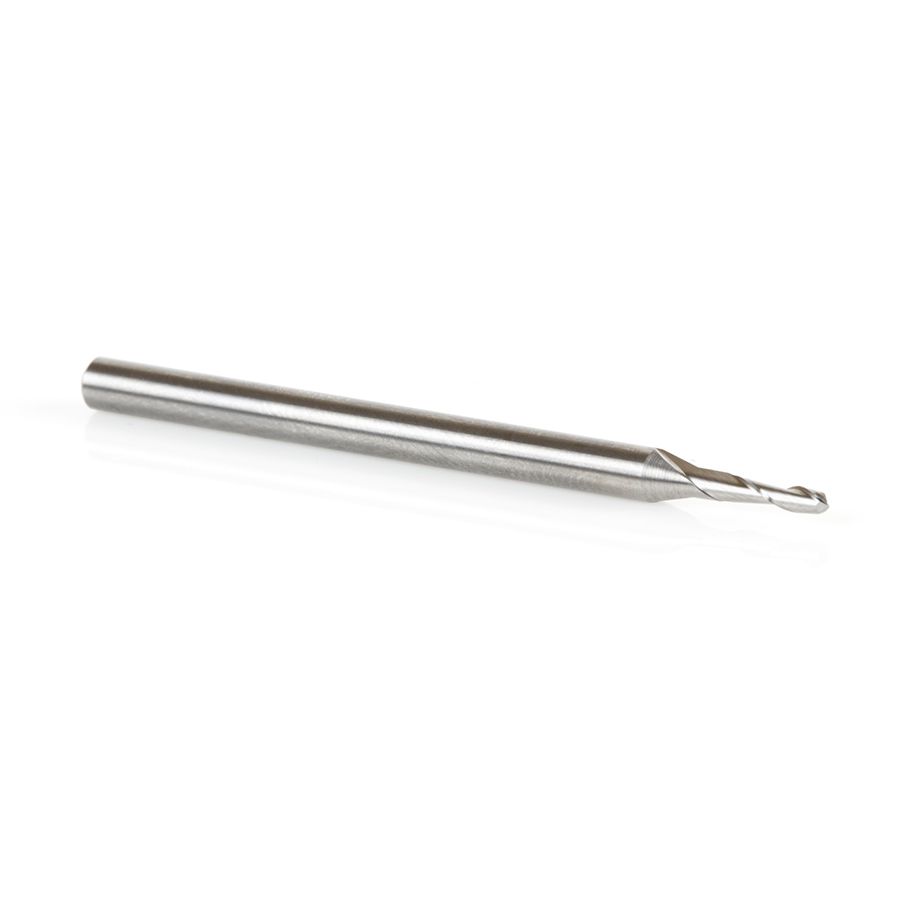

Amana Tool 46373 Solid Carbide Up-Cut Ball Nose Spiral 1/16 Dia x 1/4 Inch x 1/8 Shank Router Bit
- Used for carving decorative doors and sign manufacturing. Up-Cut design leaves an excellent finish and expels chips quickly.
- Excellent for Cutting:
- Soft/Hard Wood
- Aluminum
- MDF
- Soft/Hard Plastic
- Sign Foam
- Router collet reducer RB-102 (1/4 to 1/8) available for 1/8 shank bits.
- Vectric and Fusion 360 compatible tool files for 46373 available for download, click here.
- 46373 DXF
- File Size : 404.11 KB
| Radius 1 (R1) | 1/32 |
|---|---|
| Cutting Diameter | 1/16 |
| Shank | 1/8 |
| Cutting Length | 1/4 |
| Overall Length | 2 |
| Number of Flutes | 2 |
