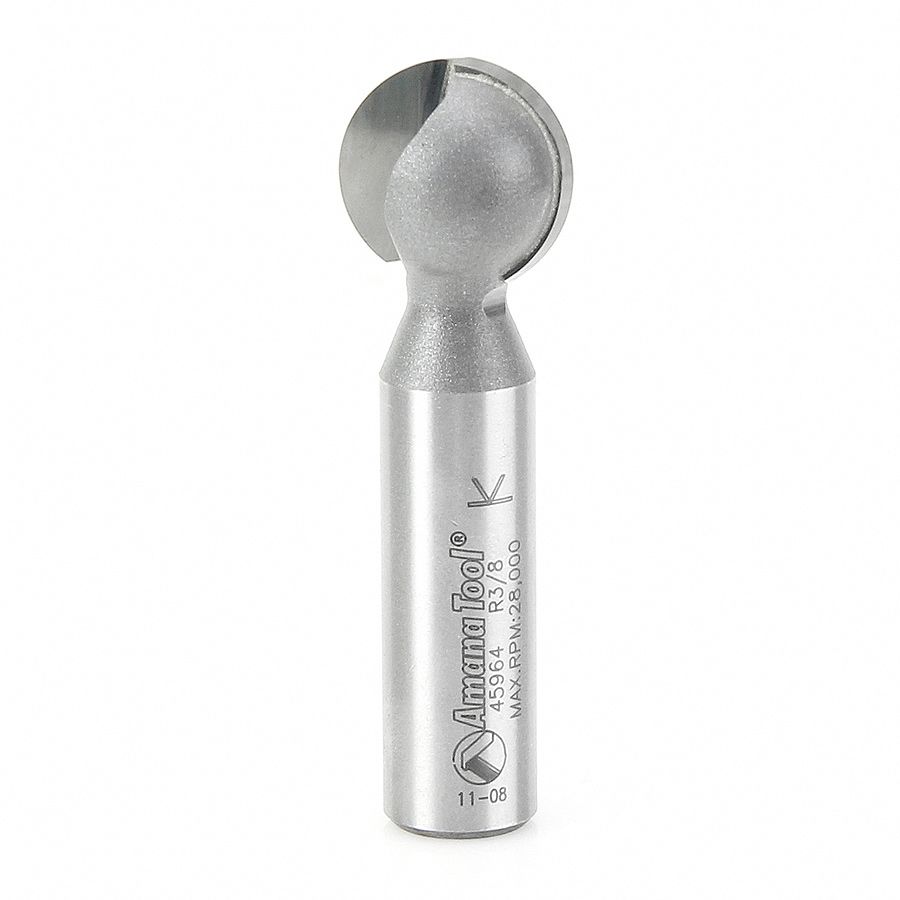

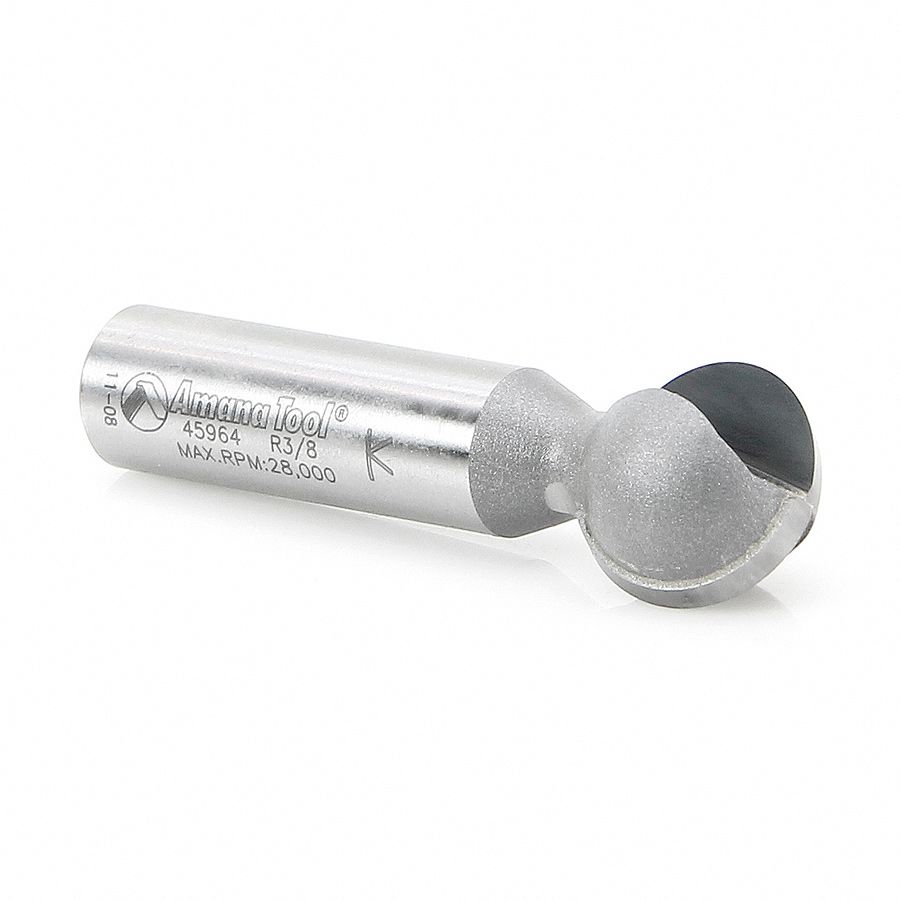

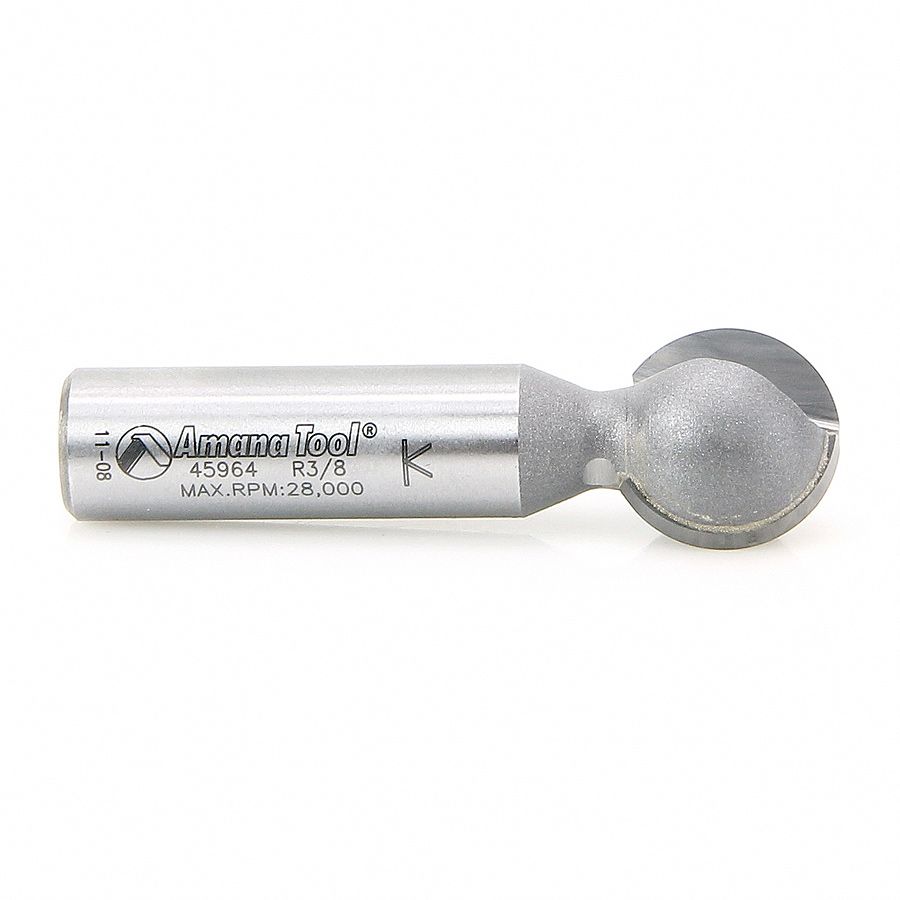

Amana Tool 45964 Carbide Tipped Ball End 3/8 Radius x 11/16 Dia x 1/2 x 1/2 Inch Shank
- Cut channels for pipes or cables using the ball end bit. The profile requires the cut to be made in a single pass. To reduce stress on the bit, cut an initial groove using a straight bit matching the D1 dimension of the ball end bit.
- Note: Profile is useful as a ‘conduit’ for cables, pipes, etc.
- Vectric compatible tool file for 45964 available for download, click here.
| Radius 1 (R1) | 3/8 |
|---|---|
| Cutting Diameter | 3/4 |
| Shank | 1/2 |
| Cutting Length | 11/16 |
| Overall Length | 2-1/2 |
| (d1) | 5/16 |
| Number of Flutes | 2 |
