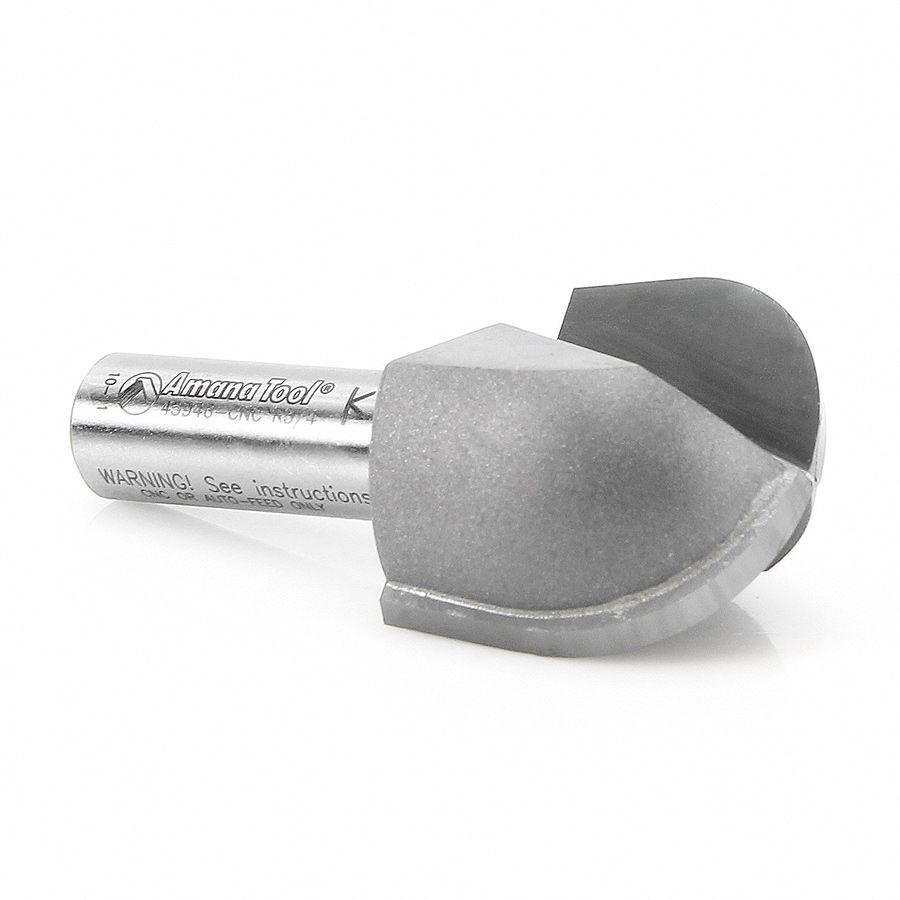

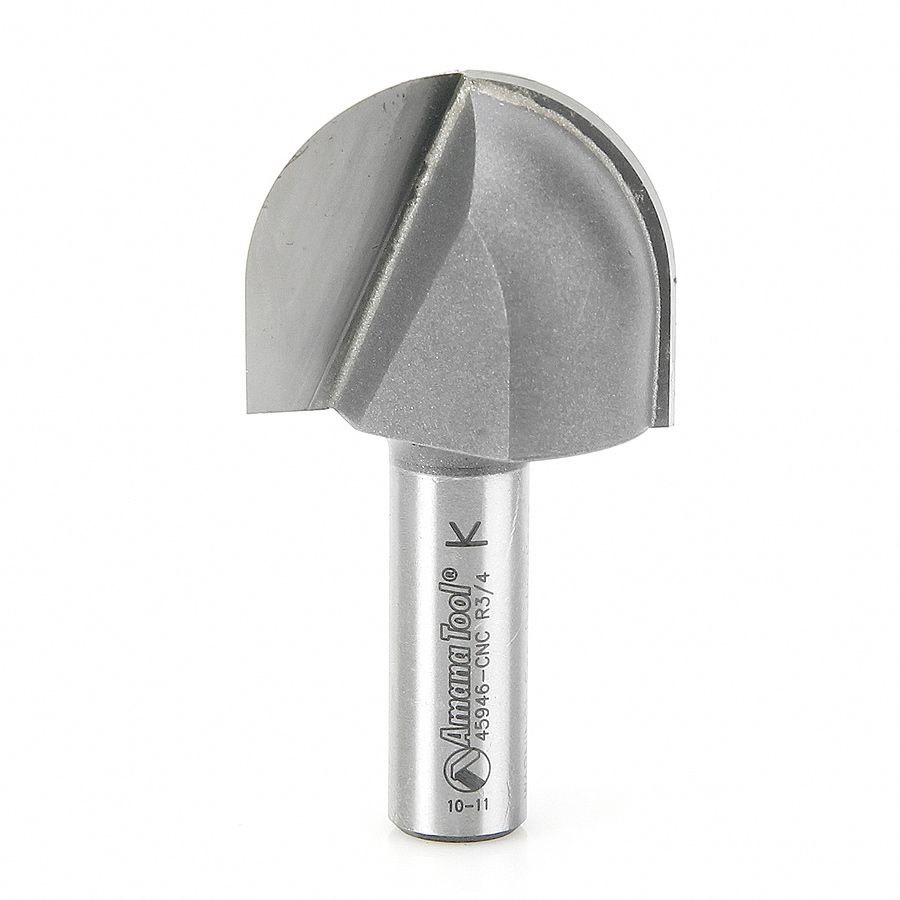

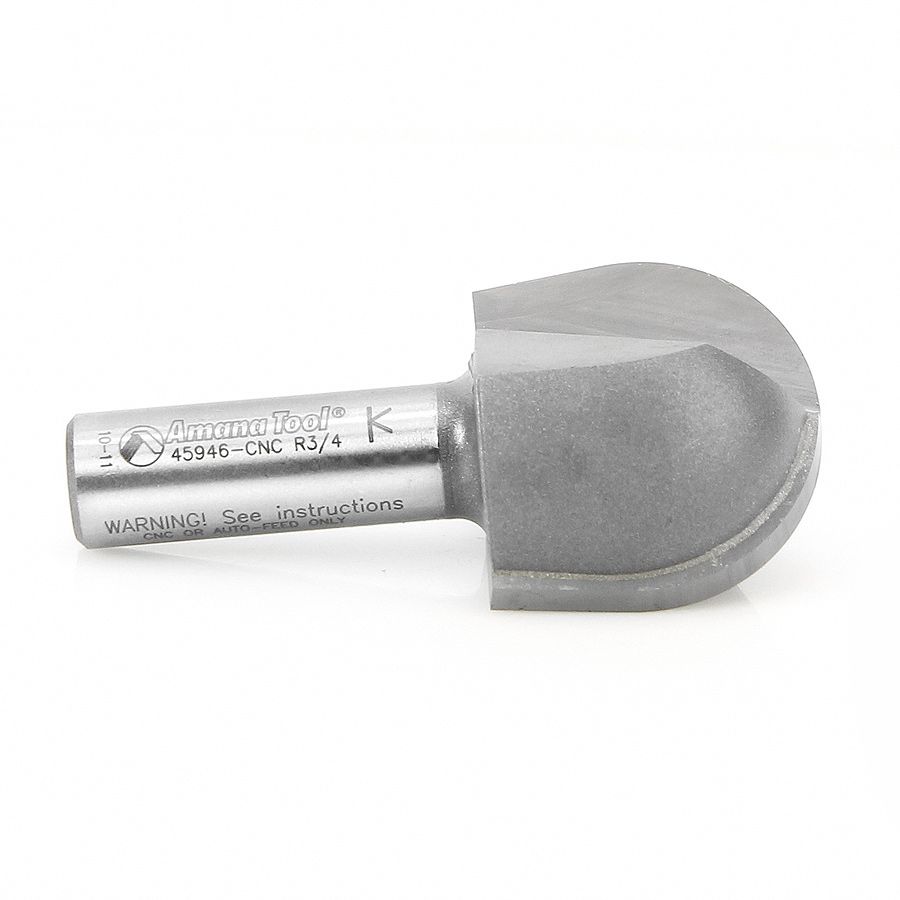

Amana Tool 45946-CNC Carbide Tipped Core Box 3/4 Radius x 1-1/2 Dia x 1-1/4 x 1/2 Inch Shank CNC
- Cut half-round grooves for fluted moldings columns millwork and signs using a core box bit. Used with an edge guide it can cut coves. Perfect for making flutes on CNC machines.
- Excellent for cutting:
- High Density Urethane (HDU Board)
- Laminate
- MDF
- Softwood/Hardwood
- Veneered Plywood
- Maximum RPM 18 000.
- These tools have an open flute design (not anti-kickback) and are intended for high feed-rate CNC machine use only.
- Do not use in portable routers.
| Radius 1 (R1) | 3/4 |
|---|---|
| Cutting Diameter | 1-1/2 |
| Shank | 1/2 |
| Cutting Length | 1-1/4 |
| Overall Length | 2-3/4 |
| Number of Flutes | 2 |
