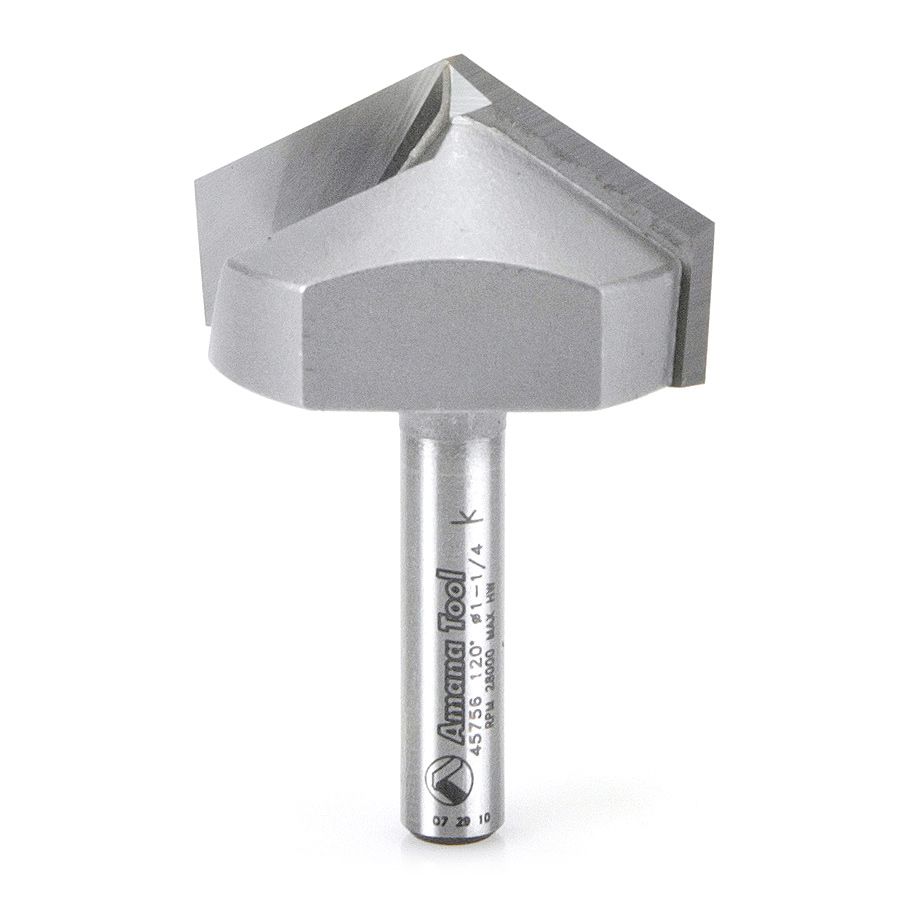

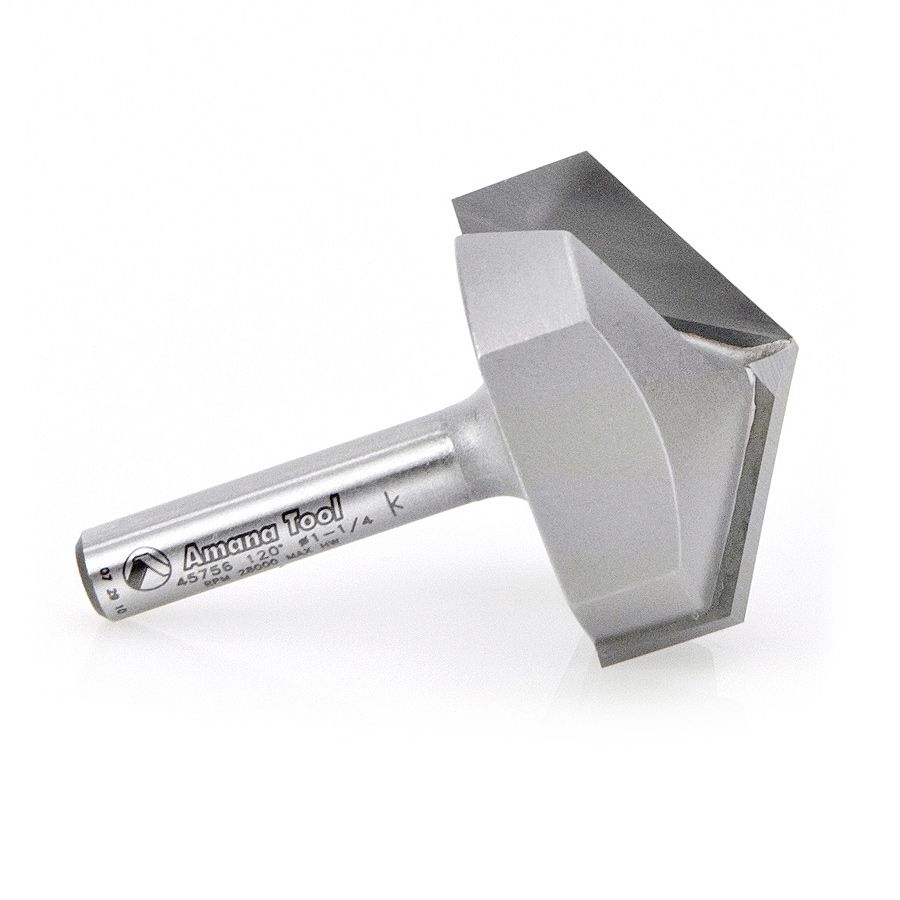

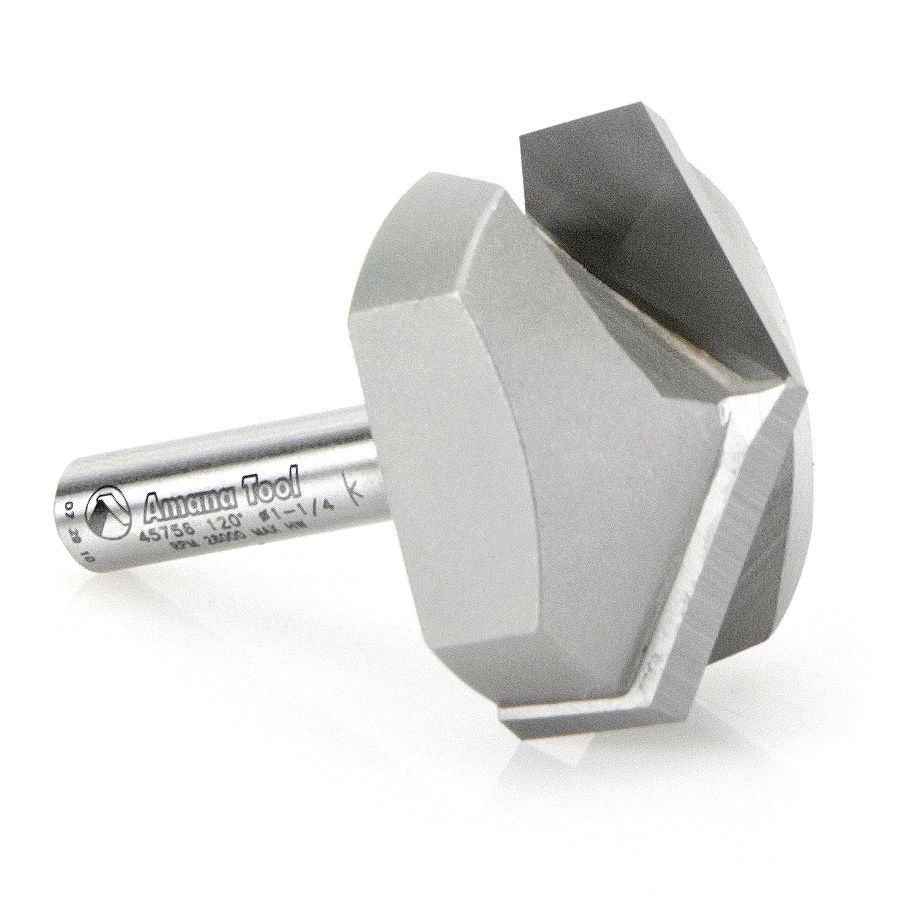

Amana Tool 45756 Carbide Tipped V-Groove 120 Deg x 1-1/4 Dia x 23/64 x 1/4 Inch Shank
- Cut decorative V-Grooves and lettering on signs with these V-Groove bits. Use with an edge guide to chamfer and bevel edges. Can be used with handheld, table-mounted and CNC routers.
- Excellent for cutting:
- 20lbs High Density Urethane
- Acrylic
- Composites
- Composite Decking
- Foam
- Laminate
- MDF/HDF
- Melamine
- Plywood
- PVC Plastic
- Sign Board
- Solid Surface
- Veneered Plywood
- Wood
- Xanita® Board
- Vectric and Fusion 360 compatible tool files for 45756 available for download, click here.
- 45756 DXF
- File Size : 1.65 MB
| Cutting Diameter | 1-1/4 |
|---|---|
| Shank | 1/4 |
| Cutting Length | 23/64 |
| Overall Length | 1-59/64 |
| Number of Flutes | 2 |
| a° | 120° |
| (B1) | 21/32 |
