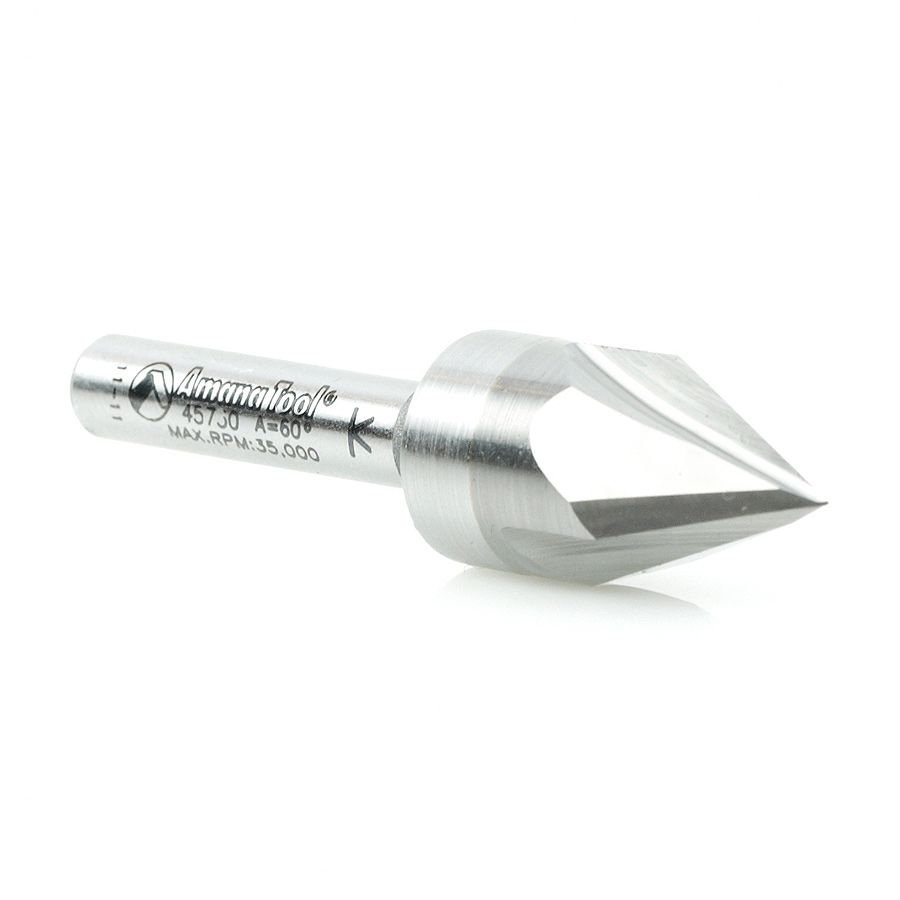

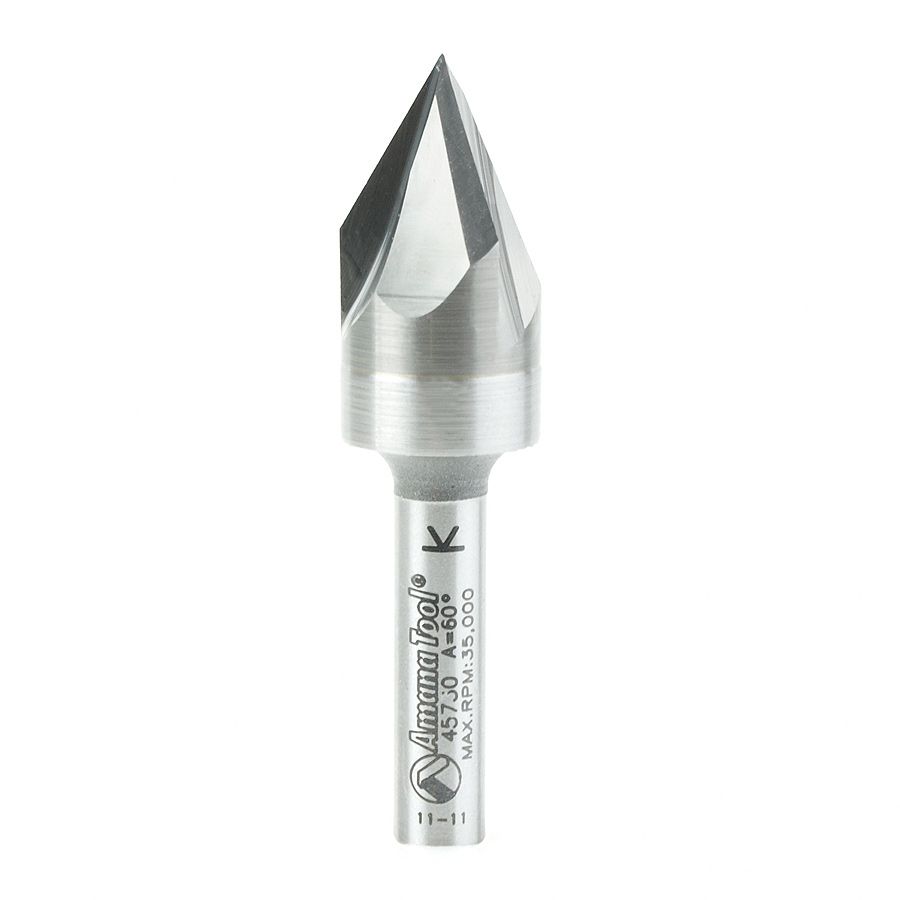

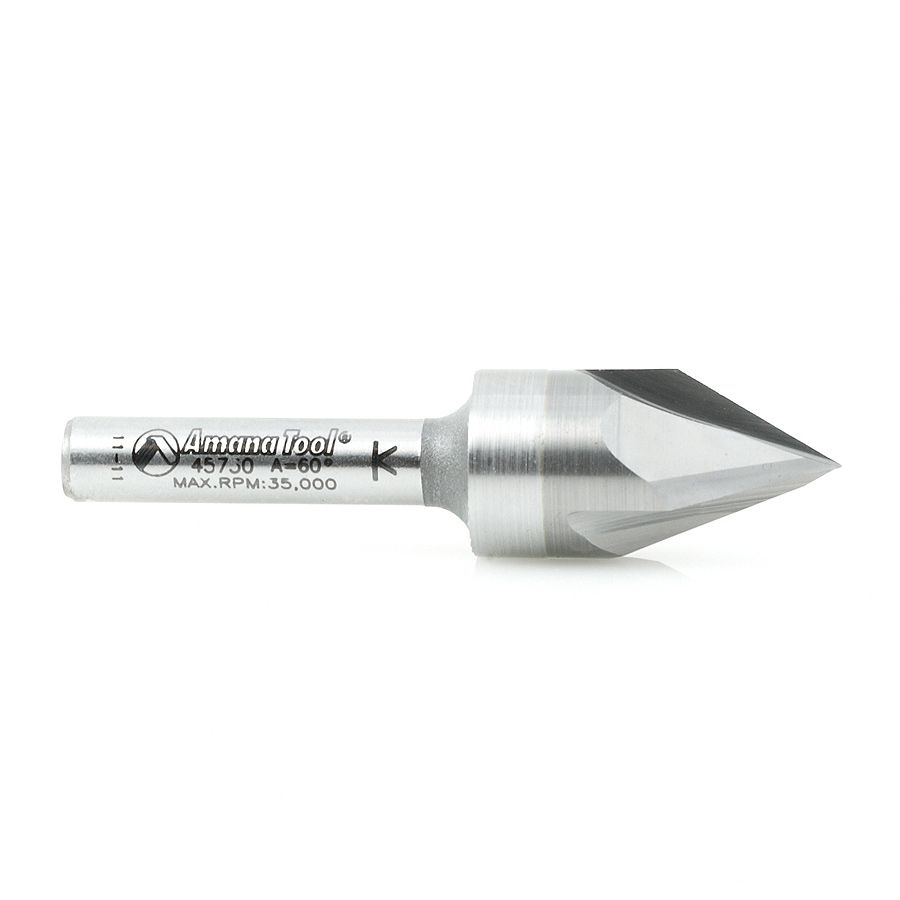

Amana Tool 45730 Solid Carbide Cutting Head Brazed to Steel Shank V-Groove Signmaking & Lettering 60 Deg x 9/16 Dia x 7/16 x 1/4 Inch Shank
- Originally developed in Europe specifically for professional signmakers, this solid-carbide cutting head brazed to steel shank bit features an extra-fine 60° point that produces a clean, precise cut. For those intricate lines, this bit is superior to standard 'V' groover. Makes crisp, clean cuts in solid woods, MDF and acrylics.
- Vectric compatible tool file for 45730 available for download, click here.
- 45730 DXF
- File Size : 313.84 KB
| Cutting Diameter | 9/16 |
|---|---|
| Shank | 1/4 |
| Cutting Length | 7/16 |
| Overall Length | 2-1/4 |
| Number of Flutes | 3 |
| a° | 60° |
| (B1) | 1/2 |
