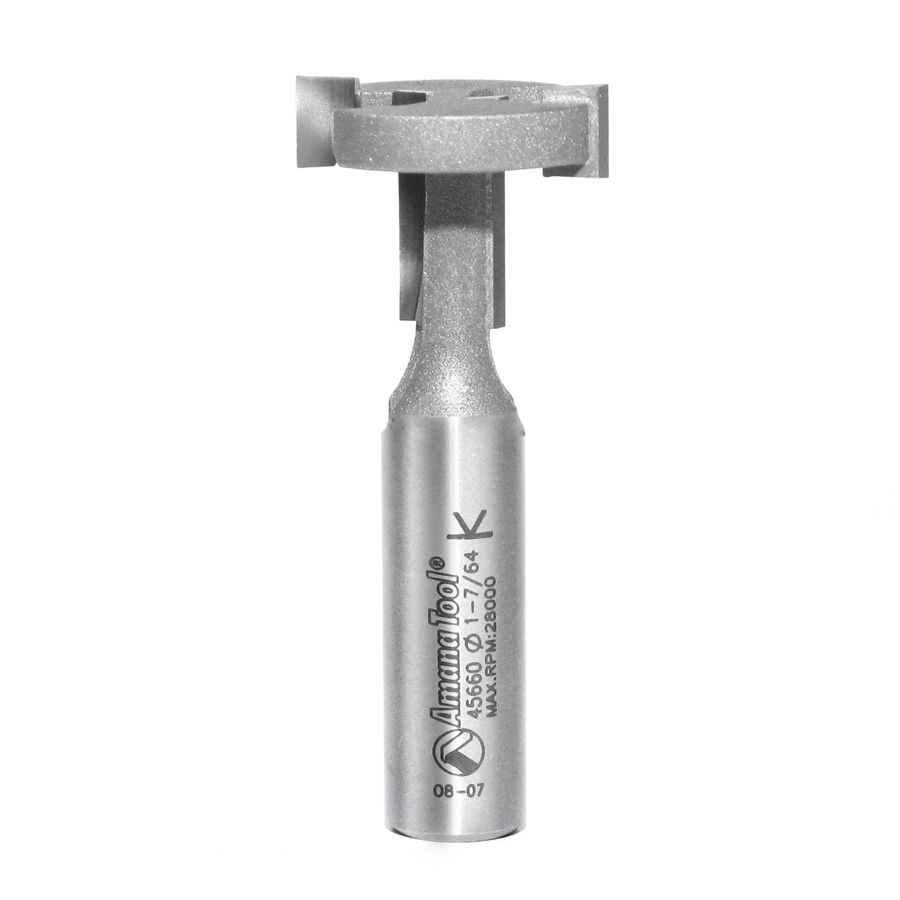

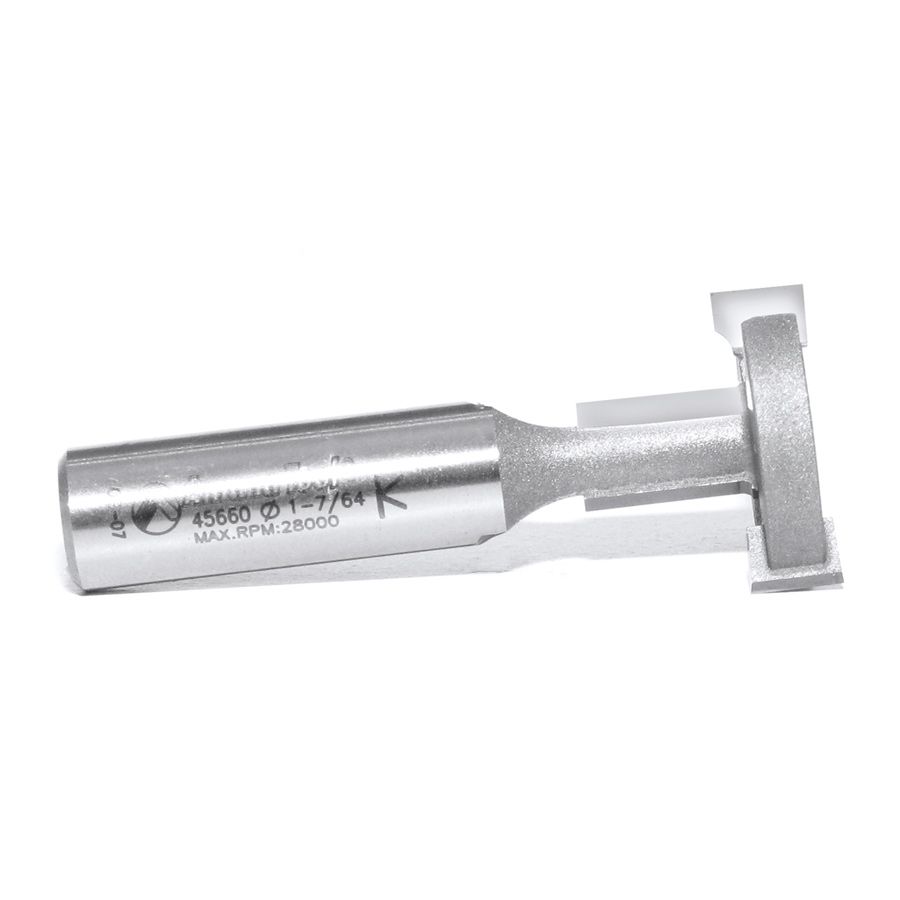

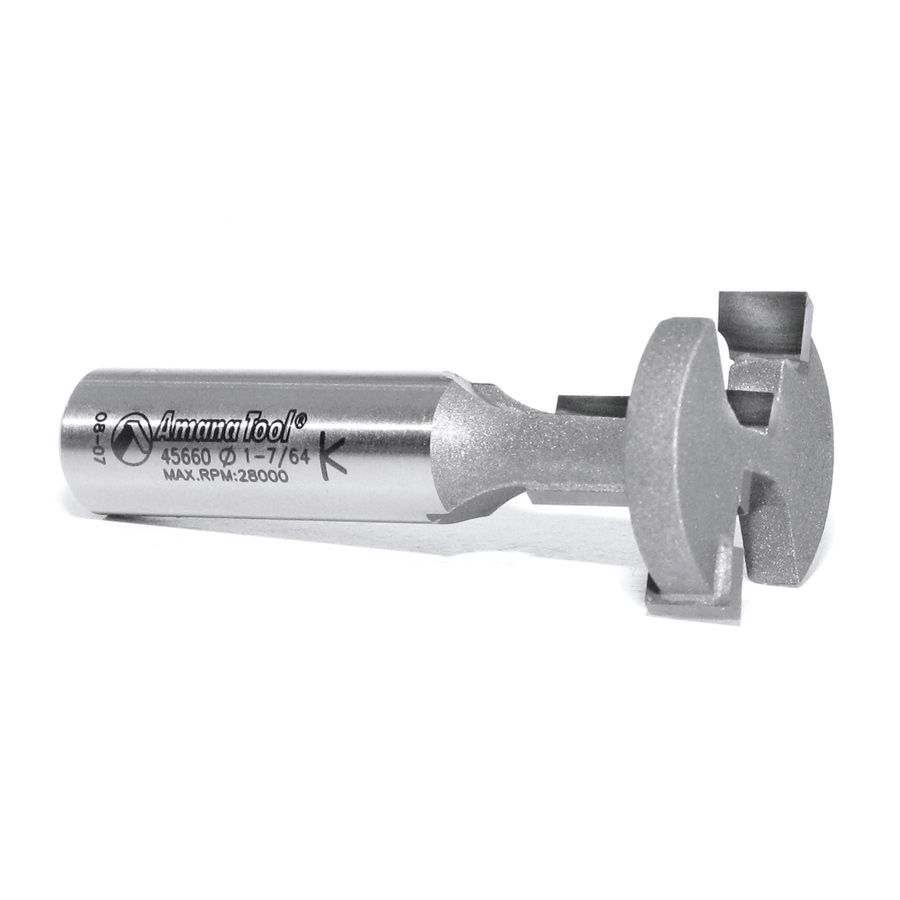

Amana Tool 45660 T-Slot Square Edge 1-1/8 Dia x 13/16 x 1/2 Inch Shank
- Designed for creating T-slot wall panels (used to cut their characteristic slots for many purposes) and radiused edges on the T-slots (allow easier adjustment of fixtures on the completed wall panels). For best results use in CNC and table-mounted routers.
- Note: These tools are designed for ‘groove-forming’ T-slot wall panels, they are not designed for plunging operations.
- Fusion 360 compatible tool file for 45660 available for download, click here.
- 45660 DXF
- File Size : 453.4 KB
| Cutting Diameter | 1-1/8 |
|---|---|
| Shank | 1/2 |
| Cutting Length | 13/16 |
| Overall Length | 2-1/2 |
| (d1) | 3/8 |
| Number of Flutes | 2 |
| (B1) | 5/16 |
