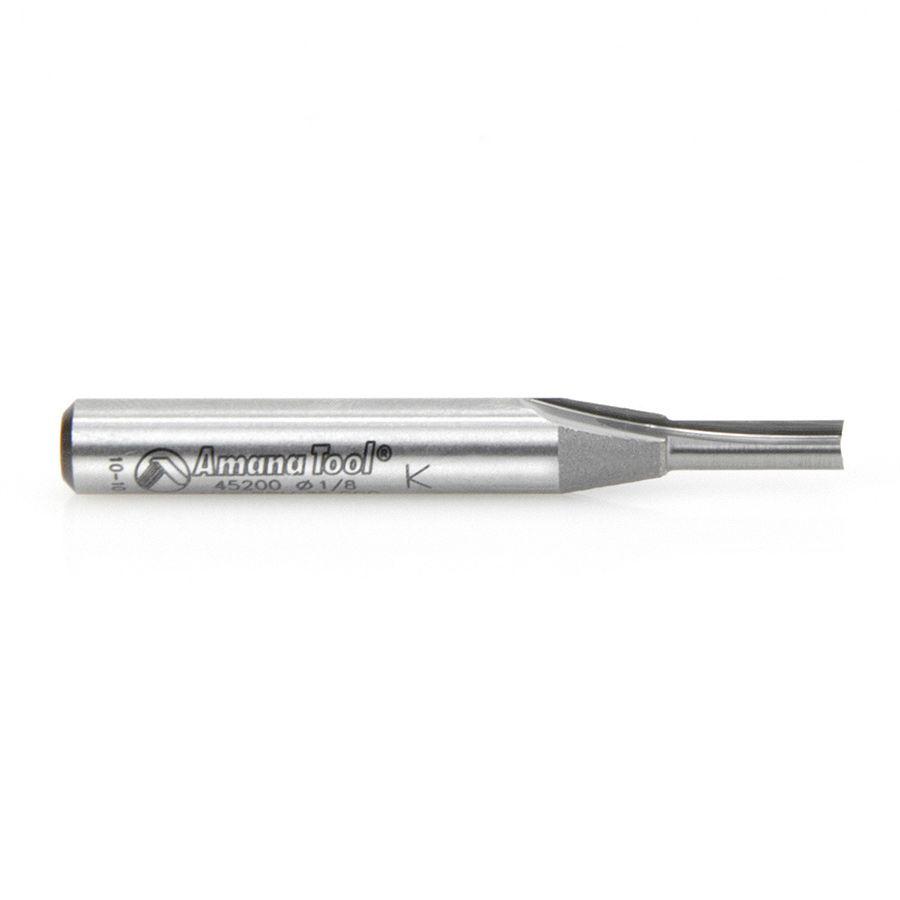

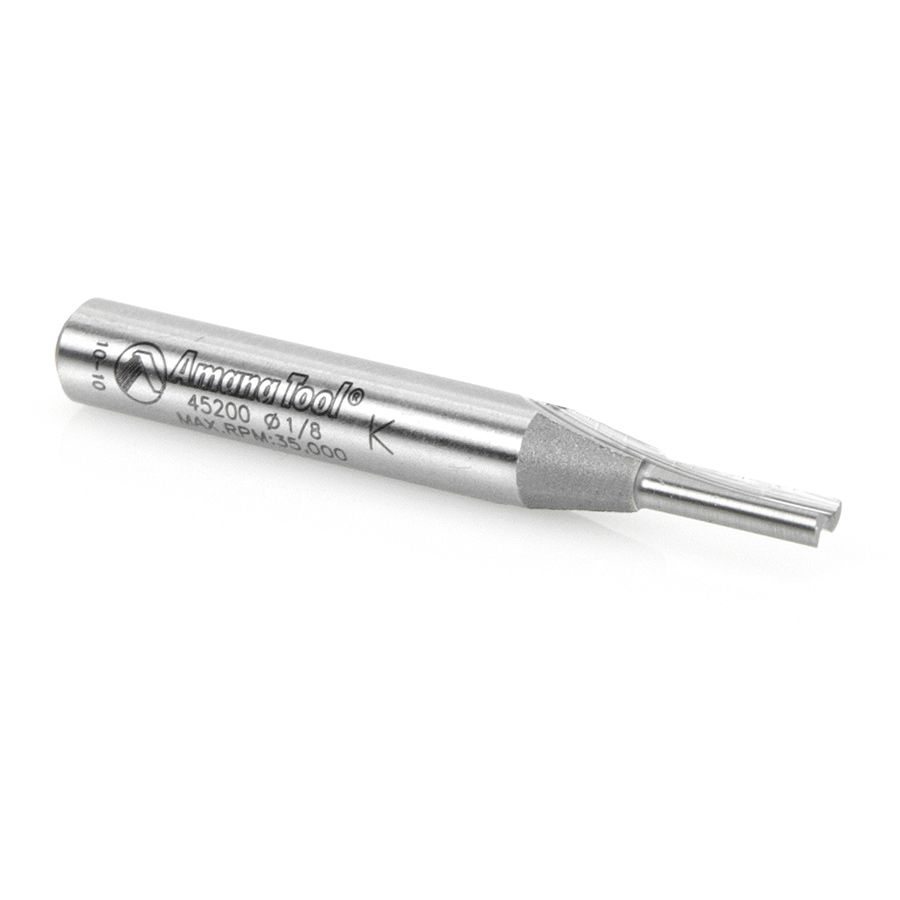

Amana Tool 45200 Solid Carbide Cutting Edge Straight Plunge High Production 1/8 Dia x 7/16 x 1/4 Inch Shank
- Use a two-flute bit where fine finish is paramount. Two flutes balance the bit, eliminating vibration that degrades the cut finish. Two cuts per revolution yield a smooth surface, but feed rate is slightly reduced. 45200 features a solid carbide cutting edge.
- Perfect for CNC work.
- Solid carbide (brazed to steel shank).
- Excellent for Cutting:
- Wood
- MDF
- Plywood
- AMAX Extended Life Features:
- 200% longer life time even when working with abrasive materials
- Superior geometric design
- Advanced grinding technology that improves the carbides' resistance to wear
- Super clean cuts
- Not guaranteed due to extremely small diameter.
- Fusion 360 compatible tool file for 45200 available for download, click here.
- Solid Carbide Cutting Edge and Carbide Tipped Straight Plunge Speed and Feed Chart
- Carbide-Tipped-Straight-Plunge-Speed-Chart
| Cutting Diameter | 1/8 |
|---|---|
| Shank | 1/4 |
| Cutting Length | 7/16 |
| Overall Length | 2 |
| Number of Flutes | 2 |
