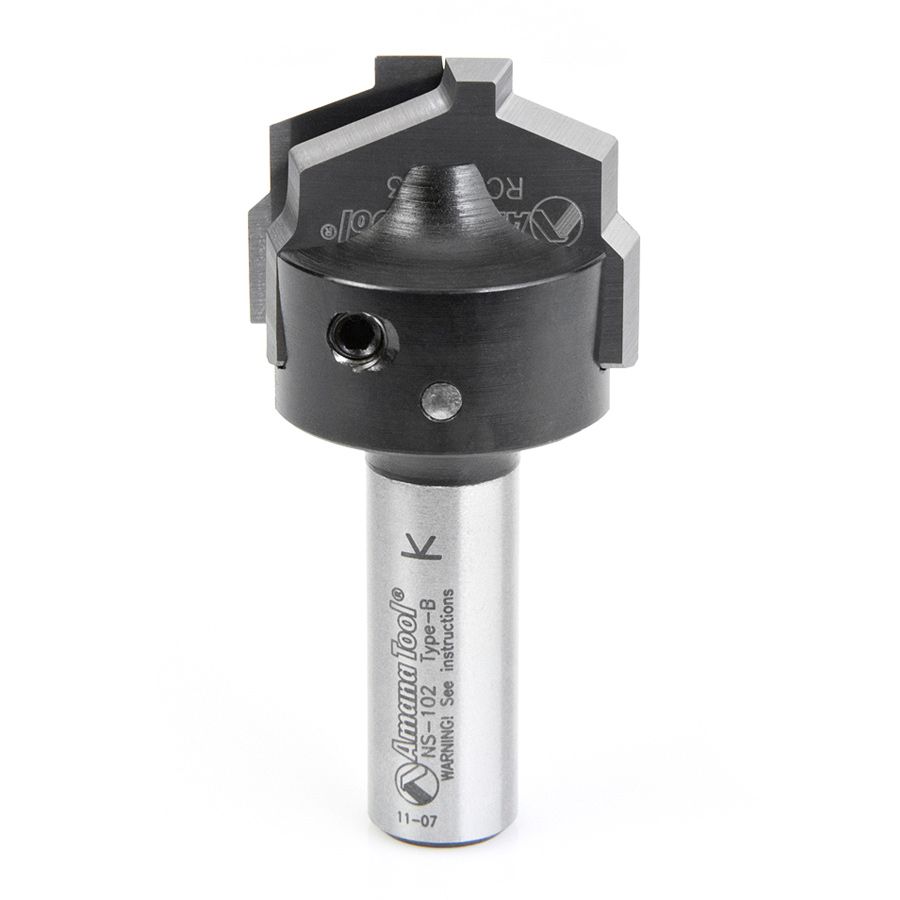

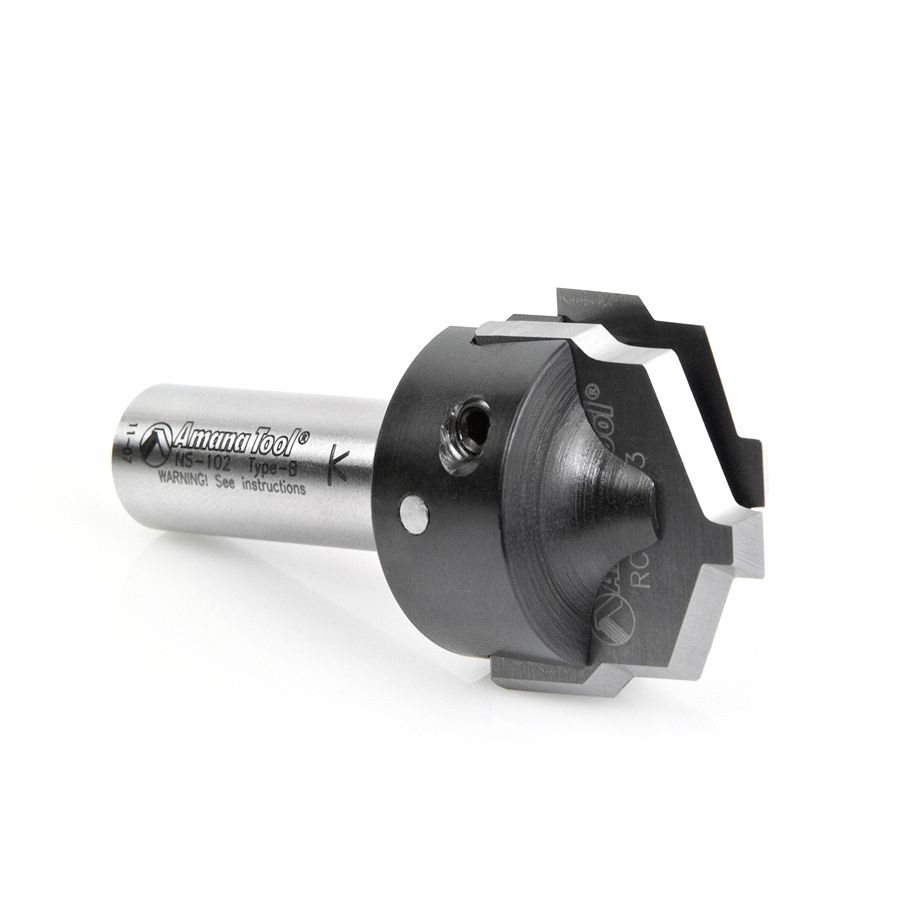

Amana Tool RC-2483 CNC Insert Nova System Traditional Plunge Form for MDF & Wood Cabinet Doors 1-3/8 Dia x 25/64 x 1/2 Inch Shank
- This series of profiles utilizing our Nova™ Tool body system of interchangeable carbide insert knives are designed to give the appearance of a Raised Panel door in MDF or solid panels.
- One pass is all that is needed for a simple raised panel look using one of the “Plunge Form” profiles.
- Replacement knives are MDF Grade Carbide and will last much longer than standard brazed carbide tipped bits.
- Excellent For:
- MDF
- Wood
- Tool Body
- T.C Knife (2)
- NS-102
- RCK-483
- RC-2483-RCK-483 DXF
- File Size : 457.88 KB
| Cutting Diameter | 1-3/32 |
|---|---|
| Shank | 1/2 |
| Cutting Length | 7/16 |
| Overall Length | 2-5/8 |
| (d1) | 7/16 |
| Angle degree | 22° |
| (B1) | 7/64 |
