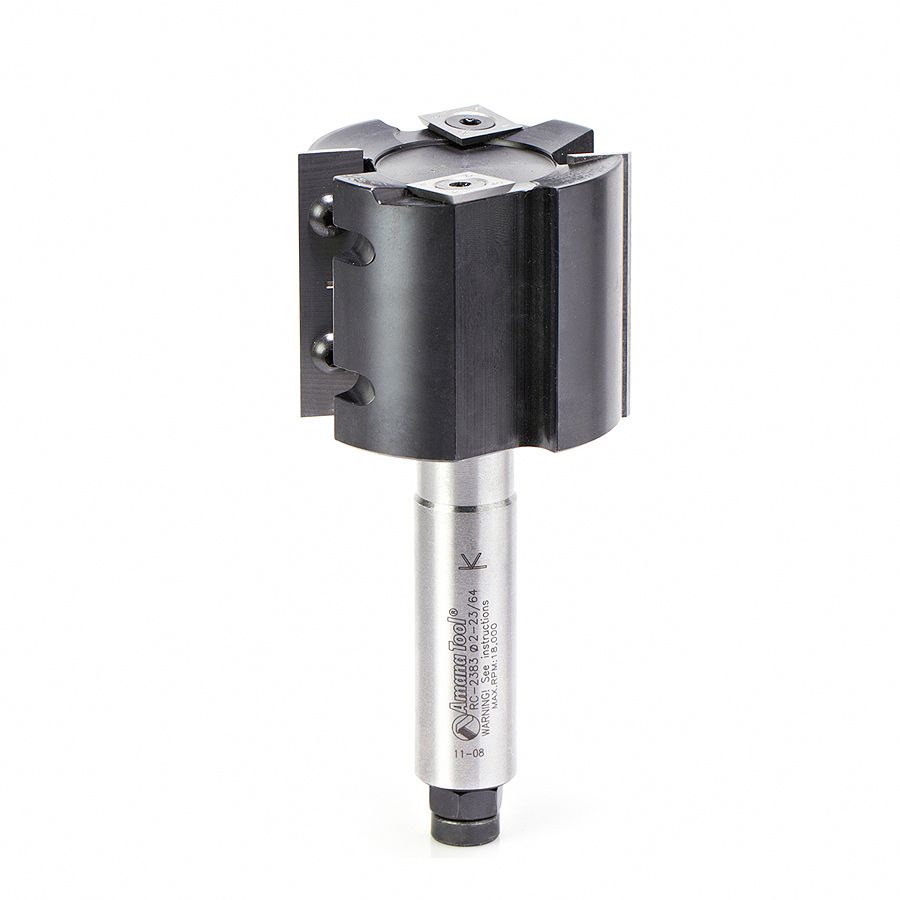

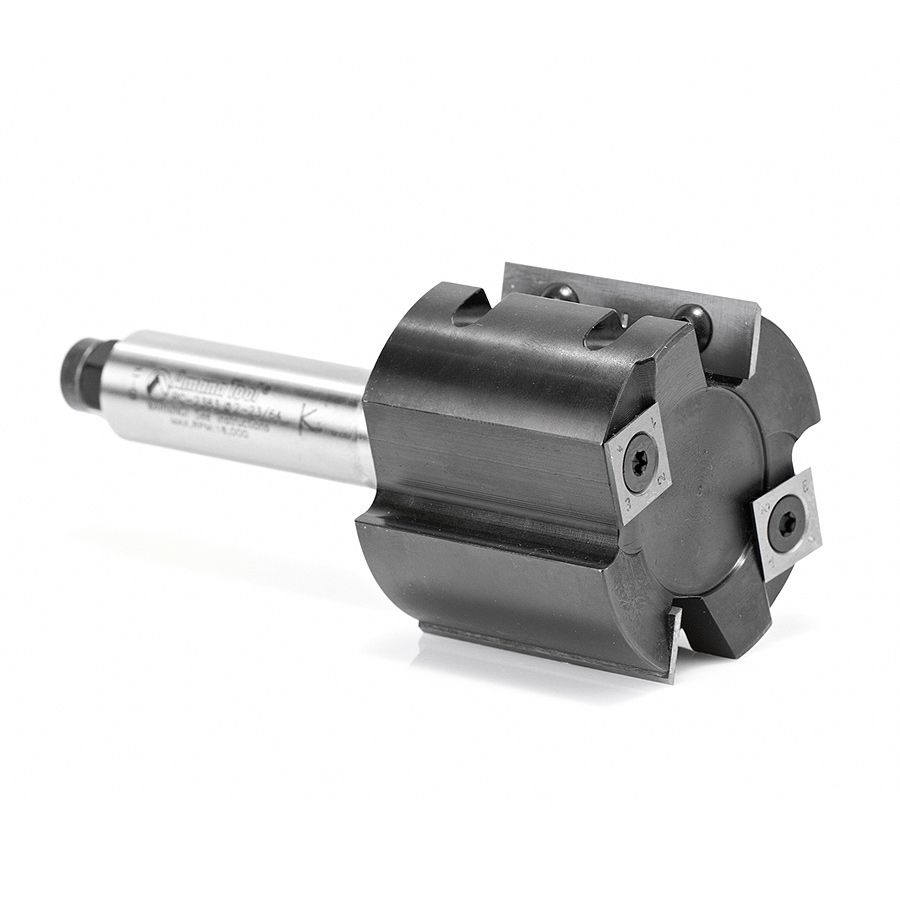

Amana Tool RC-2383 CNC Insert Straight Rabbeting 2+2 Design x 2-3/8 Dia x 2 Inch x 3/4 Shank
- Insert rabbeting router bit complete with two cutting flutes and scorer. Suitable for trimming and rabbeting in softwood, hardwood and man-made boards. Scorer will give an improved finish at the bottom of the cut. For use on routers and machining centers with CNC control.
- Fusion 360 compatible tool file for RC-2383 available for download, click here.
- General Purpose Solid Carbide Knives Side | Bottom
- Diamond-Like Carbon (DLC) Solid Wood Solid Carbide Knives Side | Bottom
- Torx Screw for RCK-50 | RCK-70
- Torx Key
- RCK-50
- RCK-70
- RCK-50-DLC
- RCK-70-DLC
- 67139
- 67154
- 5005
- 5015
| Cutting Diameter | 2-3/8 |
|---|---|
| Shank | 3/4 |
| Cutting Length | 2 |
| Overall Length | 4-3/4 |
| Number of Flutes | 2 |
| Maximum RPM | 18000 |
