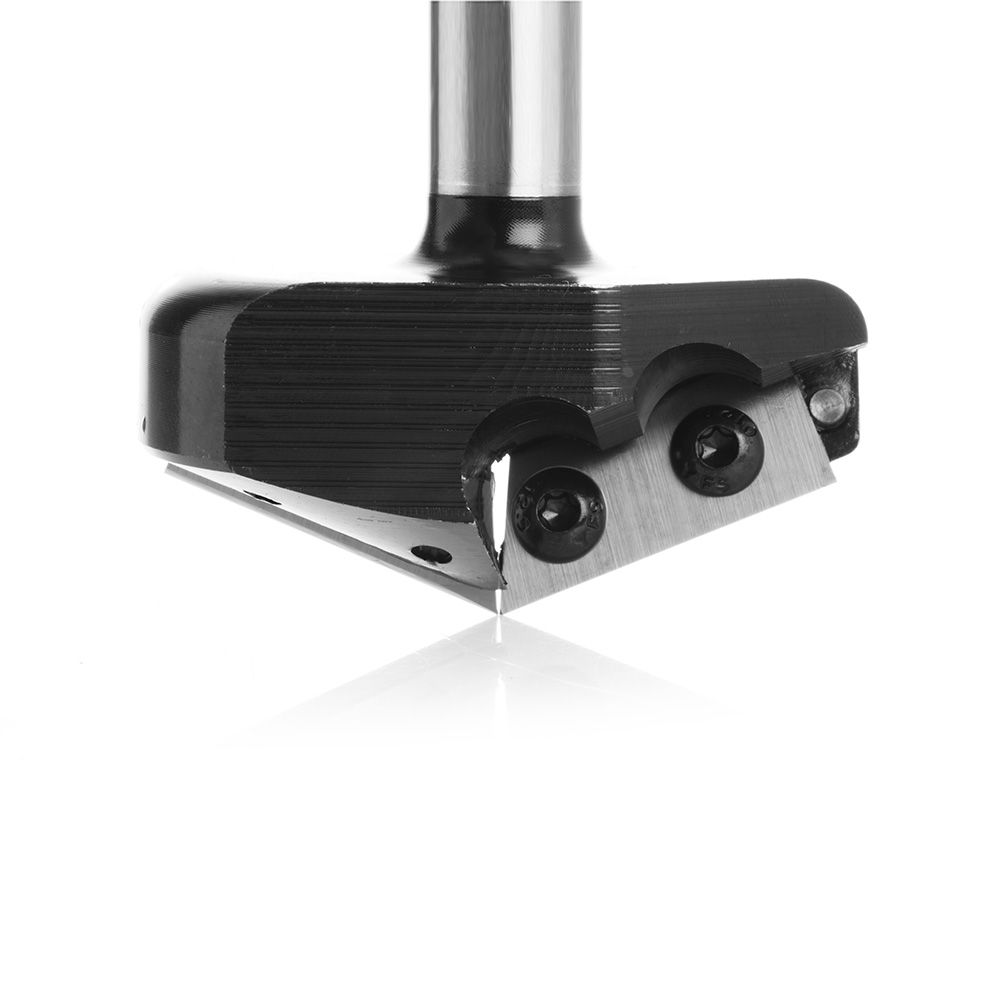

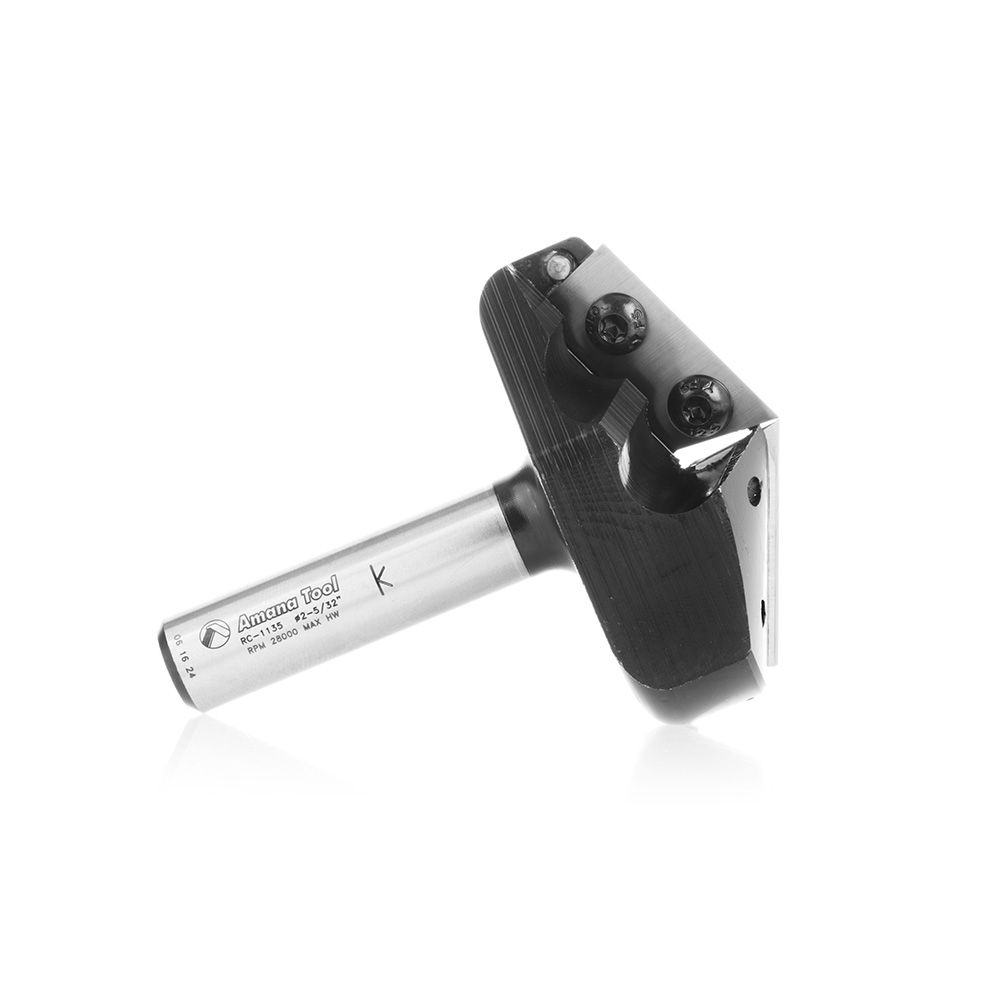

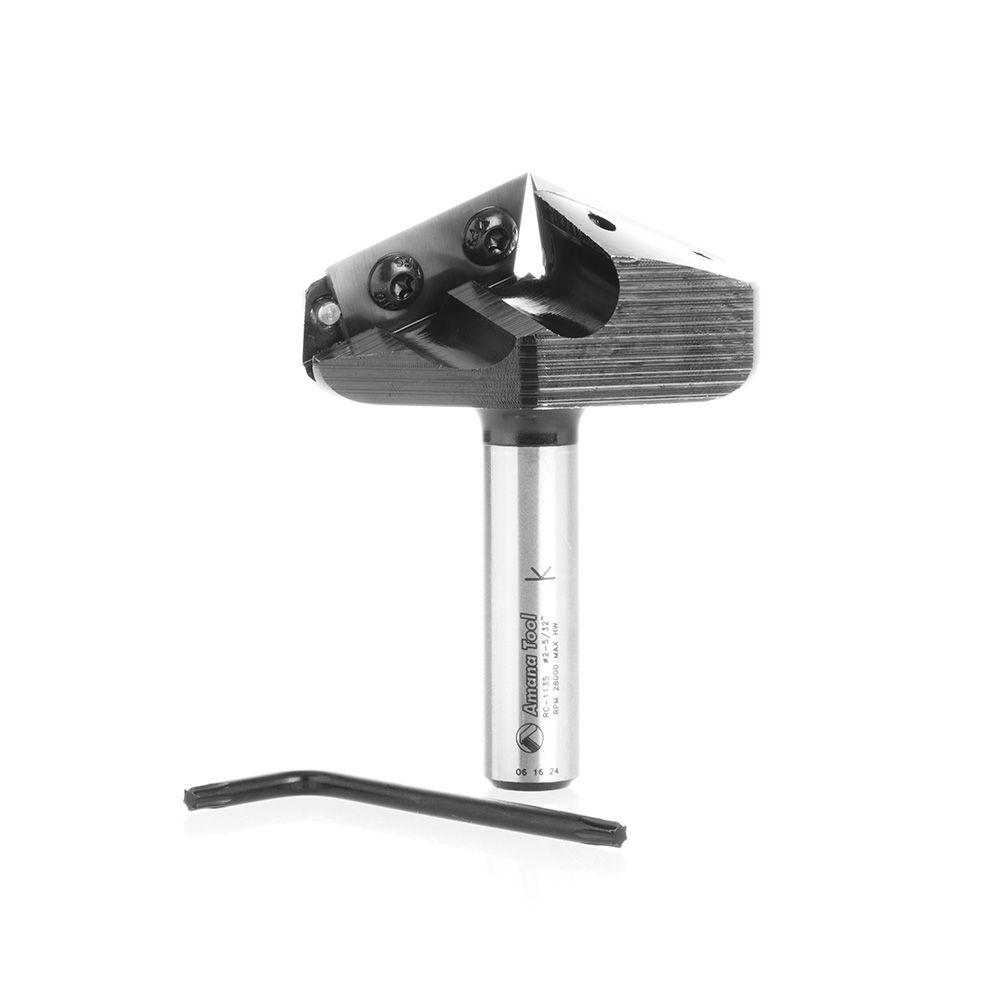

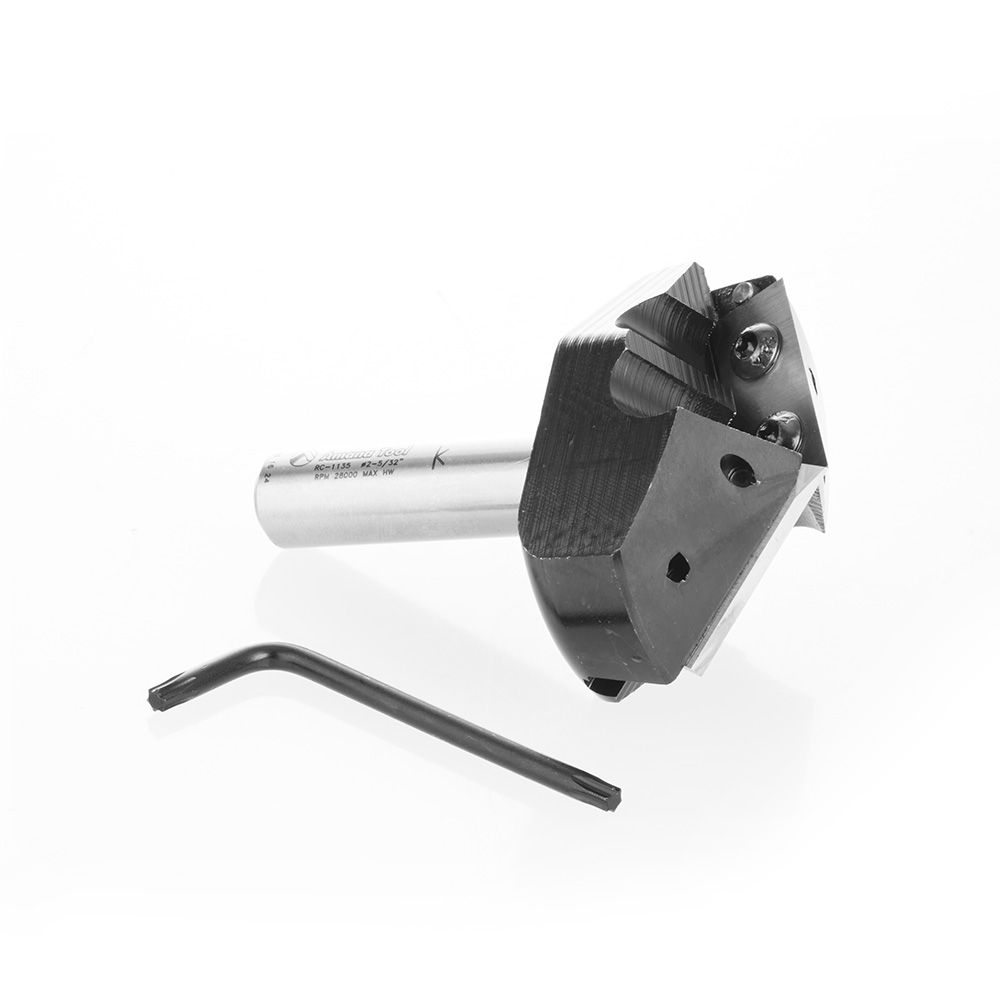

Amana Tool RC-1135 Insert V-Groove 135 Deg x 0.455 x 1/2 Inch Shank CNC
- The innovative CNC tool design uses the highest grade carbide insert knife. These industrial V-Groove insert router bits were especially designed for applications including:
- Miter folds - "create the perfect joint"
- Signmaking and lettering
- Excellent for cutting:
- Aluminum, Brass, Bronze, Copper, Gold, Silver & Carbon Fiber
- (Engraving Only)
- Acrylic/Plastic
- Composites
- Composite Decking
- Epoxy (Epoxy Resins)
- Foam
- High Density Polyethylene (HDPE)
- Laminate
- Melamine
- MDF/HDF
- PVC
- Sign Board
- Solid Surface
- Veneered Plywood
- Wood
- Xanita® Board*
- 20lbs High Density Urethane
- *When working with Xanita LightBoard panel (X-board® X-board® plus) we recommend using MDF knives for better results.
- Advantages of Insert Tooling:
- Long lasting insert knives provide superior smooth quality cuts every time
- Quick and precise replacements of dull knives
- Due to insert accuracy tool life is extended
- Insert tooling allows for harder grades of carbide
- Special carbide grades for special applications
- Cost effective solution compared to replacing brazed router bits
- Secure locking screw system ensures maximum safety and maintains cutting accuracy. CNC router requires quality hold downs to ensure the least possibility of material shifting during operation.
- Warning: Before using any insert tool, make sure the set screw is tightened firmly. When replacing a dull insert, first clean the tool and remove all dust prior to inserting the new knife.
- Included General Purpose Knives (2 Required)
- Optional MDF Knives (2 Required)
- Torx Screw (4)
- RCK-53
- RCK-346
- 67110
- Insert Carbide V-Groove Speed and Feed Chart
| Cutting Diameter | 2-5/32 |
|---|---|
| Shank | 1/2 |
| Cutting Length | 0.455 |
| Overall Length | 3 |
| (a1) | 67.5° |
| Number of Flutes | 2 |
| Maximum RPM | 28000 |
| Angle degree | 135° |
| (B1) | 1-11/64 |
