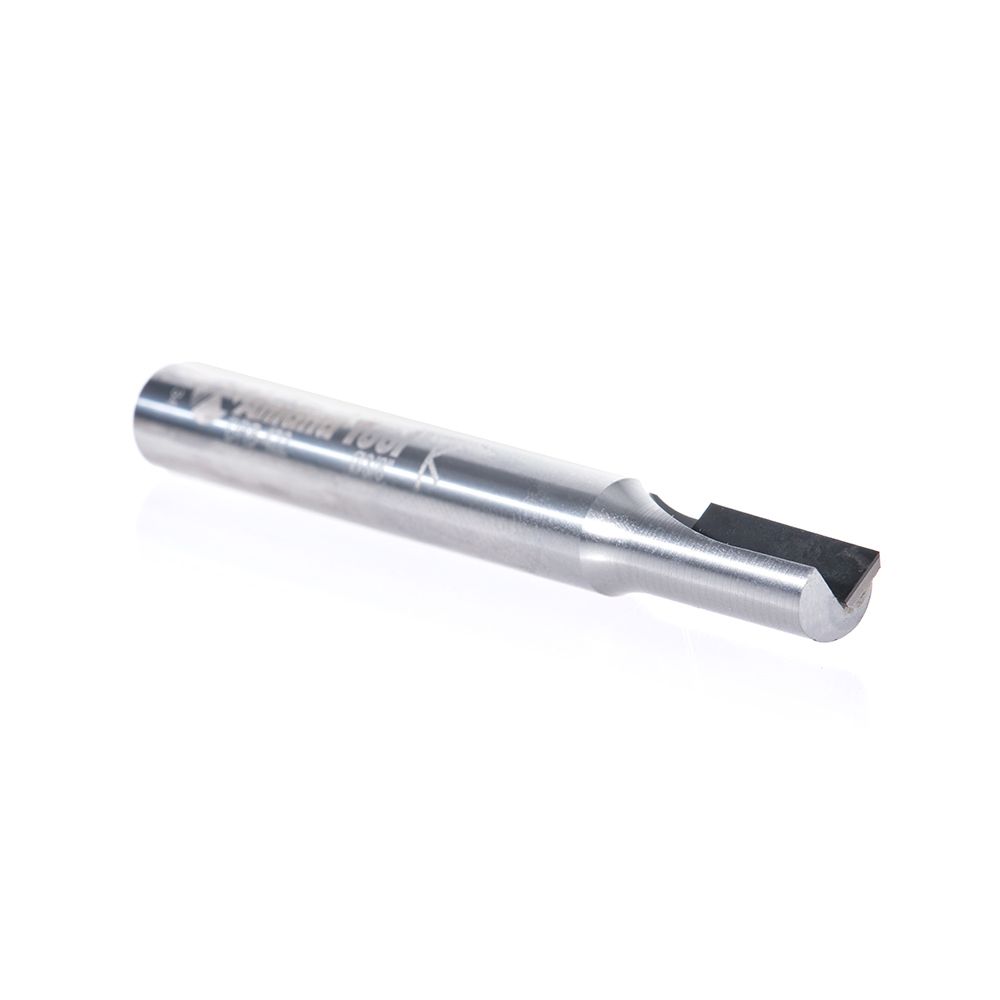

Amana Tool DRB-422 Straight Plunge Down-Shear Polycrystalline Diamond (PCD) Tipped 3/8 Dia x 15.35mm (5/8) x 3/8 Shank Single Flute Router Bit
- Diamond is the hardest material on the earth. Polycrystalline Diamond (PCD) tooling is manufactured in a high-temperature and high-pressure laboratory that fuses diamond particles onto a carbide substrate, which allows the diamond to be brazed onto a tool body.
- If you’re looking for the ultimate in tooling you’ve found it! Amana Tool®'s PCD tipped single flute straight plunge router bits will groove and joint a wide variety of tough abrasive materials including composites, particleboard, MDF (both raw or with melamine), veneer and hardwoods. The cutting edge lasts much longer than carbide for extremely long life.
- Excellent for Cutting:
- Aluminum
- Aluminum Composites
- Aluminum Composite Material (ACM)
- Composites
- Composite Panels
- Custom Composite Materials (CCM)
- Fiberglass
- Fiberglass PCB Board
- Fiberglass Reinforced Composites
- Fiber-Reinforced Urethane
- Fiber-Reinforced Structural Foam Floors
- Hard and Soft Wood
- Lightweight Composites
- MDF
- Plastic
- Benefits of Diamond Technology
- Harder cutting edge provides higher resistance to wear
- Cut thousands of feet more than carbide without changing tool saving setup time
- Optimized machine tool efficiency
- Quality of finish is often significantly improved
- PCD Single Flute Down-Shear Straight Plunge Speed and Feed Chart
| Cutting Diameter | 3/8 |
|---|---|
| Shank | 3/8 |
| Cutting Length | 15.35mm (5/8) |
| Overall Length | 3 |
| Number of Flutes | 1 |
| Maximum RPM | 24000 |
