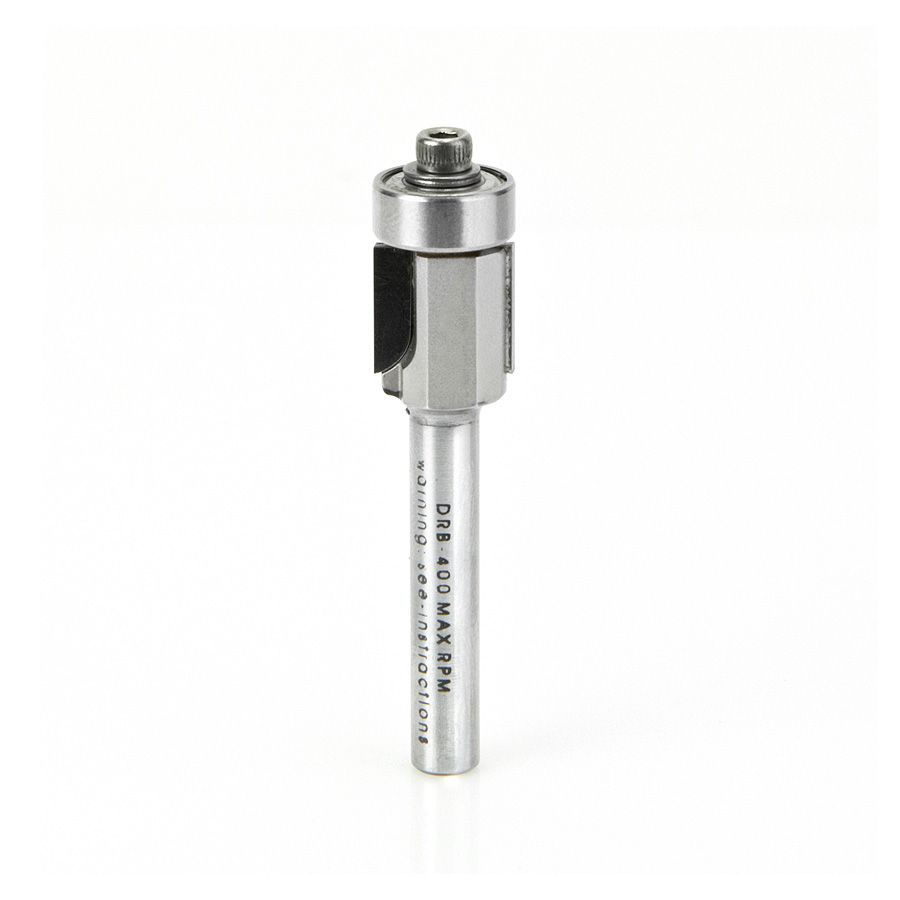

Amana Tool DRB-400 Polycrystalline Diamond (PCD) Flush Trim for MDF/Laminate Composites ACM Materials & Aluminum 1/2 Dia x 7/16 Inch x 1/4 Shank
- Diamond is the hardest material on the earth. Polycrystalline Diamond (PCD) tooling is manufactured in a high-temperature and high-pressure laboratory that fuses diamond particles onto a carbide substrate, which allows the diamond to be brazed onto a tool body.
- If you’re looking for the ultimate in tooling, you’ve found it! Amana Tool®'s PCD tipped flush trim CNC router bits will trim a wide variety of tough, abrasive materials including composites, particleboard, MDF (both raw or with melamine), veneer and hardwoods. The cutting edge lasts much than carbide for extremely long life.
- The ultimate flush trim bit for Aluminum Composite Materials (ACM) and Aluminum. The diamond-tipped cutting edges last much longer than carbide-tipped flush trims, saving you time and money.
- Designed for flush trimming:
- Aluminum Composite Material (ACM)
- Aluminum Composite Panel (ACP)*
- Aluminum, Clay, Zinc & Wood Composite Panels
- Aluminum
- ALPOLIC® Copper Composite Material (CCM)
- Alucobond®
- Alupanel®
- Composites
- Composite Materials
- Dibond®
- Durabond**
- e-panel™
- Etalbond®
- Fiber-Reinforced Urethane
- Fiber-Reinforced Structural Foam Floors
- Fiberglass Reinforced Composites
- Lightweight Composites
- MDF Laminates
- Titanium Composite Material (TCM)
- *Aluminum Composite Panel (ACP) is a type of ACM flat panel that consists of two thin aluminum sheets bonded to a non-aluminum core. ACPs are frequently used for external cladding or facades of buildings, insulation, and signage. **Durabond is a polyethylene core with 0.3mm colored aluminum sheet on either side, pre-finished requiring no decoration.
- Benefits of Diamond Technology
- Harder cutting edge provides higher resistance to wear
- Cut thousands of feet more than carbide without changing tool, saving setup time
- Optimized machine tool efficiency
- Quality of finish is often significantly improved
- For Tool No.
- Bearing(s)
- Screw
- Hex Nut
- DRB-400
- 47706
- 67018
- 67135
| Replacements | 47706 |
|---|---|
| Cutting Diameter | 1/2 |
| Shank | 1/4 |
| Cutting Length | 7/16 |
| Overall Length | 2-19/64 |
| Number of Flutes | 2 |
