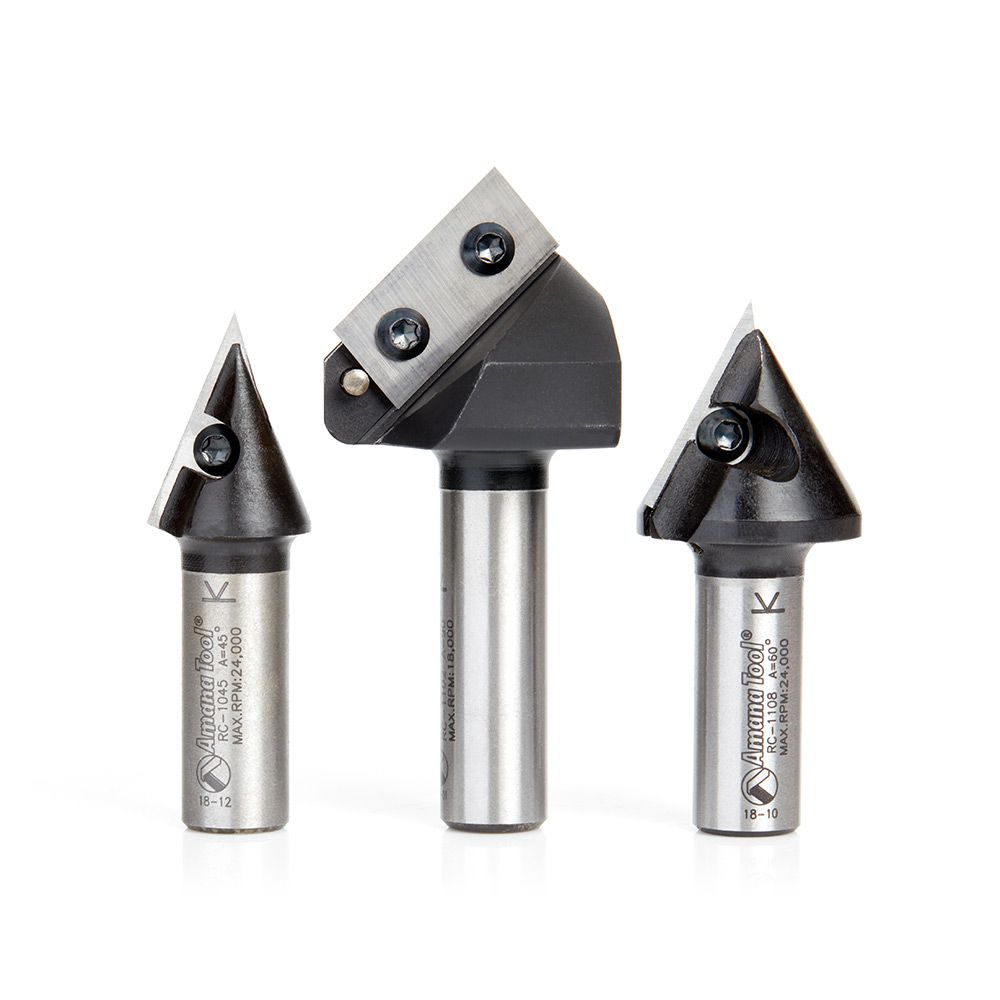

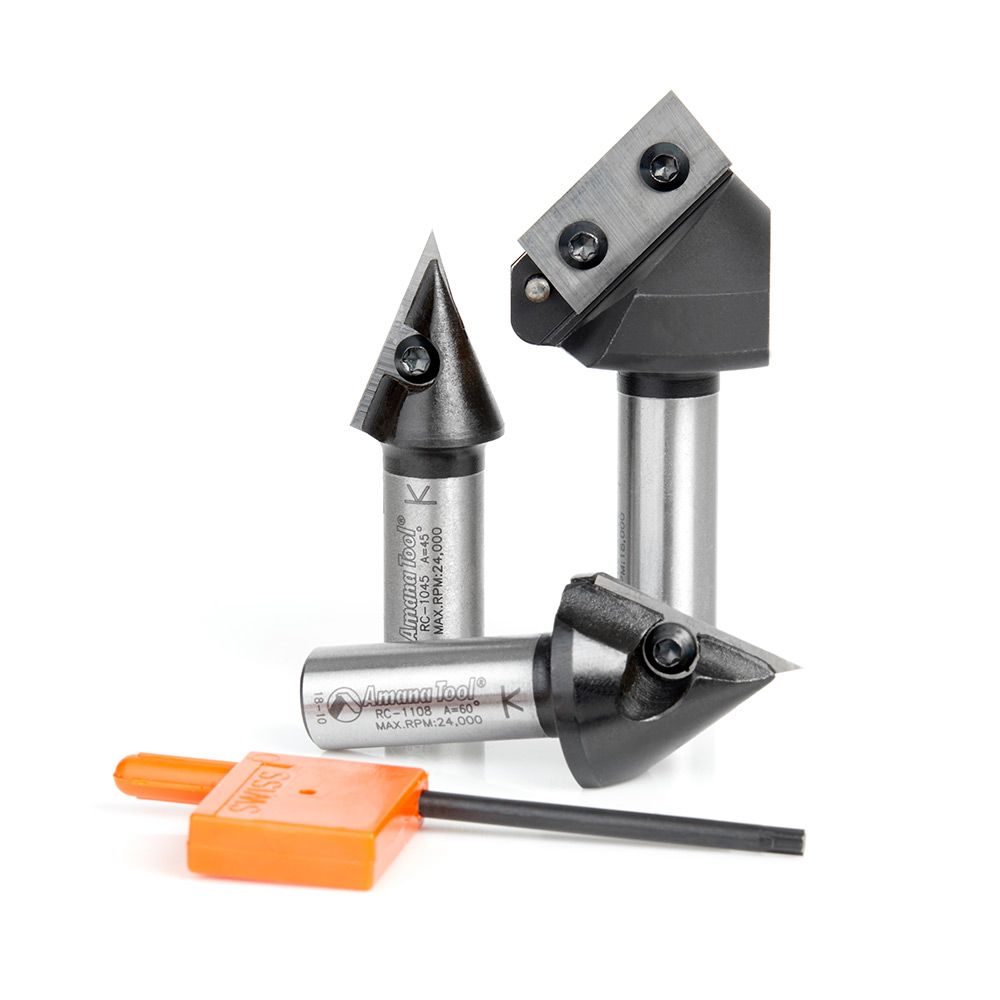

Amana Tool AMS-157 CNC V-Groove, 2D/3D, Signmaking, Lettering & Engraving Insert Carbide Router Bit 3-Pc Pack, 1/2 Inch Shank
- The innovative CNC tool design uses a high grade solid carbide insert knife which allows you to get two uses out of each insert. Once the knife show signs of wear you can rotate the insert for a brand new cutting edge. These industrial V-Groove insert router bits were especially designed for applications including:
- Miter folds - "create the perfect joint"
- Signmaking and lettering
- Excellent for cutting:
- Aluminum, Bronze, Copper & Carbon Fiber (Engraving Only)
- Foam
- Laminate
- Melamine
- MDF/HDF
- Sign Board
- Solid Surface
- Veneered Plywood
- Wood
- Xanita® Board*
- 20lbs High Density Urethane
- *When working with Xanita LightBoard panel (X-board® X-board® plus) we recommend using MDF knives for better results.
- Advantages of Insert Tooling
- Long lasting insert knives provide superior smooth quality cuts every time
- Quick and precise replacements of dull knives
- Due to insert accuracy tool life is extended
- Insert tooling allows for harder grades of carbide
- Special carbide grades for special applications
- Knives can be re-sharpened multiple times without affecting the original profile
- Cost effective solution compared to replacing brazed router bits
- Secure locking screw system ensures maximum safety and maintains cutting accuracy. CNC router requires quality hold downs to ensure the least possibility of material shifting during operation.
- See below for set contents.
- Insert Carbide V-Groove Speed and Feed Chart
More Information
| Shank |
1/2 |
