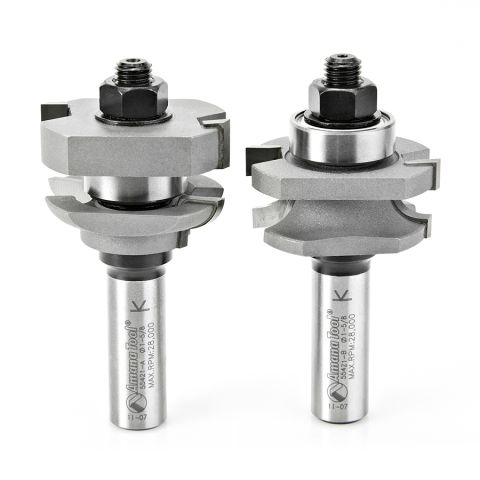

Amana Tool 55421 Carbide Tipped 2-Piece Concave Stile and Rail 1-5/8 Dia x 11/16 x 5/32 Radius x 1/2 Inch Shank Set
- Our stile and rail sets give you two complete bits, one for doing the rail cuts, one for the stiles. Make cabinet doors and all varieties of frame-and-panel assemblies for furniture and architectural applications. These sets are offered in two configurations, one for working material up to 1" thick, the other for material between 5/8" and 7/8" in thickness. The same three profiles are available in either configuration.
- 3/4" Material
- Bits in this set have profile and groove or rabbet cutters and ball-bearing guide mounted on a 1/2" shank. Respacing of the components should only be necessary – using the provided shims – after the cutters have been resharpened. Use in a table-mounted router. Guide straight cuts with the fence; use the pilot bearing only for cuts on curved rails or stiles.
| Radius 1 (R1) | 1/4 |
|---|---|
| Cutting Diameter | 1-5/8 |
| Shank | 1/2 |
| Cutting Length | 11/16 |
| Overall Length | 3-1/8 |
| Number of Flutes | 2 |
| (B1) | 1/4 |
| (C) | 3/8 |
