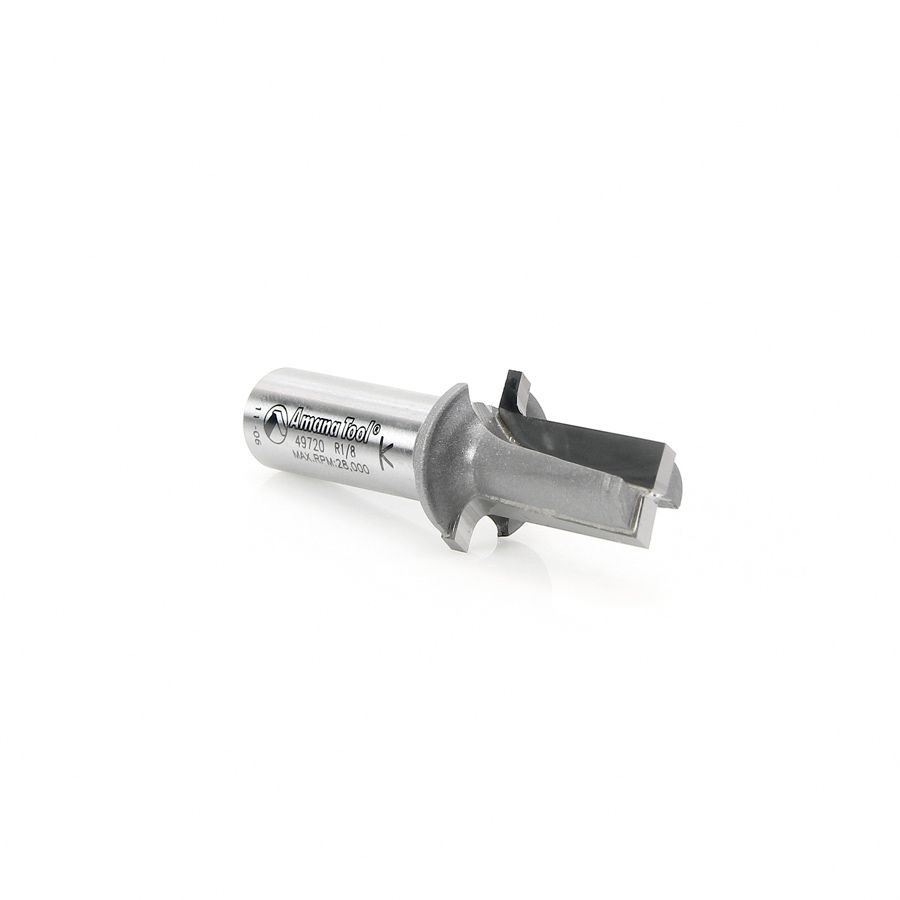

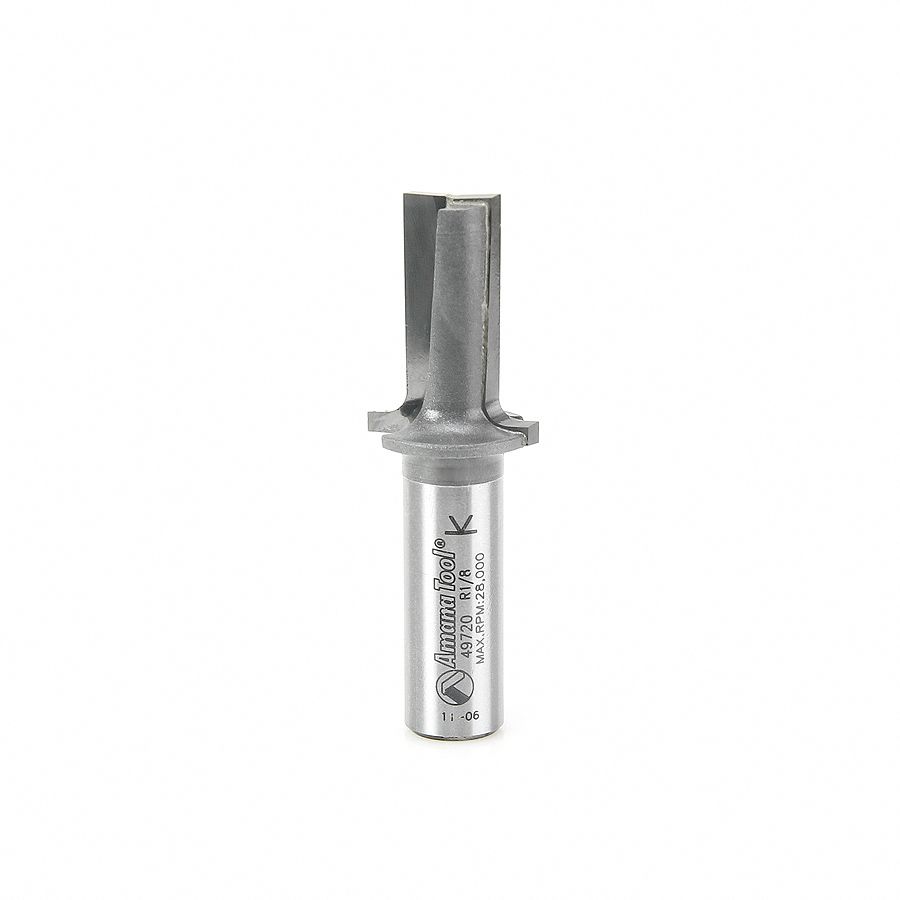

Amana Tool 49720 Carbide Tipped Plunging Round Over (Elongated Plunge) 1/8 Radius x 7/8 Dia x 1-7/32 x 1/2 Inch Shank Router Bit
- This bit creates a flat-bottom groove between two quarter-round shapes. Short vertical walls extending below the radius lend extra depth to the appearance. Depending upon the cut depth adjustment, the radii can be flush with the work surface or recessed. The profile can be formed on an edge using an edge guide or, on the router table using a fence. Elongated Plunge.
- 49720 DXF
- File Size : 940.7 KB
| Radius 1 (R1) | 1/8 |
|---|---|
| Cutting Diameter | 7/8 |
| Shank | 1/2 |
| Cutting Length | 1-7/32 |
| Overall Length | 2-23/32 |
| (d1) | 15/32 |
| Number of Flutes | 2 |
| (B1) | 1-3/32 |
