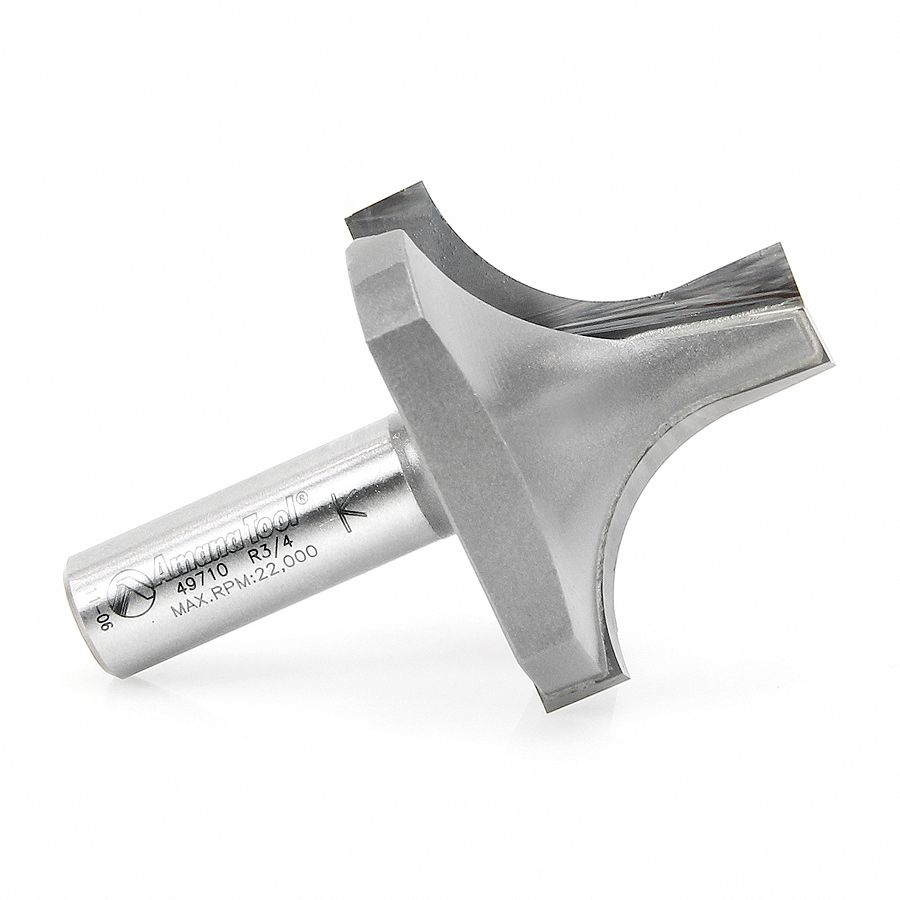

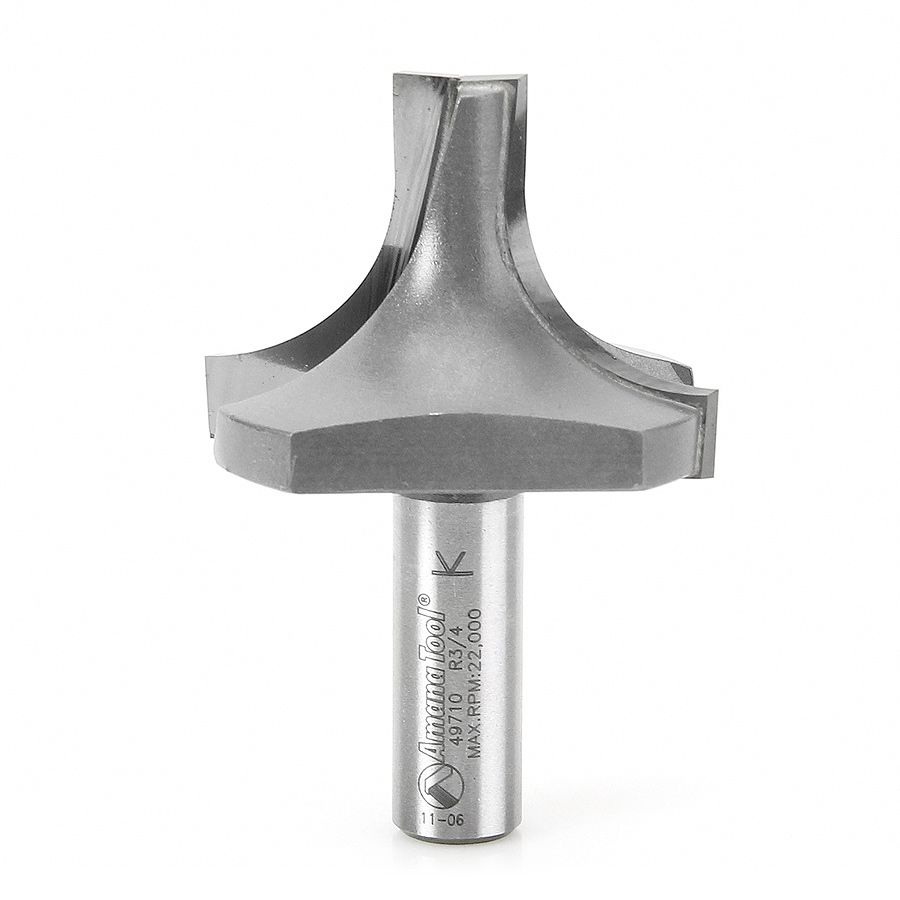

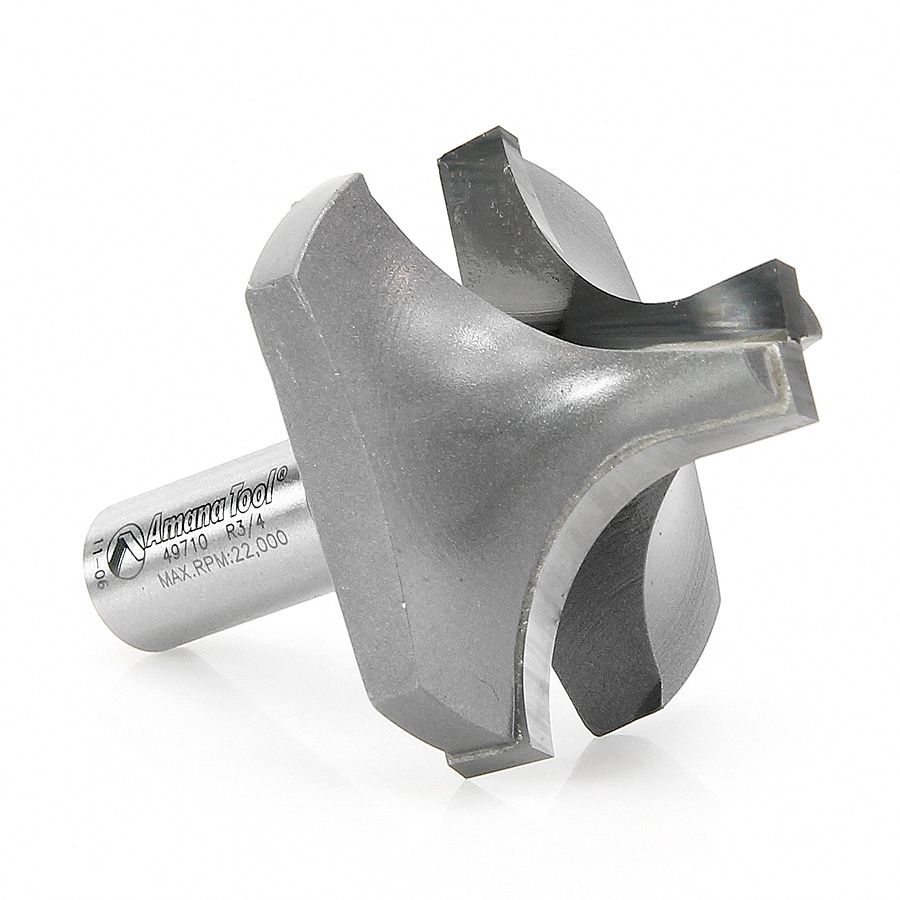

Amana Tool 49710 Carbide Tipped Plunging Round Over 3/4 Radius x 2 Inch Dia x 1-13/32 x 1/2 Shank
- This bit creates a flat-bottom groove between two quarter-round shapes. Short vertical walls extending below the radius lend extra depth to the appearance. Depending upon the cut depth adjustment, the radii can be flush with the work surface or recessed. The profile can be formed on an edge using an edge guide or, on the router table using a fence.
- Use in a table-mounted router. Not for use in a handheld router!
- Vectric compatible tool file for 49710 available for download, click here.
- 49710 DXF
- File Size : 552.17 KB
| Radius 1 (R1) | 3/4 |
|---|---|
| Cutting Diameter | 2 |
| Shank | 1/2 |
| Cutting Length | 1-13/32 |
| Overall Length | 2-29/32 |
| (d1) | 1/2 |
| Number of Flutes | 2 |
| (B1) | 1-1/8 |
