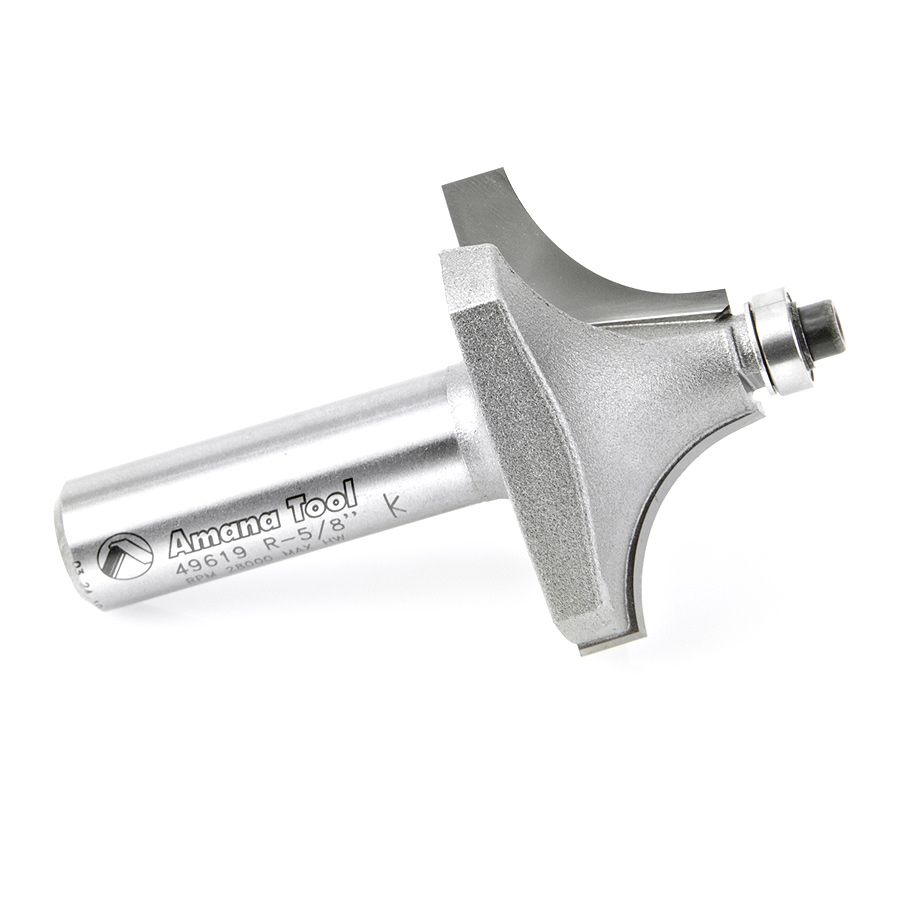

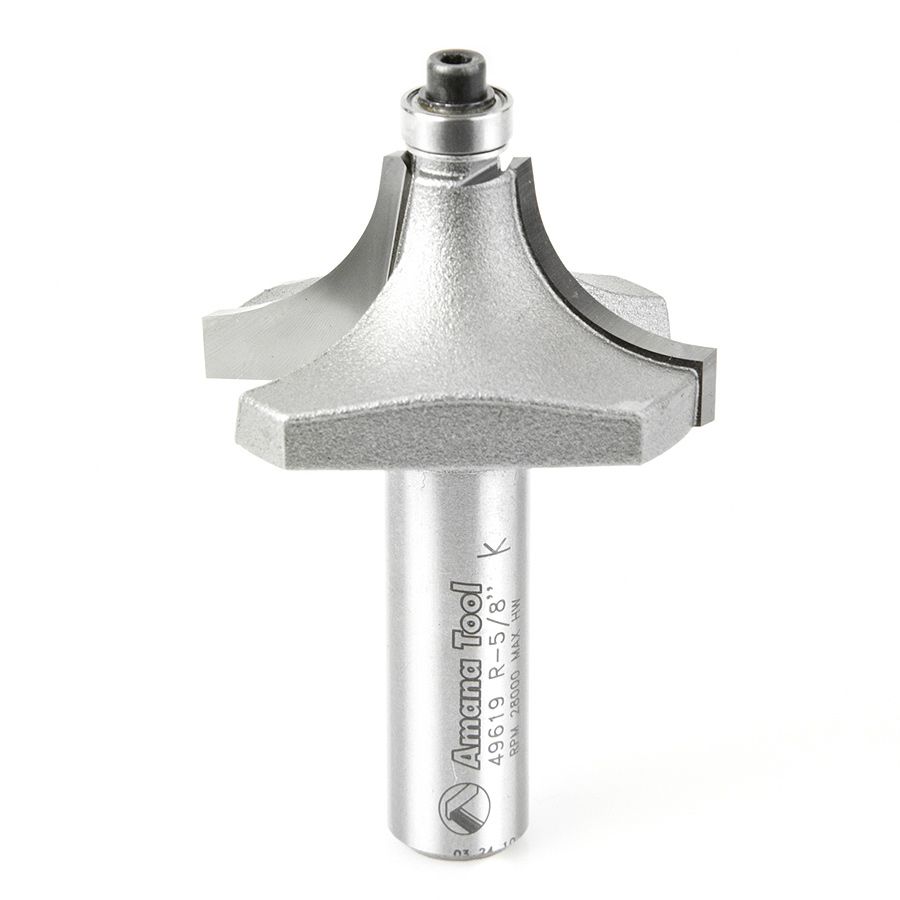

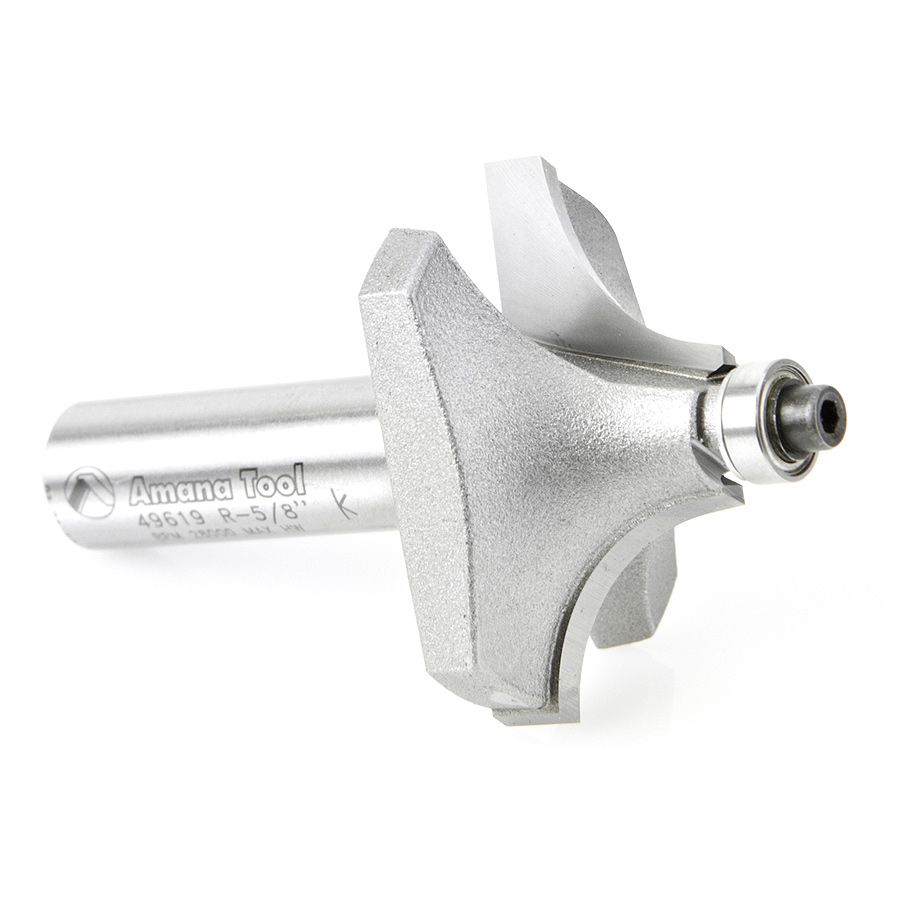

Amana Tool 49619 Carbide Tipped Beading 5/8 Radius x 1-3/4 Dia x 7/8 x 1/2 Inch Shank
- Cut a quarter-round shape bounded by fillets, known as a bead, in one pass by this bit. The width of one fillet is set by the pilot bearing size, while the other is controlled by the depth of cut. A beading bit can be transformed into a corner rounding bit by changing the bearing (& vice versa).
- Maximum RPM: 28,000
- Tool No.
- Bearing(s)
- Screw
- Dust Shield
- Flat Washer
- 49619
- 47702
- 67096
- 67101
- 67202
| Replacements | 47702 |
|---|---|
| Radius 1 (R1) | 5/8 |
| Cutting Diameter | 1-3/4 |
| Shank | 1/2 |
| Cutting Length | 7/8 |
| Overall Length | 2-3/4 |
| (d1) | 3/8 |
| Number of Flutes | 2 |
