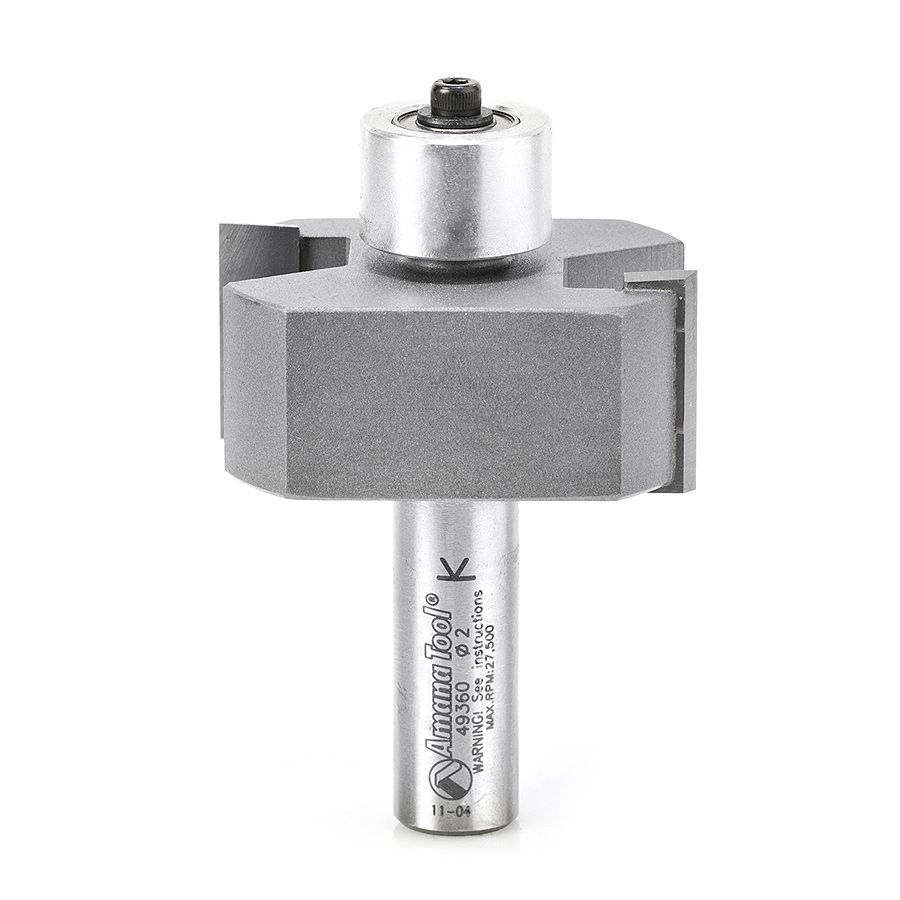

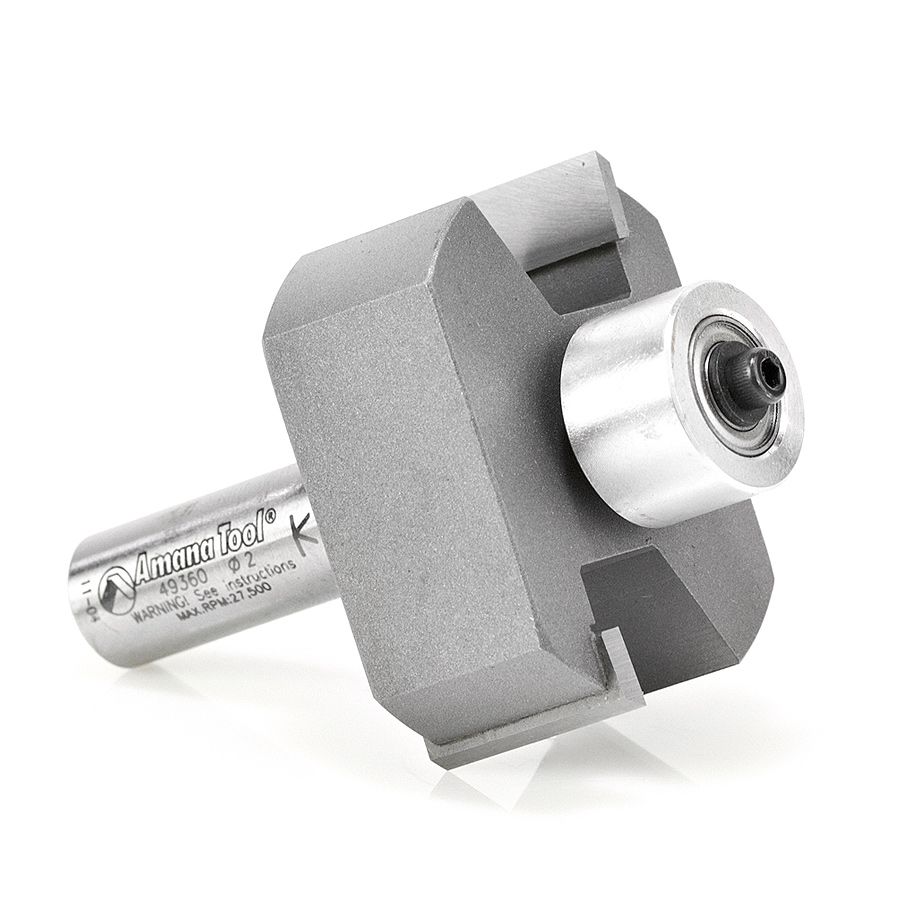

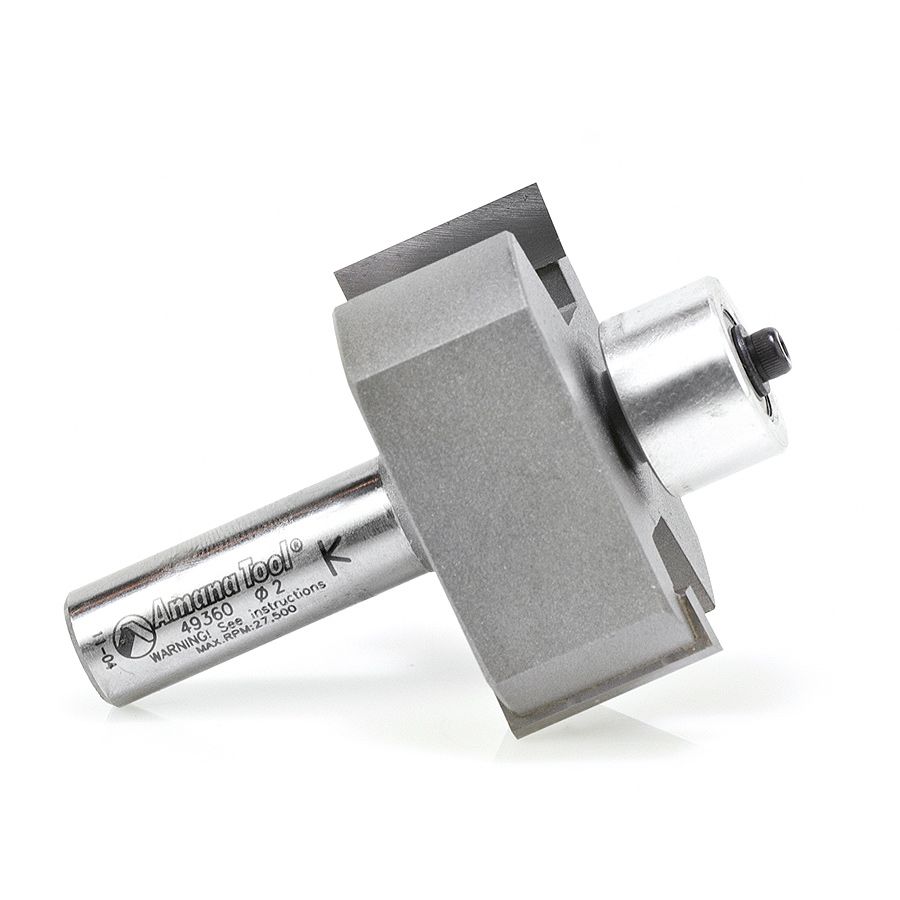

Amana Tool 49360 Carbide Tipped Superabbet 2 Dia x 7/8 x 1/2 Inch Shank
- This ingenious tool features both interchangeable cutting edges and an interchangeable guide collar, enabling you to cut a wide range of rabbets. Changing the collars on the twin ball-bearing guide steps the cut width in 1/16" increments from flush through 3/4" with five extra "plywood" sizes.
- Between the standard and optional collars, there are 18 different rabbet sizes available. The deep guide collar design adds stability to the tool for hand-held router operations. The basic 2"-diameter bit includes a hex key, instructions, and all necessary parts for 5/8" and 3/4" deep rabbets.
- The "RC" version has extra-long double-edged carbide inserts which enables the bit to cut 30mm high. Inserts can be rotated or replaced without removing the bit from the router.
- Maximum RPM 22,000.
- Use in a table-mounted router. Not for use in a handheld router!
- Replacement Collar
- Replacement Bearings 2 Required
- Replacement screw for bearing
- Replacement washer for bearing
- Replacement spacer bearing
- Optional Bearing Kits
- 67426
- 47701
- 67094
- 67202
- 67206
- 67500
- 67600
- 67800
| Cutting Diameter | 2 |
|---|---|
| Shank | 1/2 |
| Cutting Length | 7/8 |
| Overall Length | 3 |
| Number of Flutes | 2 |
| (C) | 5/8 (#67426) & 3/4 (#47701 (2)) |
