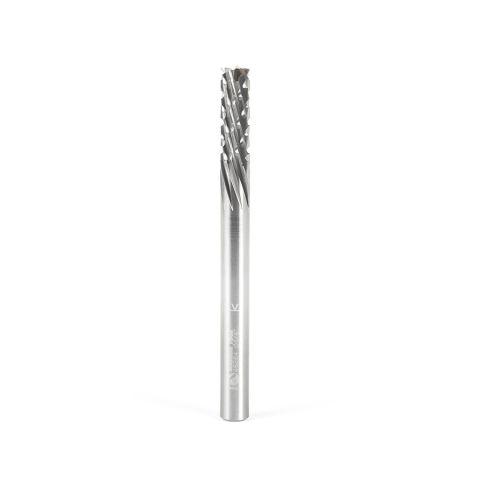

Amana Tool 46264 Solid Carbide CNC Spiral Carbon Graphite & Carbon Fiber Panel Cutting 1/4 Dia x 3/4 x 1/4 Shank x 3 Inch Long Down-Cut Router Bit
- Introducing Amana Tools®'s carbon graphite and carbon fiber cutting solid carbide router bits designed to produce a minimum failure in composite materials such as layers separating and a significant loss of mechanical toughness.
- The rapidly growing use of Carbon Fiber Reinforced Polymers (CFRP) necessitates tooling designed to effectively meet the challenges of such composites. Experts have recognized the need for a tool geometry combining a highly abrasion-resistant carbide substrate generous fluting and an impact zone that not only "shatters" the hard carbon fibers but also keeps heat down.
- These industrial router bits combat abrasion heat and the breakdown of composites for clean, accurate cuts.
- Excellent for cutting:
- Carbon Fiber
- Carbon Fiber Reinforced Polymer (CFRP)
- Carbon Graphite
- Composite Materials
- Fiberglass
- Fiberglass PCB Board
- Fiber Reinforced Plastic (FRP)
- Glass Fiber Reinforced Polymer - Plastic Materials (GFR)
- Glass Reinforced Plastic (GRP)
- G10 = High-pressure fiberglass laminate, a kind of composite material
- G10 / FR-4 Glass Epoxy Composite Laminate Material
- G11 / FR-5 Glass Epoxy Composite Laminate Material
- Kevlar
- Micarta® (Brand name for composites of linen, canvas, paper, fiberglass, carbon fiber or other fabric in a thermosetting plastic.)
- Phenolic
- Phenolic "Garolite" G-7
- Plastic PVC & Acrylic
- Thermoset Composites
- Thermosetting Plastics
- Solid Carbide Carbon Graphite and Carbon Fiber Panel Cutting Speed and Feed Chart
| Cutting Diameter | 1/4 |
|---|---|
| Shank | 1/4 |
| Cutting Length | 3/4 |
| Overall Length | 3 |
| Number of Flutes | 1 |
