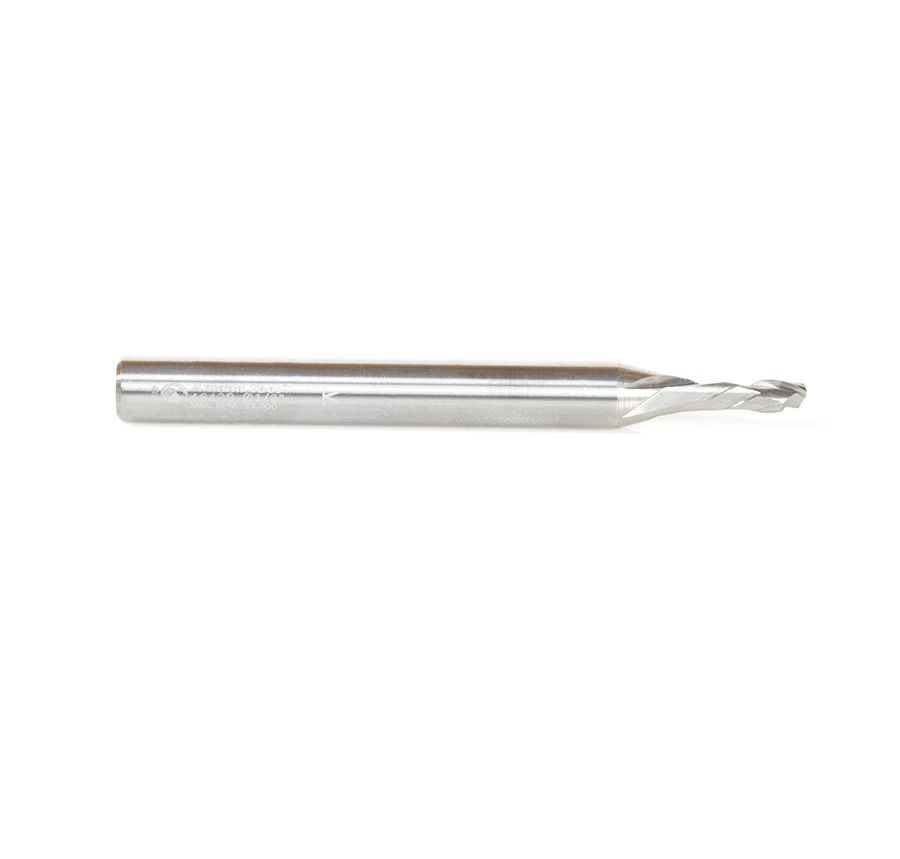

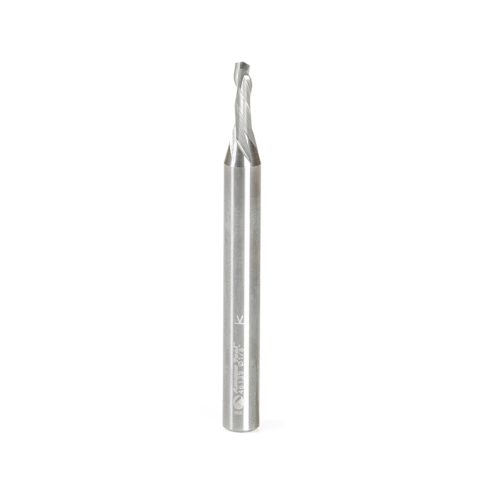

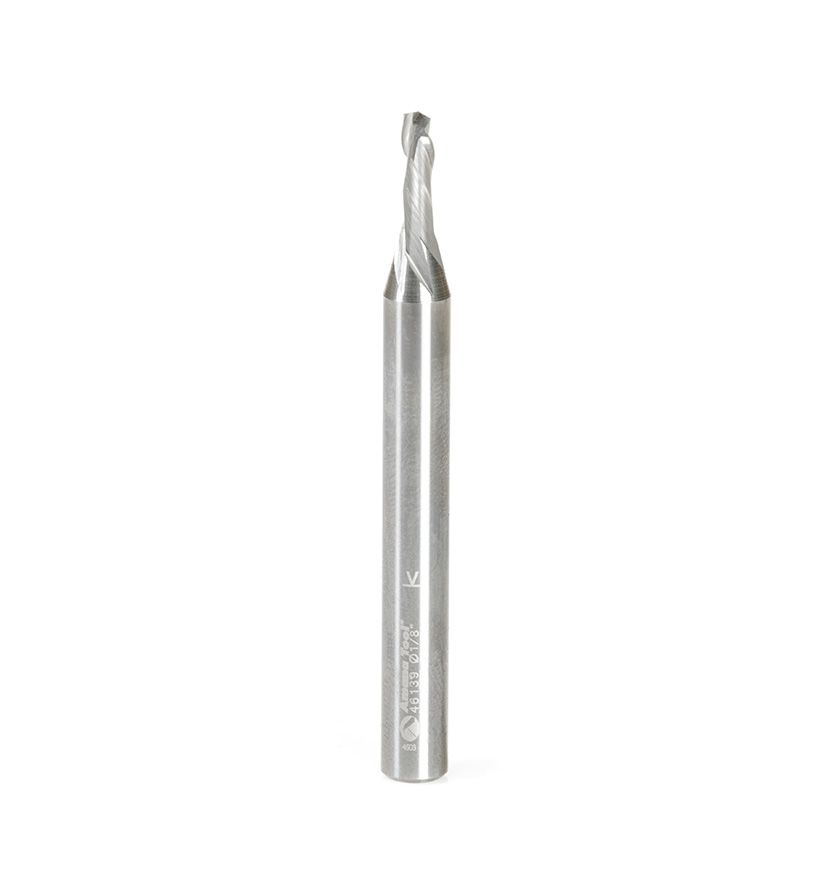

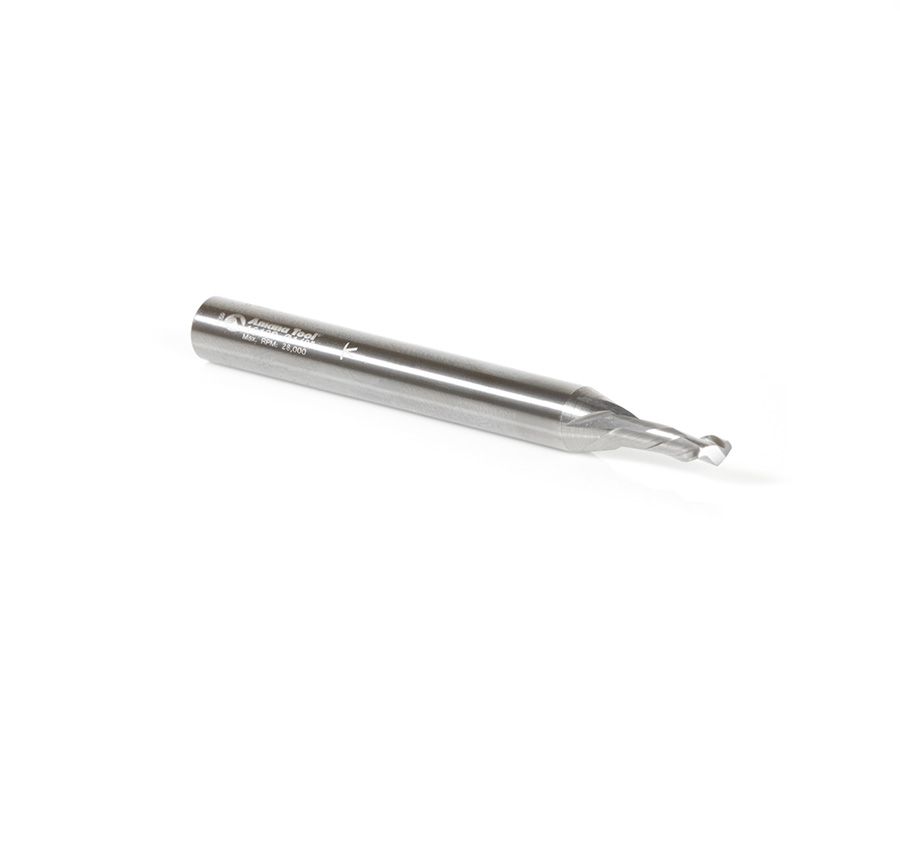

Amana Tool 46139 CNC Solid Carbide Compression Spiral Single Flute 1/8 Dia x 3/8 x 1/4 Inch Shank
- Special unique carbide for longer lifetime in abrasive material. Designed for CNC applications requiring high feed rates and a clean finish. Particularly suitable for double-sided melamine or laminated material.
- Excellent for Cutting:
- Laminate
- Laminated Plywood
- Melamine
- Melamine Particle Board
- MDF/HDF
- Oriented Strand Board (OSB)*
- Particle Board
- Softwood/Hardwood
- Veneered Plywood
- *Oriented Strand Board is an engineered wood particle board.
- Recommended RPM 20,000-21,000.
- Vectric compatible tool file for 46139 available for download, click here.
- Solid Carbide Compression Spiral Speed and Feed Chart
| Cutting Diameter | 1/8 |
|---|---|
| Shank | 1/4 |
| Cutting Length | 3/8 |
| Overall Length | 2-1/2 |
| Number of Flutes | 1 |
| (B1) | 5/32 |
