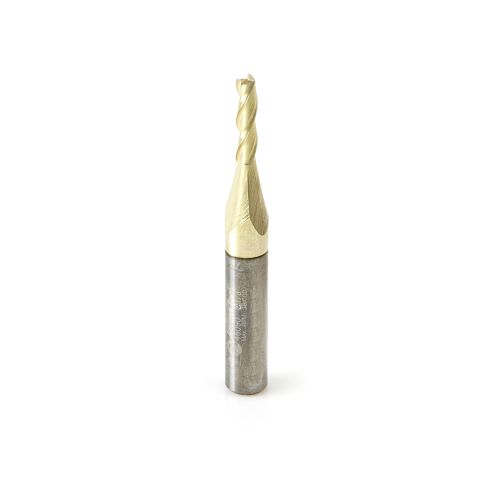

Amana Tool 46090 Solid Carbide Up-Spiral 1/8 Dia x 1/2 x 1/4 Shank x 2 Inch Long Composite, Fiberglass & Phenolic Cutting ZrN Coated Router Bit
- Amana Tool®'s Modern Materials Finishing Geometry (MMFG) incorporates high shear, multi-flute and a ZrN coating designed for the ultimate combination of finish and tool longevity in aerospace materials. Modern-day materials present challenges to the fabricator using these special multi-flute edge tools featuring ZrN ceramic coating addresses these challenges with a winning geometry combination.
- Excellent for cutting:
- Plastic
- Acrylic Stone
- Aluminum
- Acrylonitrile-Butadiene-Styrene (ABS)
- Carbon Fiber Reinforced Polymer (CFRP)
- Composite
- Corian
- Coroplast®*
- Fiberglass
- Fiberglass PCB Board
- HDPE
- High Impact Polystyrene (HIPS)
- Low Density Polyethylene (LDPE)
- Phenolics
- Poly (methyl methacrylate) (PMMA)
- Polycarbonate (Lexan™)†
- Polyethylene Terephthalate Glycol-Modified (PETG / PET-G)
- Thermoplastic Polyolefin (TPO)
- *A soft plastic cardboard made with super soft super flexible PVC.
- †Recommendation: Use the slowest suggested feed rates and the shortest bits necessary for cutting and routing Lexan™.
- Benefits of ZrN Coating
- Creates a harder and tougher cutting edge allows for a prolonged cutting edge life and helps to prevent the build-up of material in the flutes while cutting
- High resistance to wear
- Extended tool life
- Less friction & heat buildup
- High resistance to wear
- Fusion 360 compatible tool file for 46090 available for download, click here.
- Composite, Fiberglass & Phenolic Cutting ZrN Coated Speed and Feed Chart
| Cutting Diameter | 1/8 |
|---|---|
| Shank | 1/4 |
| Cutting Length | 1/2 |
| Overall Length | 2 |
| Number of Flutes | 3 |
