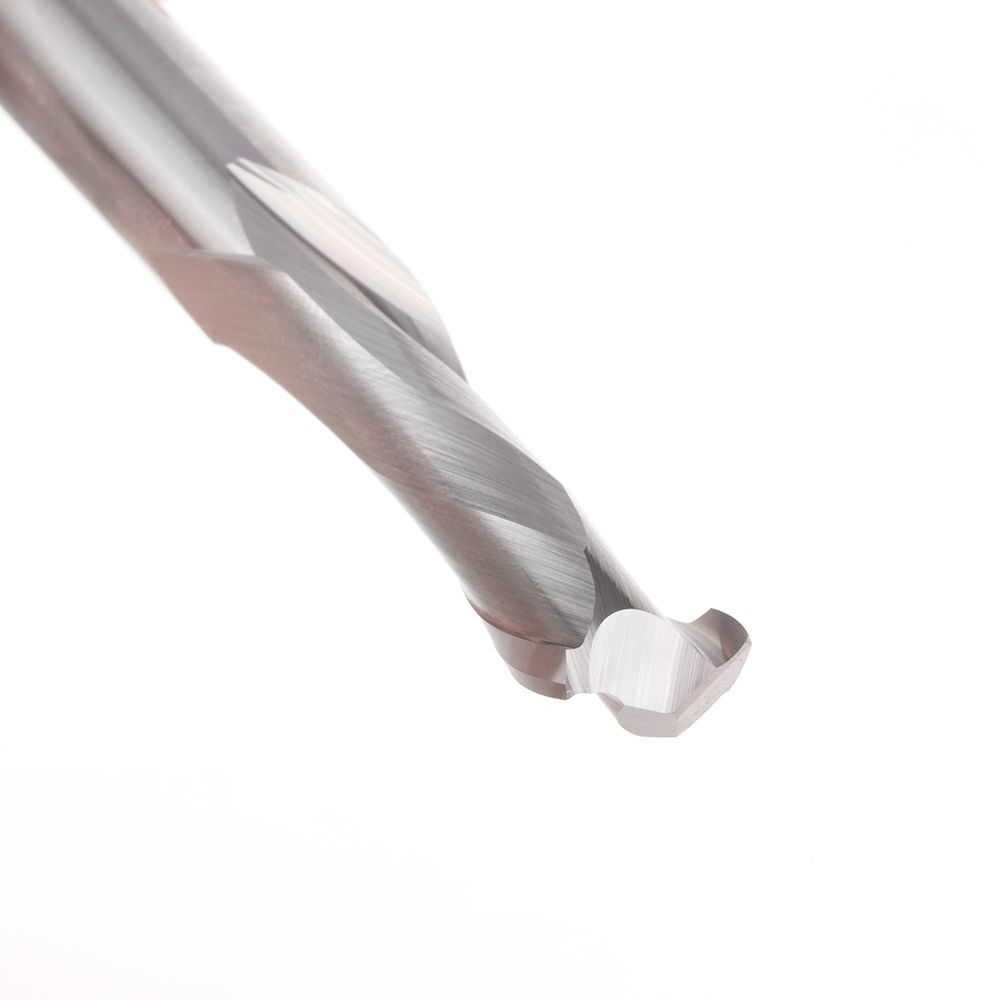

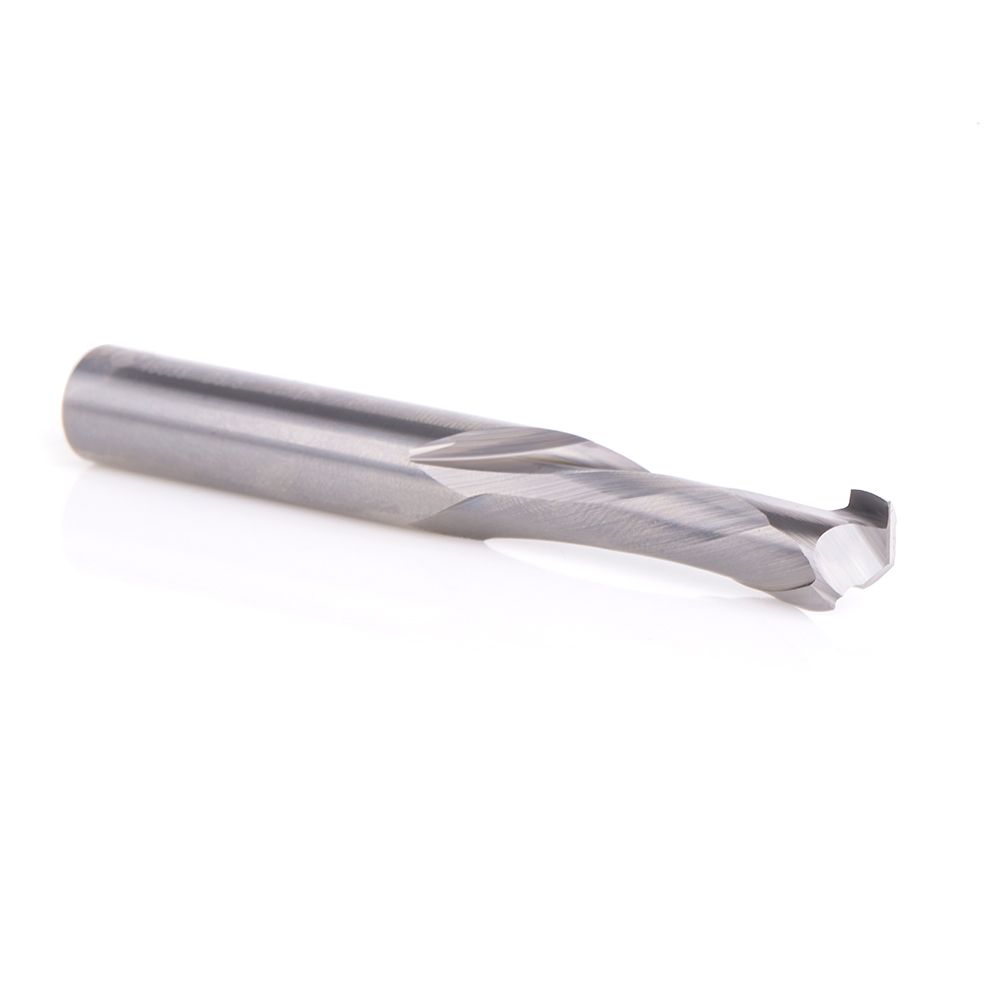

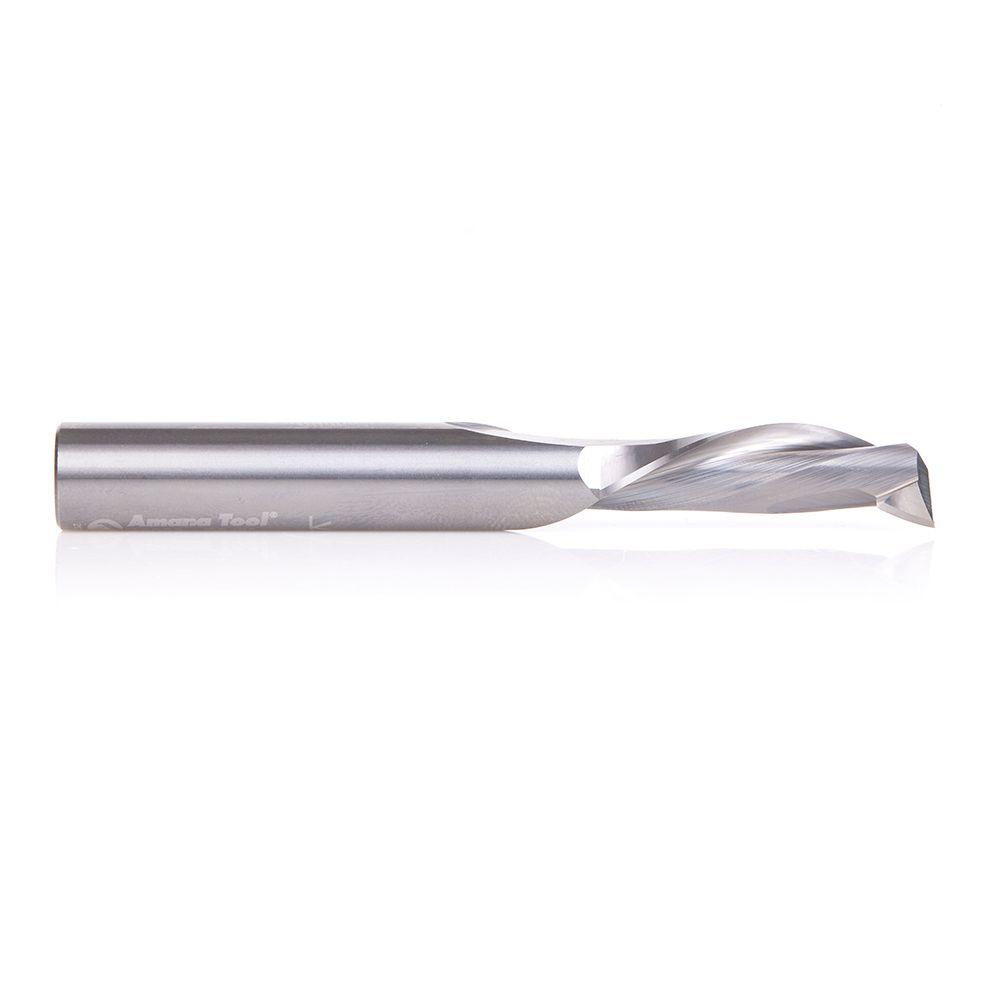

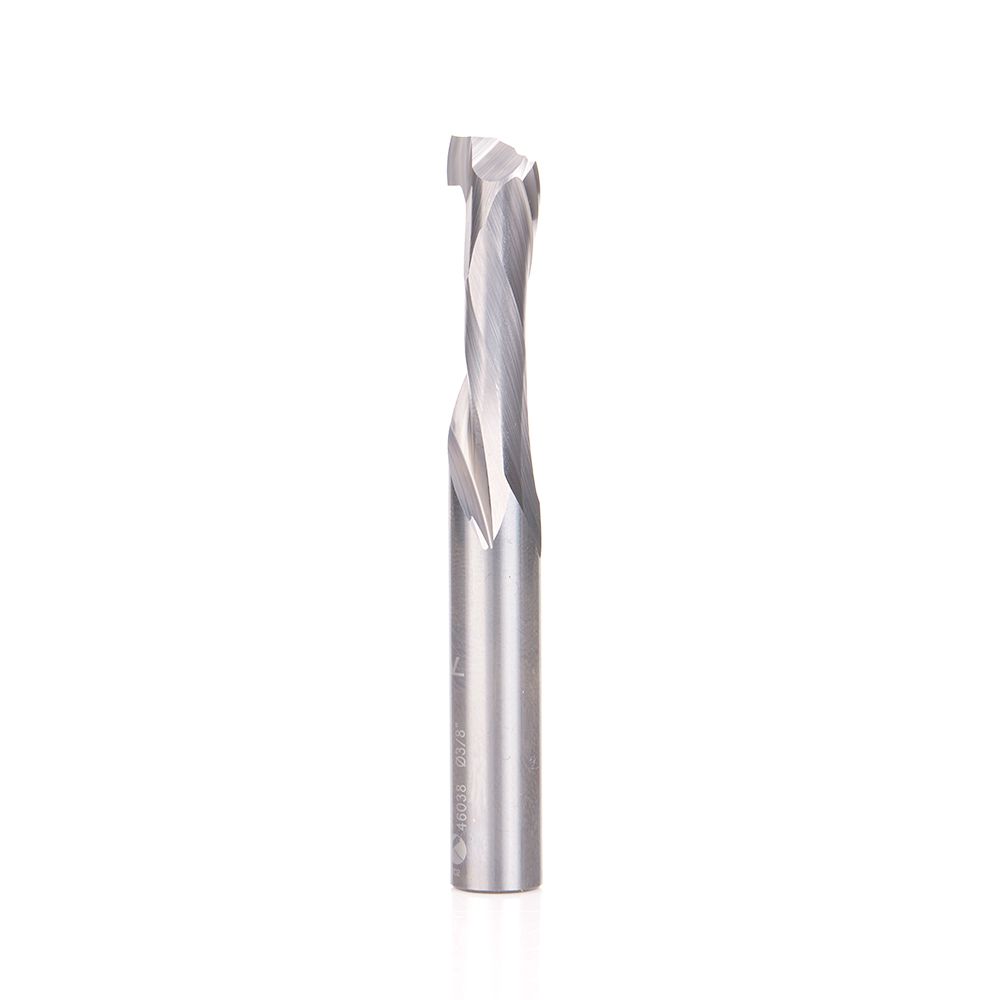

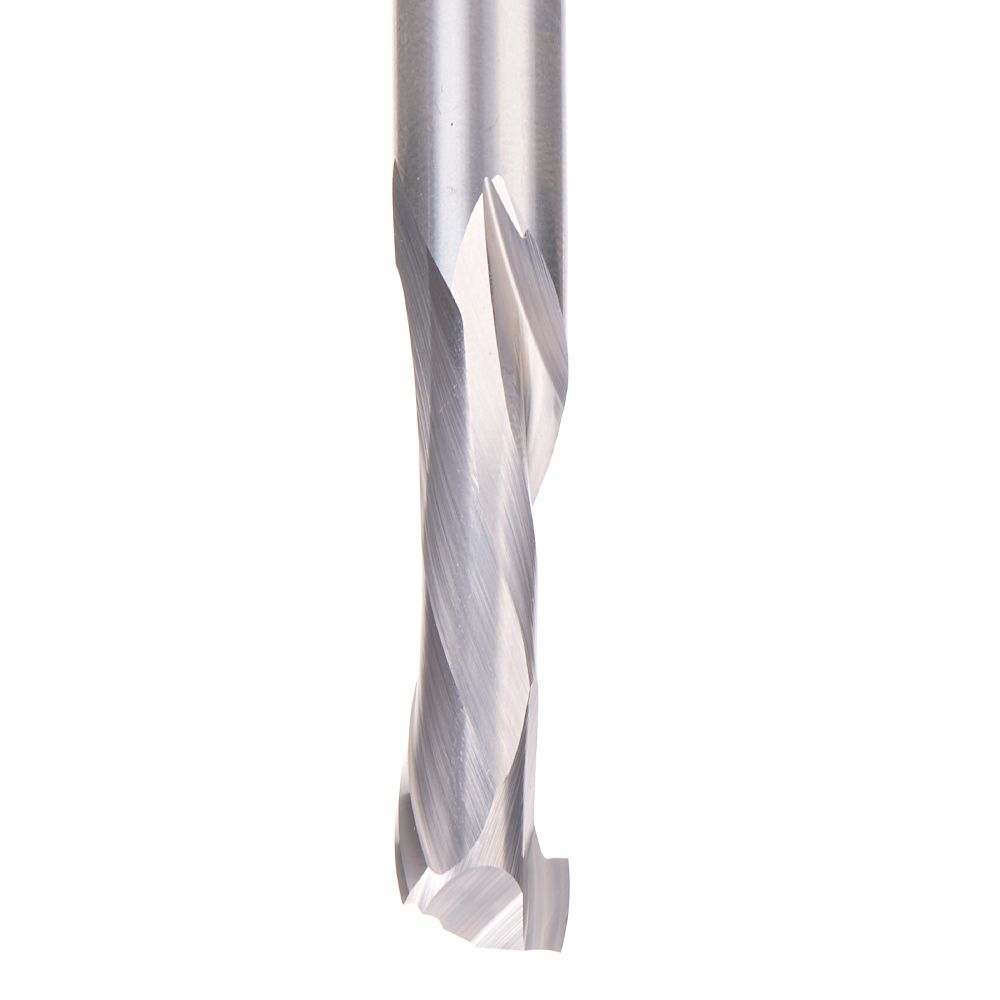

Amana Tool 46038 CNC Solid Carbide Compression Spiral Single Flute 3/8 Dia x 1-1/8 x 3/8 Inch Shank
- Special unique carbide for longer lifetime in abrasive material. Designed for CNC applications requiring high feed rates and a clean finish. Particularly suitable for double-sided melamine or laminated material.
- Laminate
- Laminated Plywood
- Melamine
- Melamine Particle Board
- MDF/HDF
- Oriented Strand Board (OSB)*
- Particle Board
- Softwood/Hardwood
- Veneered Plywood
- *Oriented Strand Board is an engineered wood particle board.
- Recommended RPM 20,000-21,000.
- Solid Carbide Compression Spiral Speed and Feed Chart
| Cutting Diameter | 3/8 |
|---|---|
| Shank | 3/8 |
| Cutting Length | 1-1/8 |
| Overall Length | 3 |
| Number of Flutes | 1 |
| (B1) | .200" |
