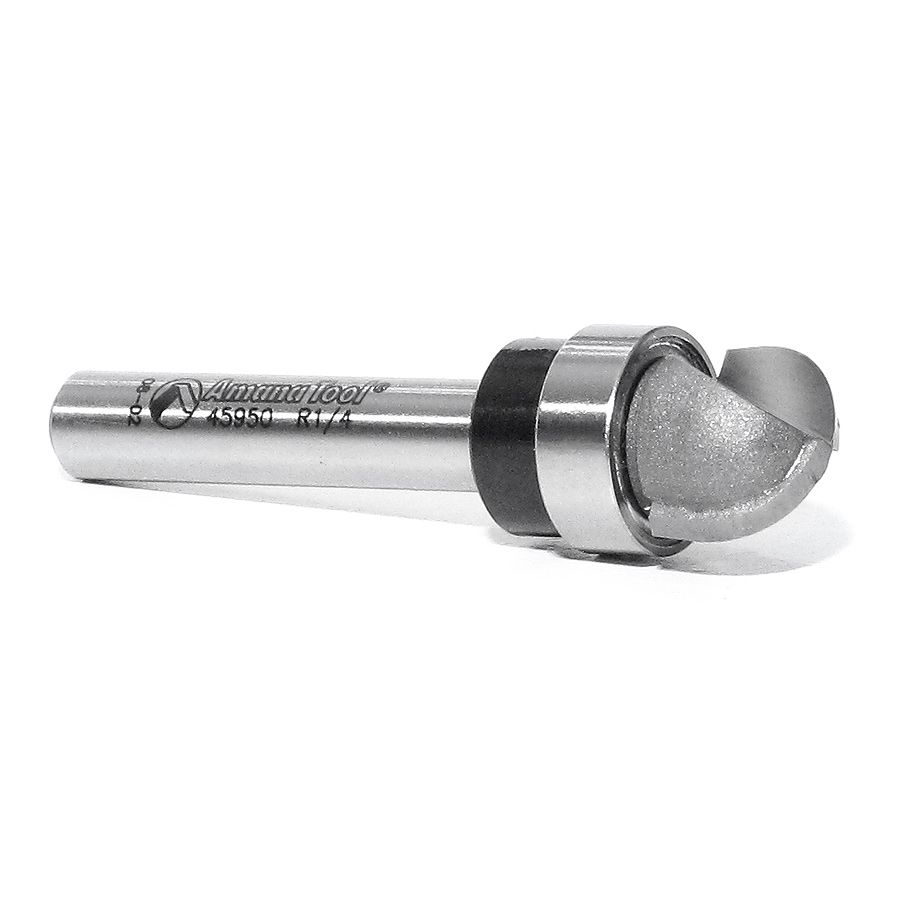

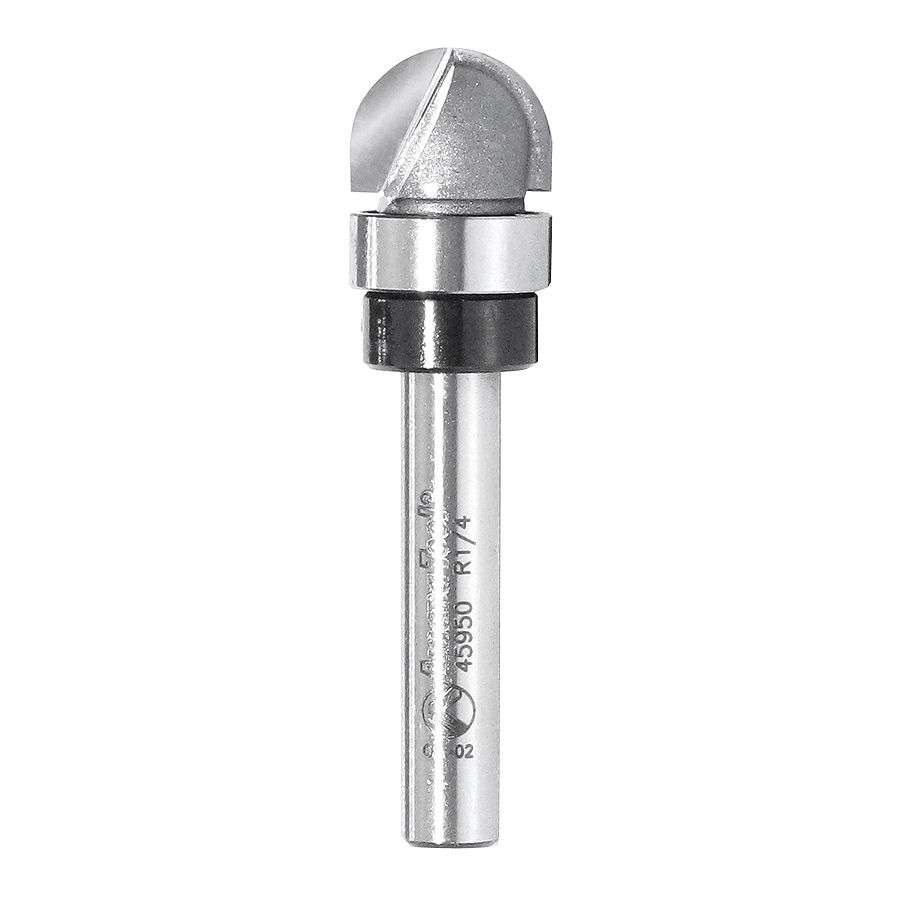

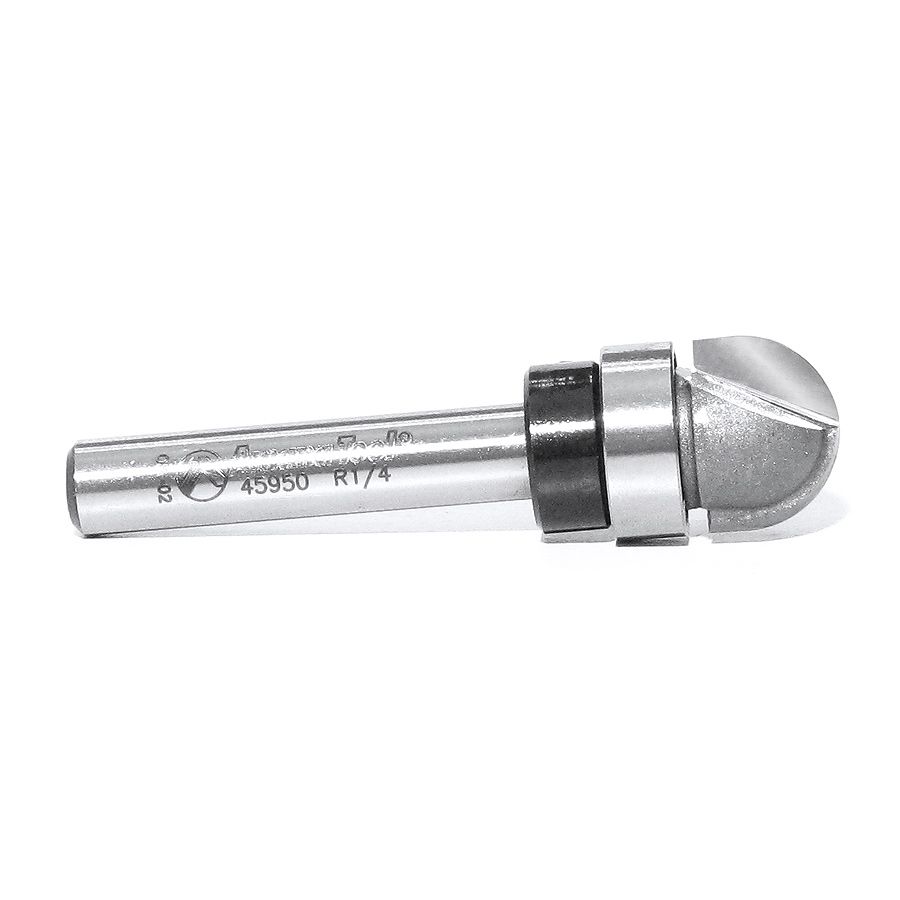

Amana Tool 45950 Carbide Tipped Core Box 1/4 Radius x 1/2 Dia x 3/8 x 1/4 Inch Shank with Upper BB
- Designed for fluting and 'V' grooving cuts guided by a template or pattern. The shank-mounted ball-bearing pilot rides along the template edge, and the cutter duplicates the template contour in the workpiece. With a handheld router, the template must be on top of the workpiece. With a table-mounted router, the template must be on bottom of the workpiece.
- Tool No.
- Bearing(s)
- Collar w/Set Screw
- 45950
- 47701
- 47724
- 45950 DXF
- File Size : 396.84 KB
| Replacements | 47701 |
|---|---|
| Radius 1 (R1) | 1/4 |
| Cutting Diameter | 1/2 |
| Shank | 1/4 |
| Cutting Length | 3/8 |
| Overall Length | 2 |
| Number of Flutes | 2 |
