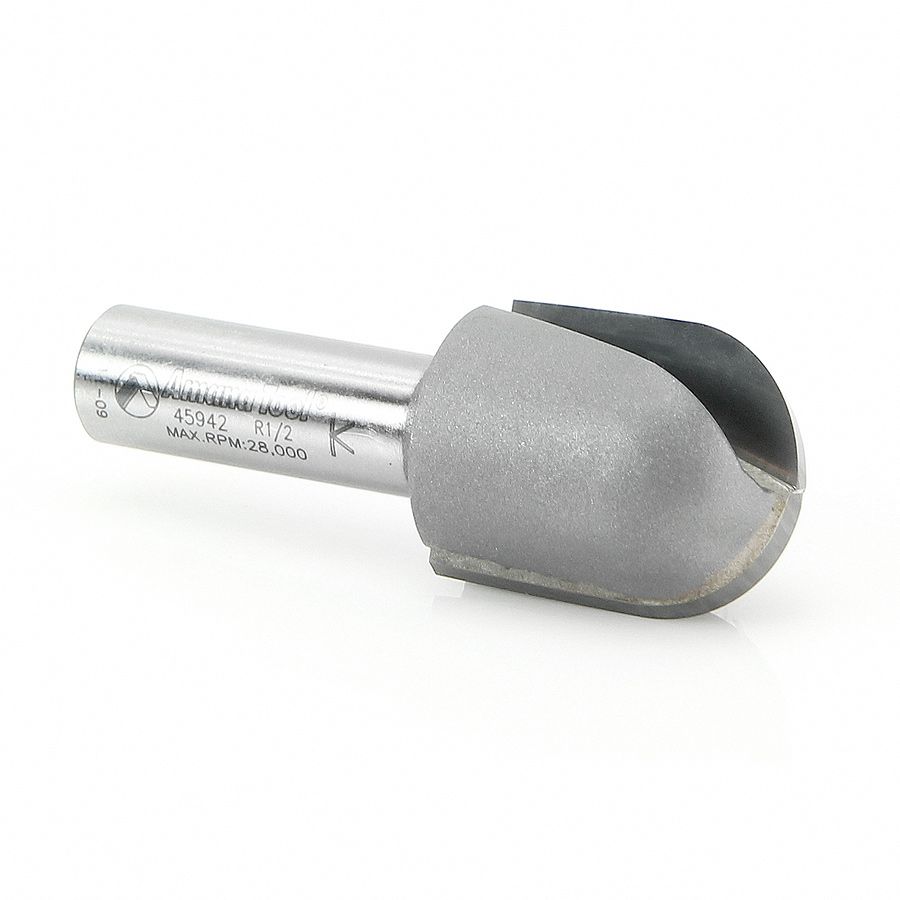

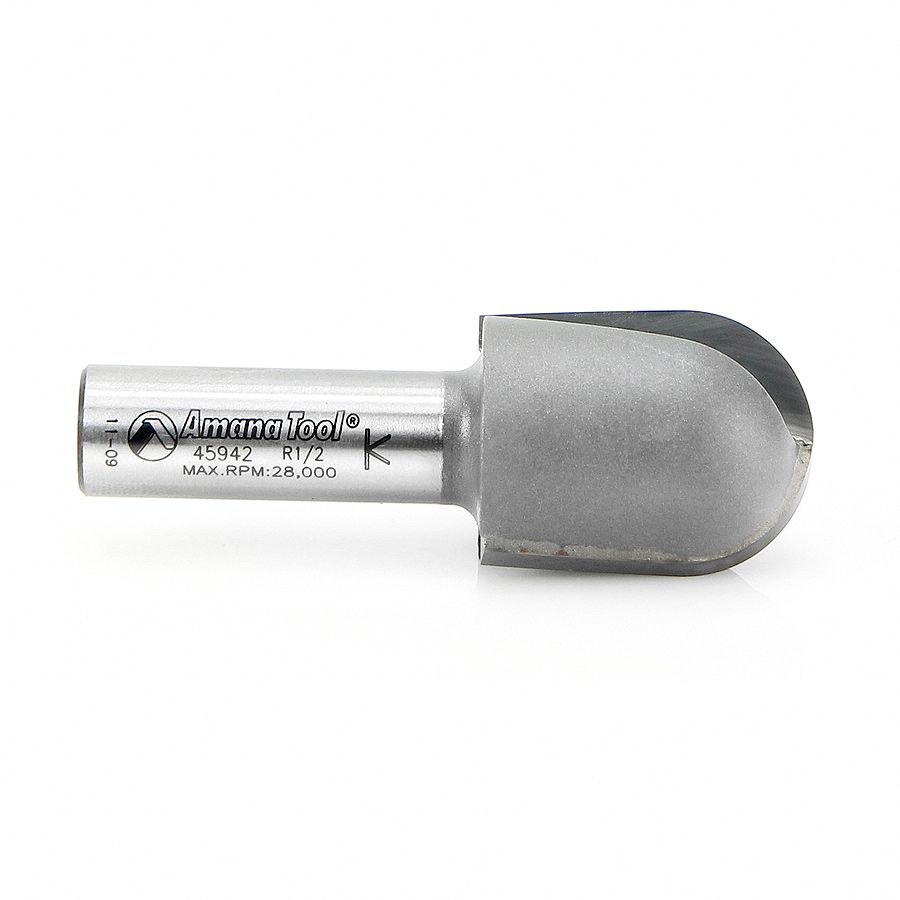

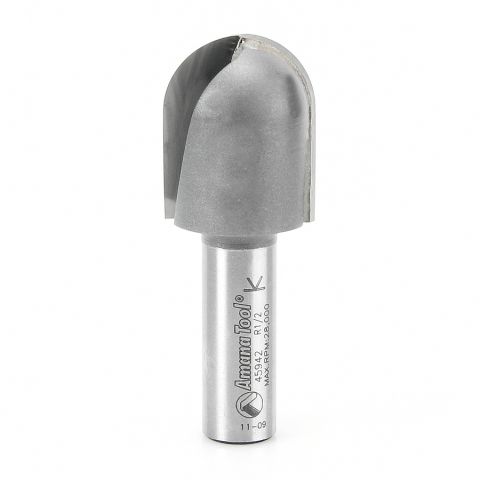

Amana Tool 45942 Carbide Tipped Core Box 1/2 Radius x 1 Inch Dia x 1-1/4 x 1/2 Shank Extra Deep
- Cut much deeper flutes than possible with a regular core box bit. Perfect for making flutes on CNC machines.
- Excellent for cutting:
- High Density Urethane (HDU Board)
- Laminate
- MDF
- Softwood/Hardwood
- Veneered Plywood
- Fusion 360 compatible tool file for 45942 available for download, click here.
- 45942 DXF
- File Size : 131.47 KB
| Radius 1 (R1) | 1/2 |
|---|---|
| Cutting Diameter | 1 |
| Shank | 1/2 |
| Cutting Length | 1-1/4 |
| Overall Length | 2-3/4 |
| Number of Flutes | 2 |
