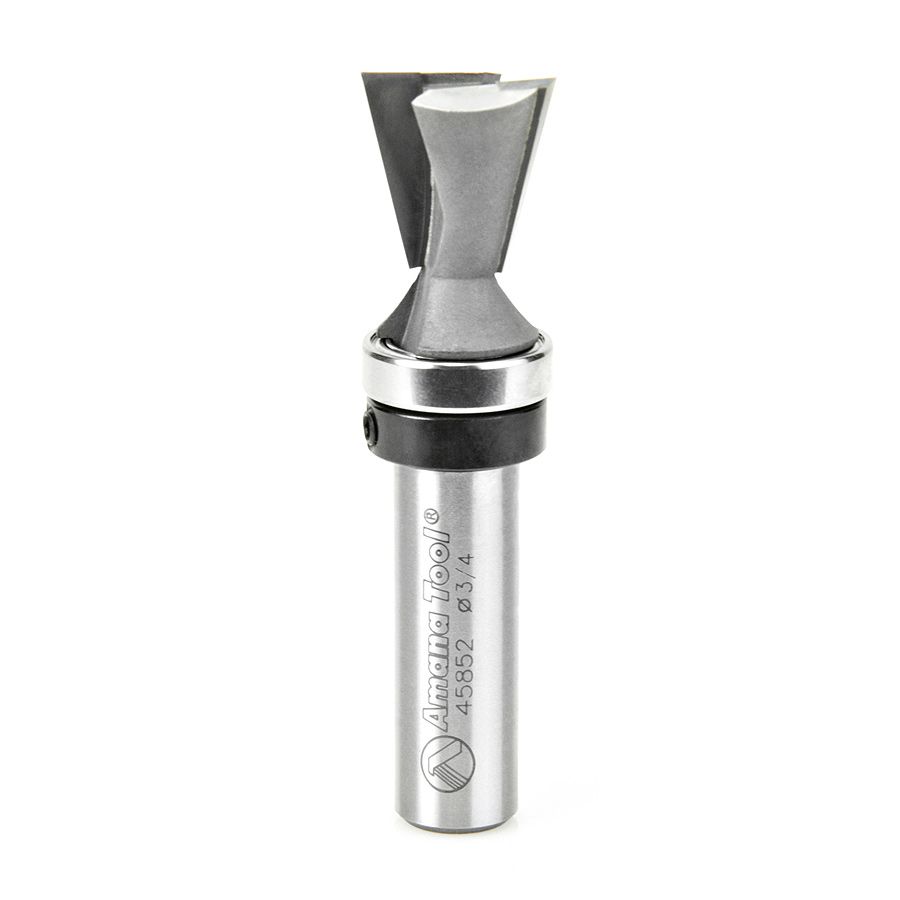

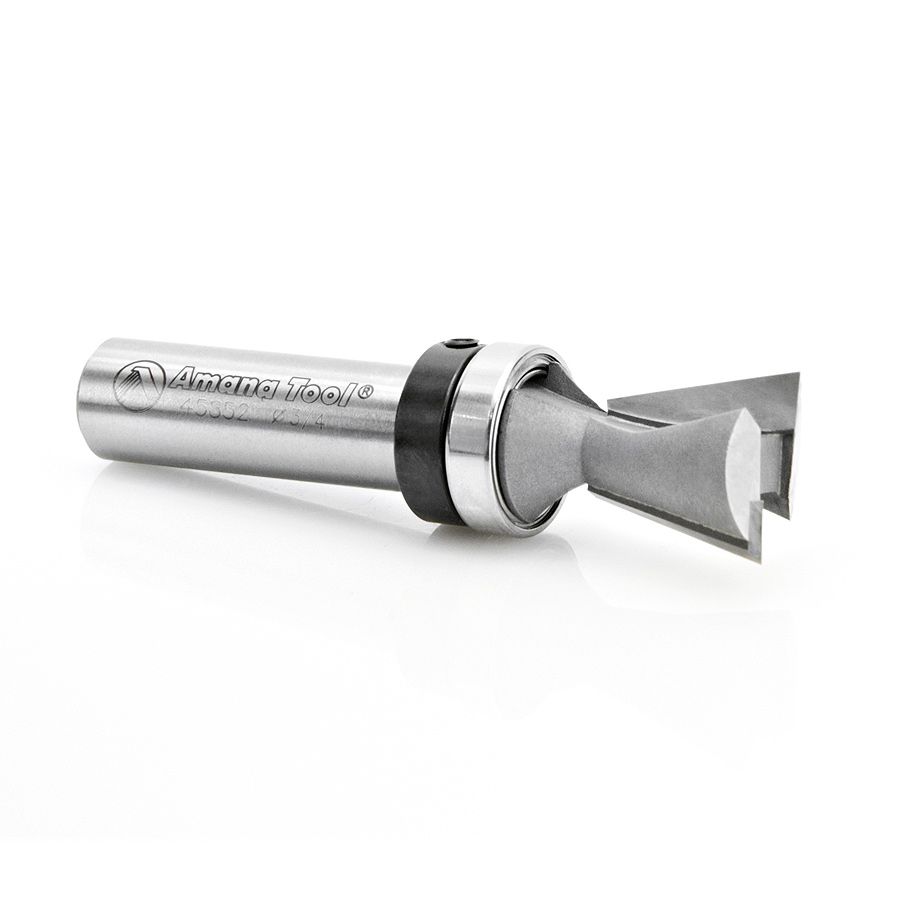

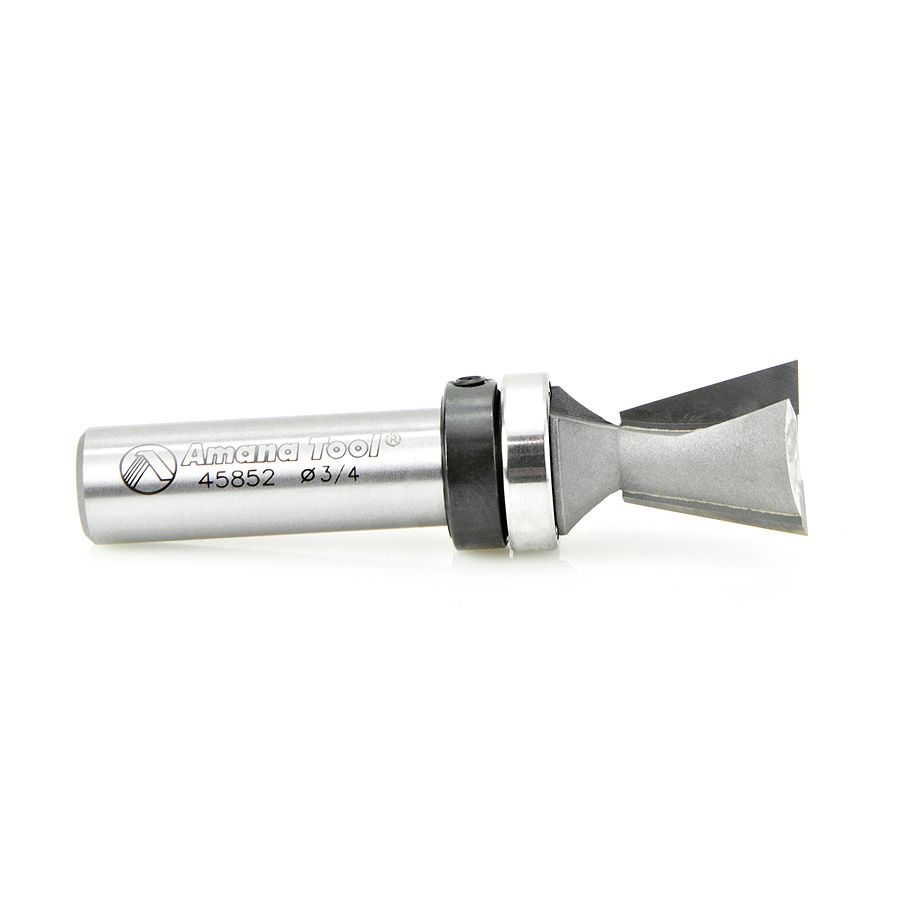

Amana Tool 45852 Carbide Tipped Dovetail 14 Deg x 3/4 Dia x 3/4 x 1/2 Inch Shank with Upper BB
- This dovetail bit has a shank-mounted ball bearing guide for routing dovetail slots following a template and pattern routing. The template must be mounted between the workpiece and the router. With a handheld router, the template must be on top of the workpiece. With a table-mounted router, the template must be underneath the workpiece.
- For pattern cutting or jigs.
- Tool No.
- Bearing(s)
- Collar w/Set Screw
- 45852
- 47701
- 47739
- 45852 DXF
- File Size : 2.24 MB
| Replacements | 47721 |
|---|---|
| Cutting Diameter | 3/4 |
| Shank | 1/2 |
| Cutting Length | 3/4 |
| Overall Length | 3 |
| Number of Flutes | 2 |
| a° | 14° |
