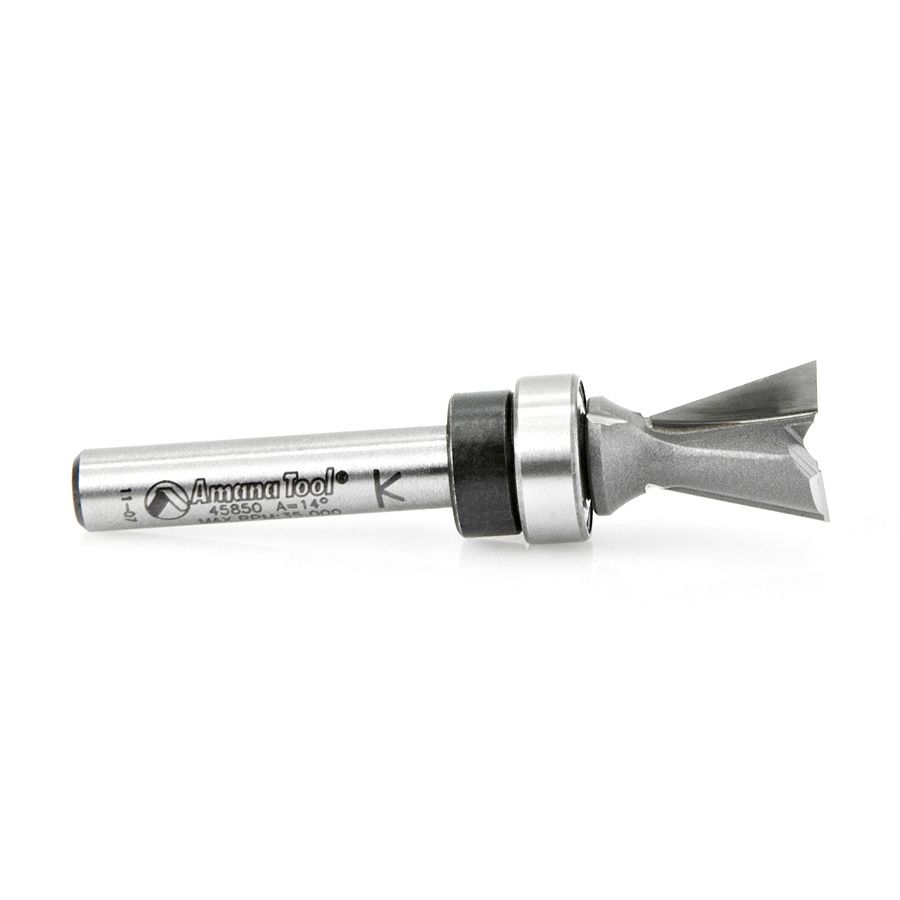

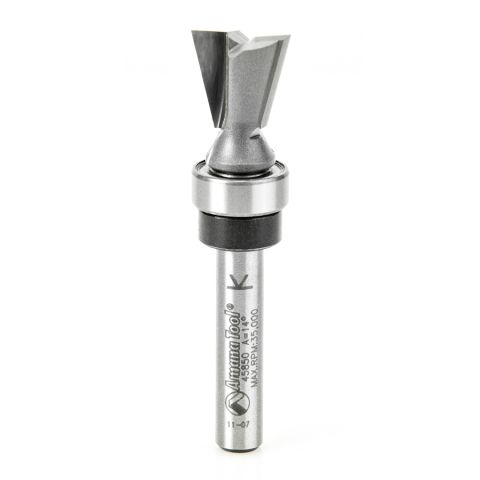

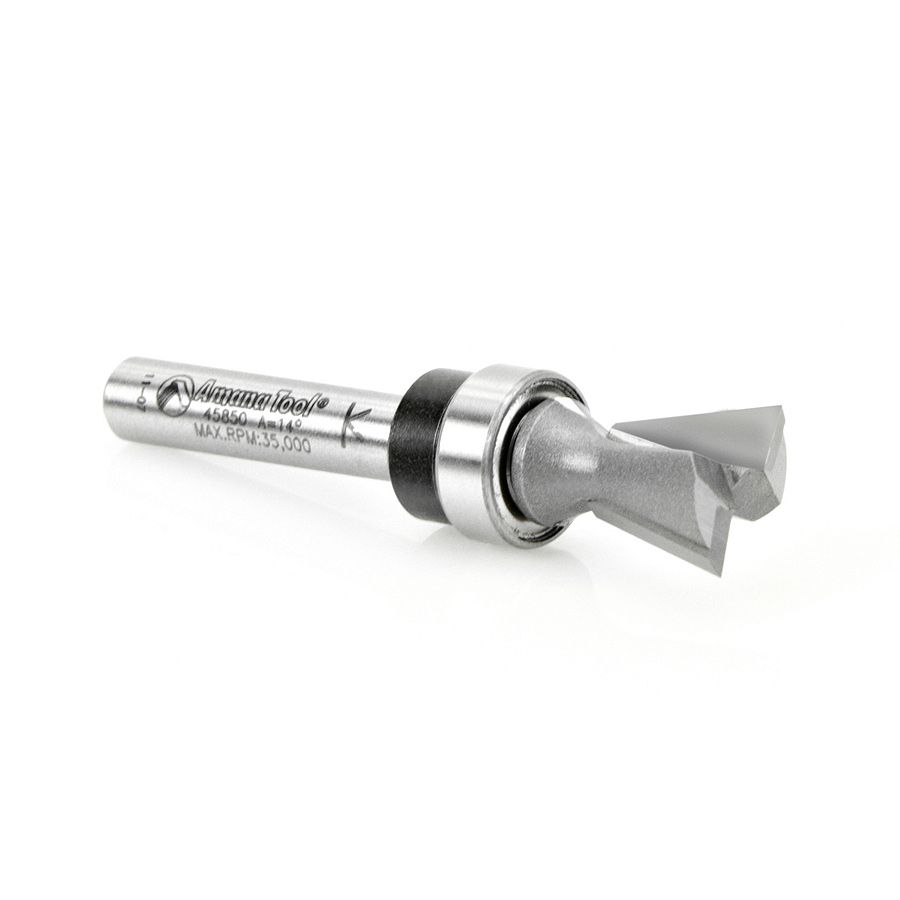

Amana Tool 45850 Carbide Tipped Dovetail 14 Deg x 1/2 Dia x 1/2 x 1/4 Inch Shank with Upper BB
- This dovetail bit has a shank-mounted ball bearing guide for routing dovetail slots following a template and pattern routing. The template must be mounted between the workpiece and the router. With a handheld router, the template must be on top of the workpiece. With a table-mounted router, the template must be underneath the workpiece.
- Tool No.
- Bearing(s)
- Collar w/Set Screw
- 45850
- 47701
- 47724
| Replacements | 47701 |
|---|---|
| Cutting Diameter | 1/2 |
| Shank | 1/4 |
| Cutting Length | 1/2 |
| Overall Length | 2-1/4 |
| Number of Flutes | 2 |
| a° | 14° |
