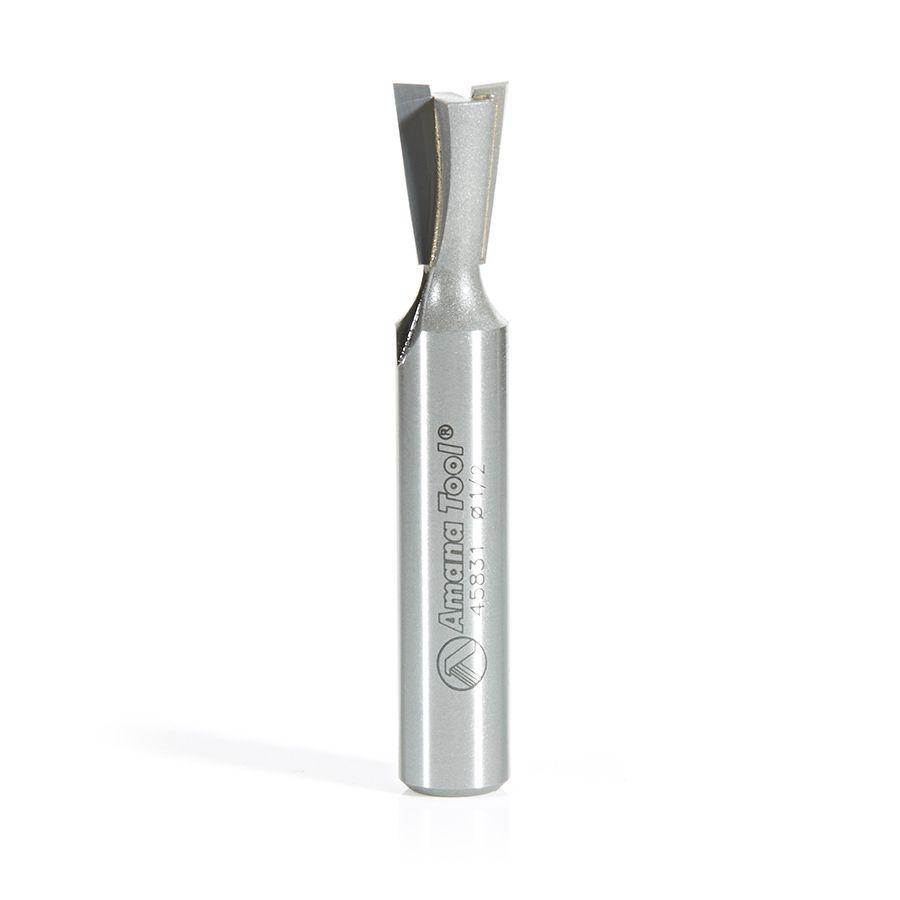

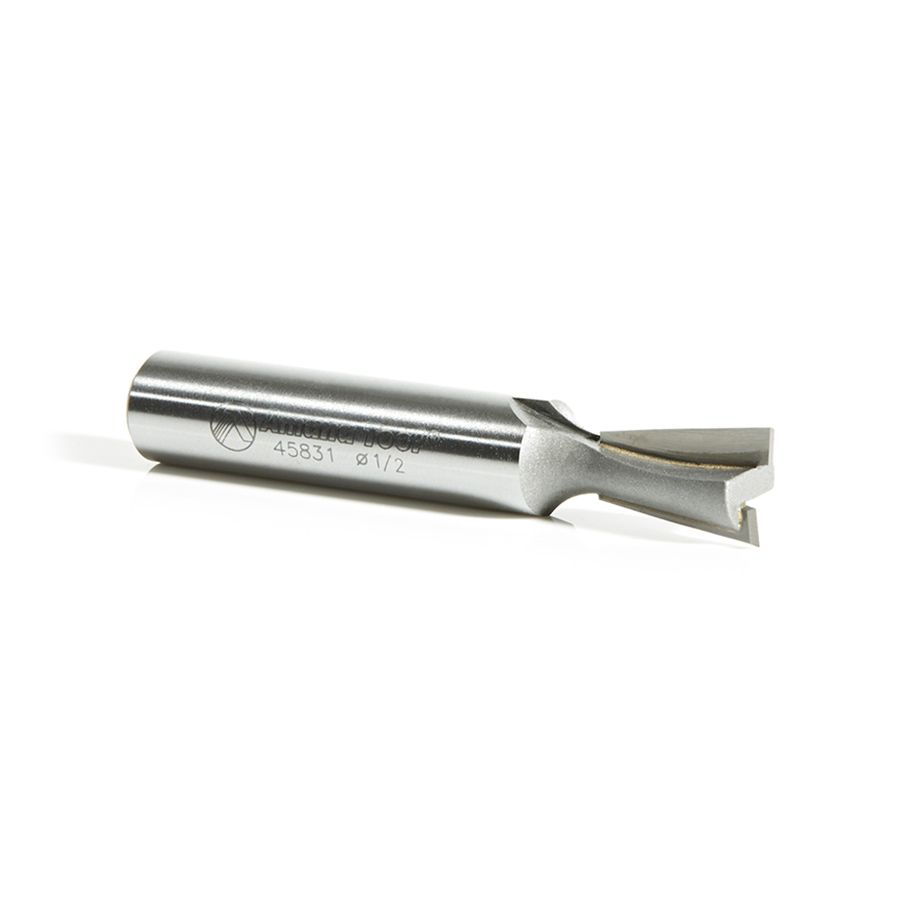

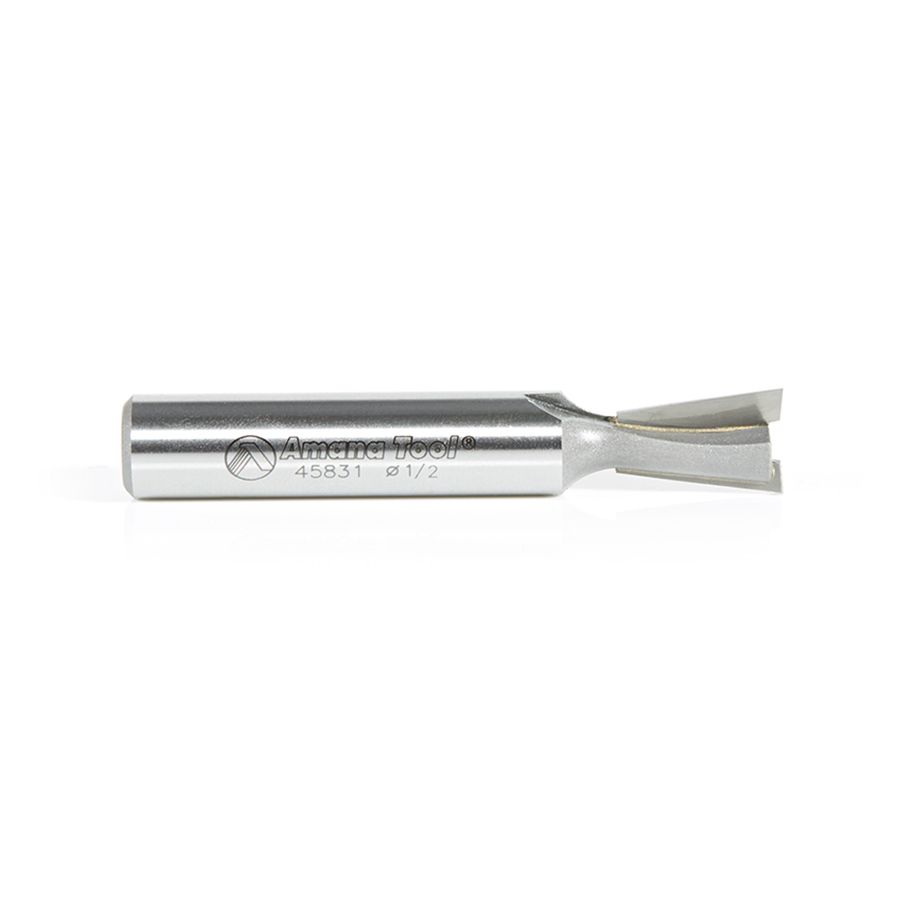

Amana Tool 45831 Carbide Tipped Dovetail 7 Deg x 1/2 Dia x 25/32 x 1/2 Inch Shank Router Bit for Omni Jig Joinery System
- For the Keller™ Dovetail Templates and certain Incra® applications, 7° dovetail bits are required. (Bits for the Keller™ system are supplied with shank-mounted bearings.) This angle is also used in cutting stair stringers.
| Cutting Diameter | 1/2 |
|---|---|
| Shank | 1/2 |
| Cutting Length | 25/32 |
| Overall Length | 3-1/8 |
| Application | Omnijig® Joinery System |
| Number of Flutes | 2 |
| a° | 7° |
