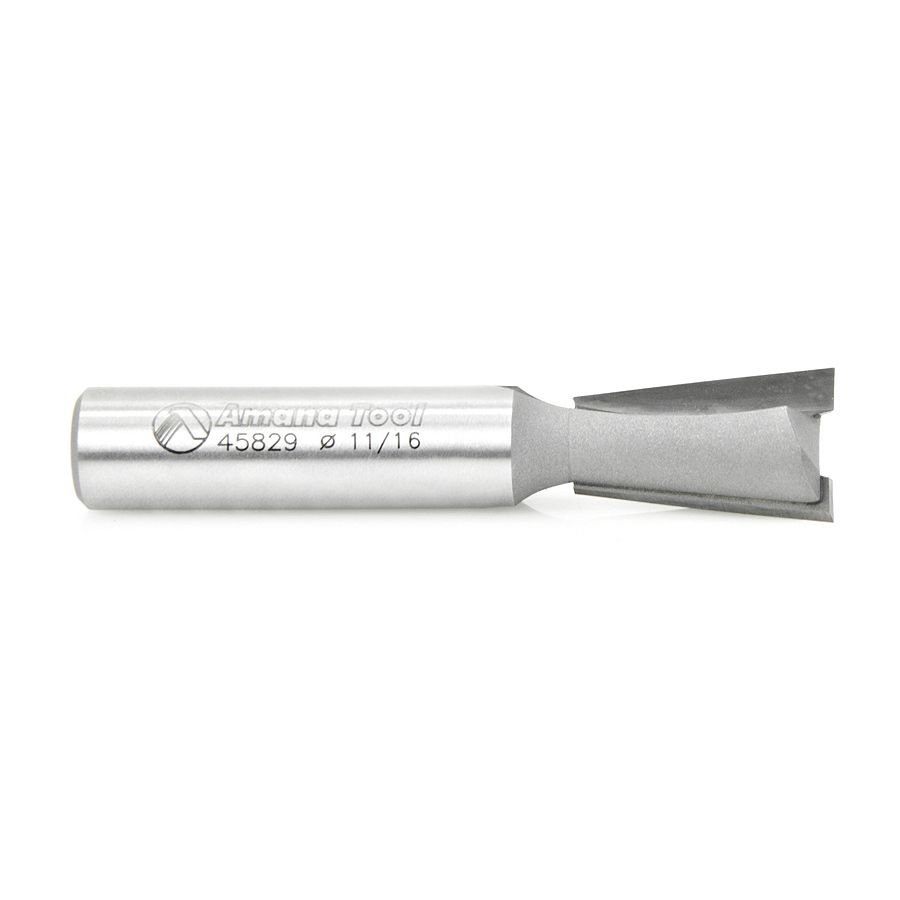

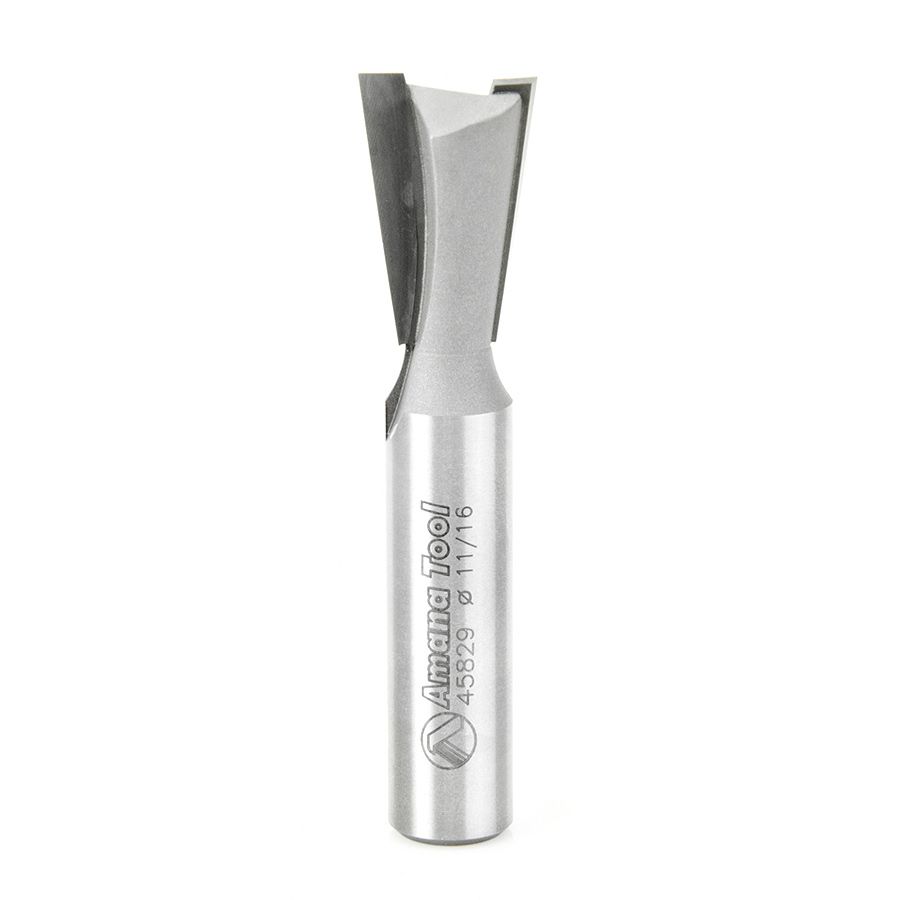

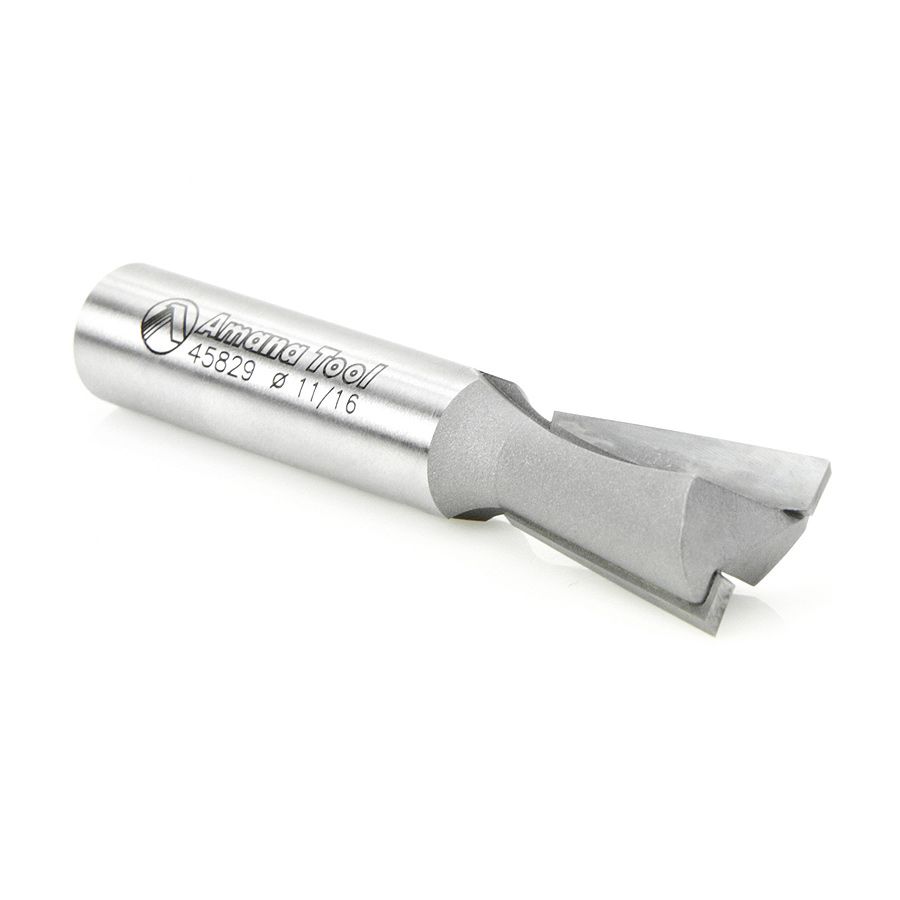

Amana Tool 45829 Carbide Tipped Dovetail 8 Deg x 11/16 Dia x 1.025 x 1/2 Inch Shank
- These 8° dovetail bits are designed especially for use with the Leigh® Dovetail Jig.
- Fusion 360 compatible tool files for 45829 available for download, click here.
- 45829 DXF
- File Size : 308.21 KB
| Cutting Diameter | 11/16 |
|---|---|
| Shank | 1/2 |
| Cutting Length | 1.025 |
| Overall Length | 3 |
| Application | Leigh® #90 |
| Number of Flutes | 2 |
| a° | 8° |
