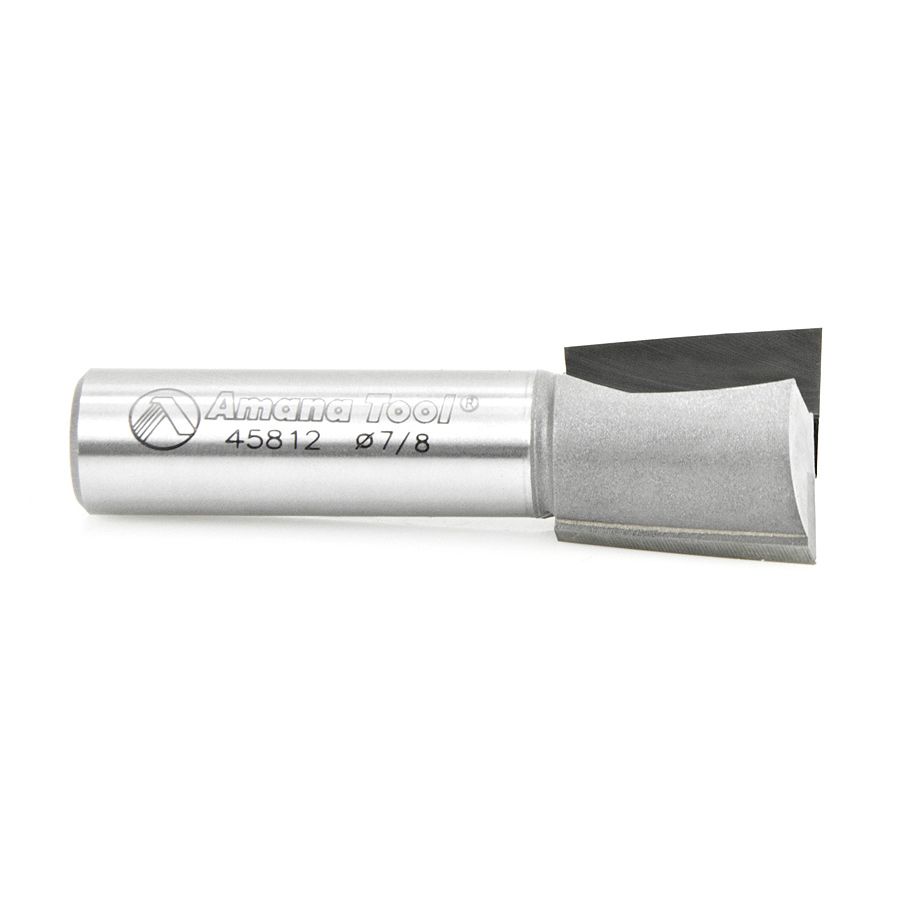

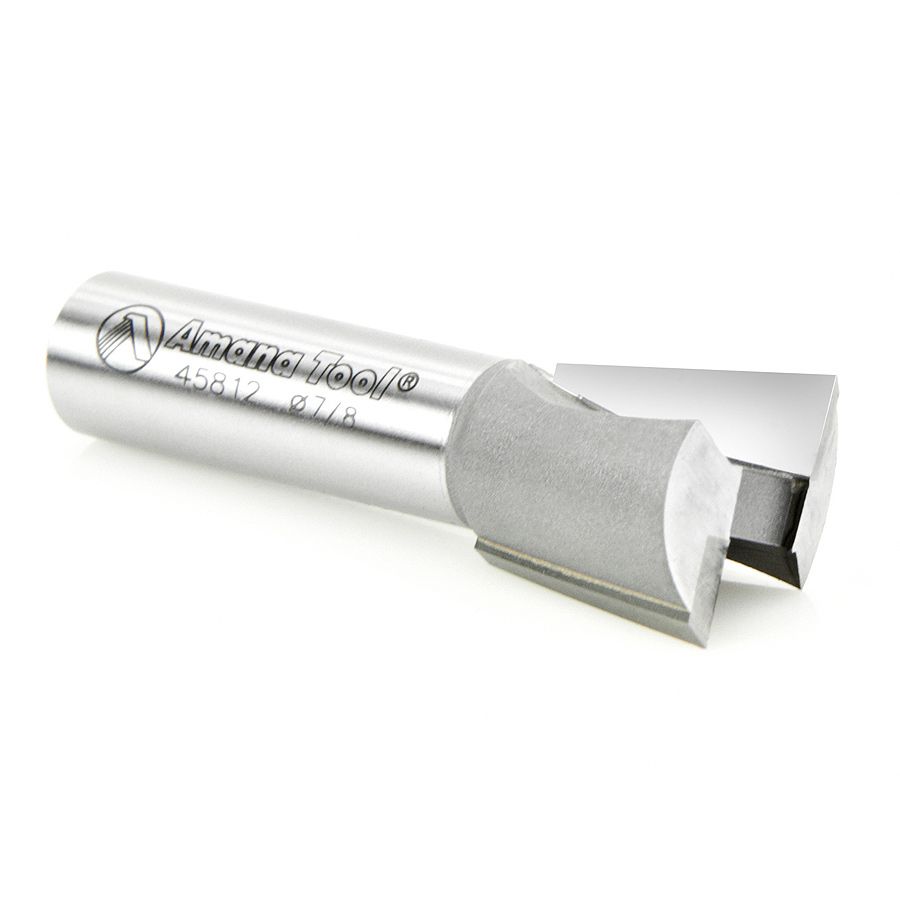

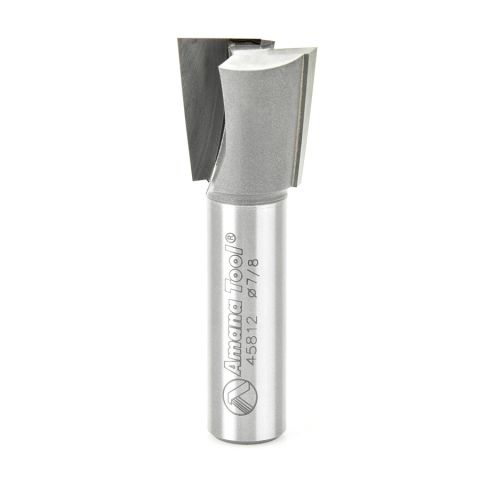

Amana Tool 45812 Carbide Tipped Stair Tread R/H Dovetail 7 Deg x 7/8 Dia x 7/8 x 1/2 Inch Shank
- For the Keller™ Dovetail Templates and certain Incra® applications, 7° dovetail bits are required. (Bits for the Keller™ system are supplied with shank-mounted bearings.) This angle is also used in cutting stair stringers.
- Fusion 360 compatible tool files for 45812 available for download, click here.
- 45812 DXF
- File Size : 403.81 KB
| Cutting Diameter | 7/8 |
|---|---|
| Shank | 1/2 |
| Cutting Length | 7/8 |
| Overall Length | 2-1/2 |
| Application | Stair Tread |
| Number of Flutes | 2 |
| a° | 7° |
