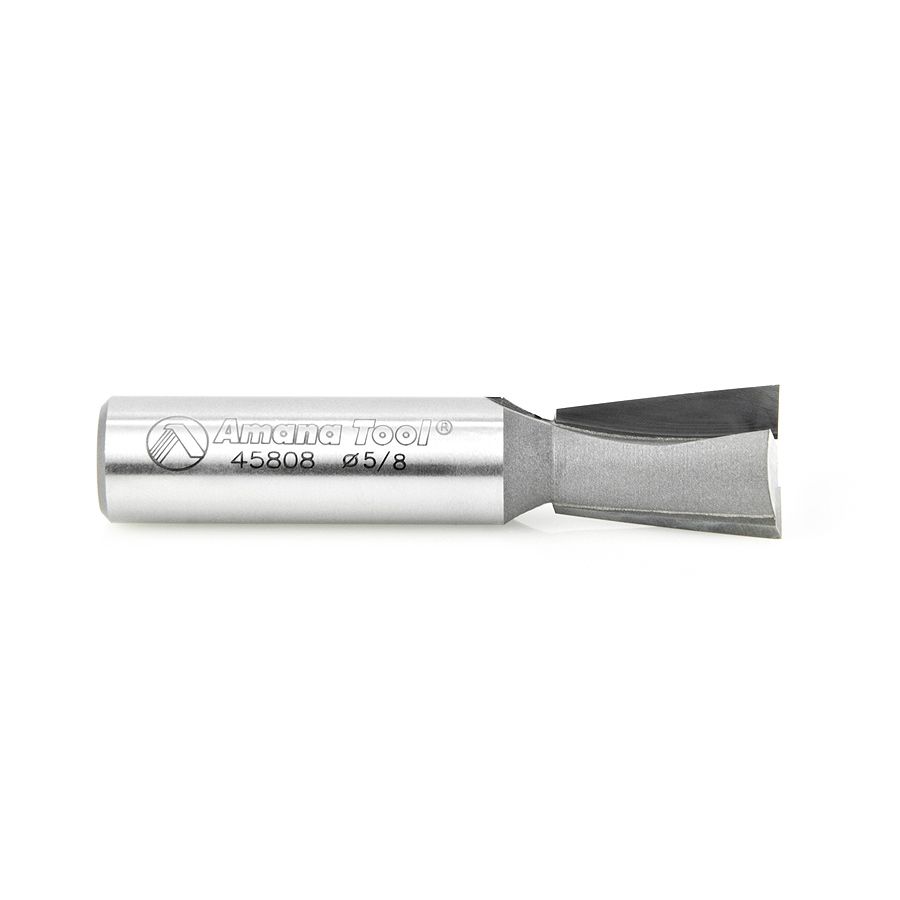

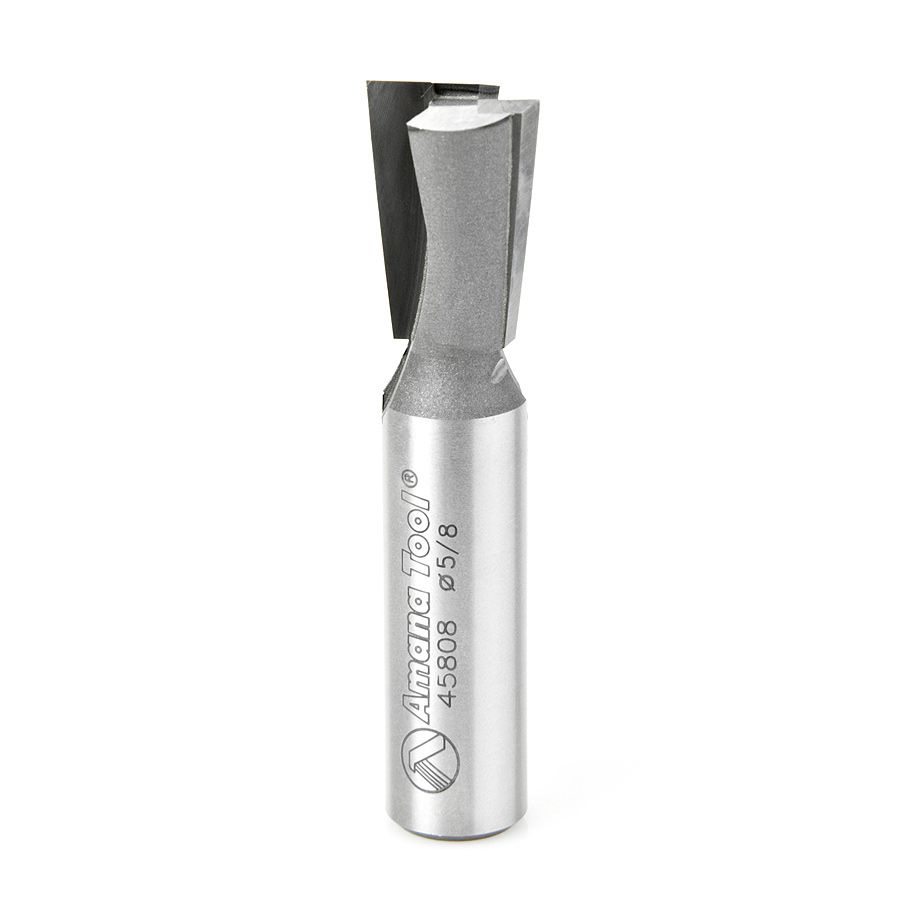

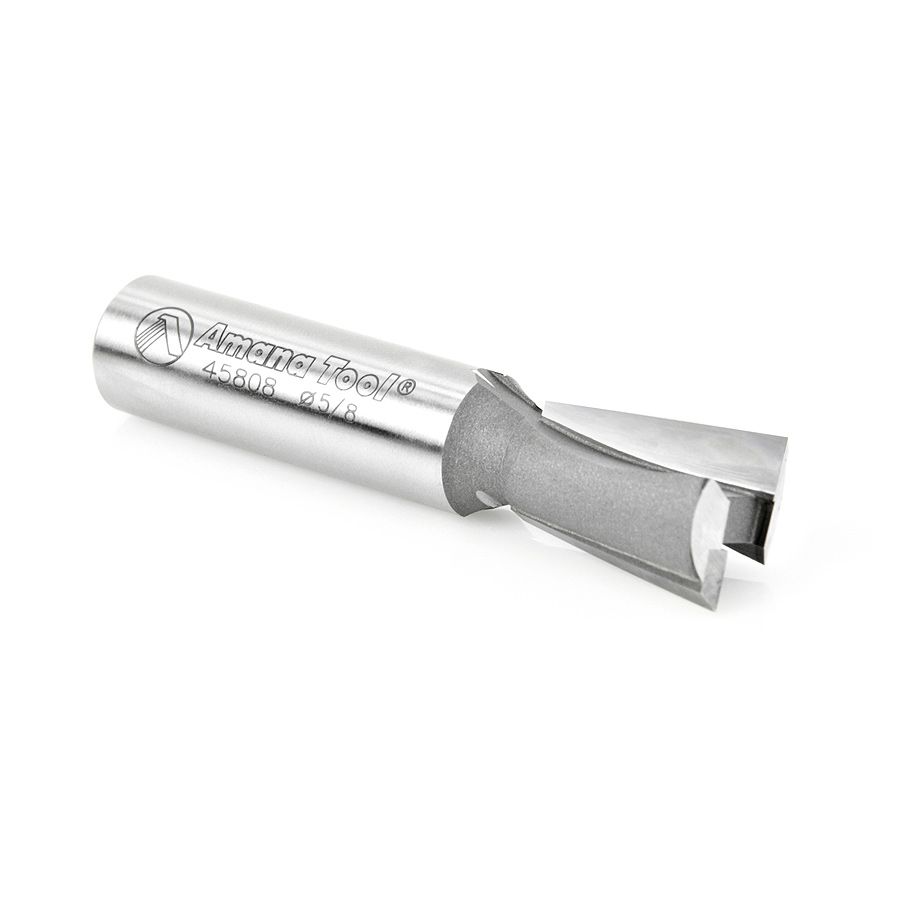

Amana Tool 45808 Carbide Tipped Dovetail 7 Deg x 5/8 Dia x 7/8 x 1/2 Inch Shank
- For the Keller™ Dovetail Templates and certain Incra® applications, 7° dovetail bits are required. (Bits for the Keller™ system are supplied with shank-mounted bearings.) This angle is also used in cutting stair stringers.
- 45808 PDF
- File Size : 64.42 KB
| Cutting Diameter | 5/8 |
|---|---|
| Shank | 1/2 |
| Cutting Length | 7/8 |
| Overall Length | 2-5/8 |
| Application | Incra® |
| Number of Flutes | 2 |
| a° | 7° |
