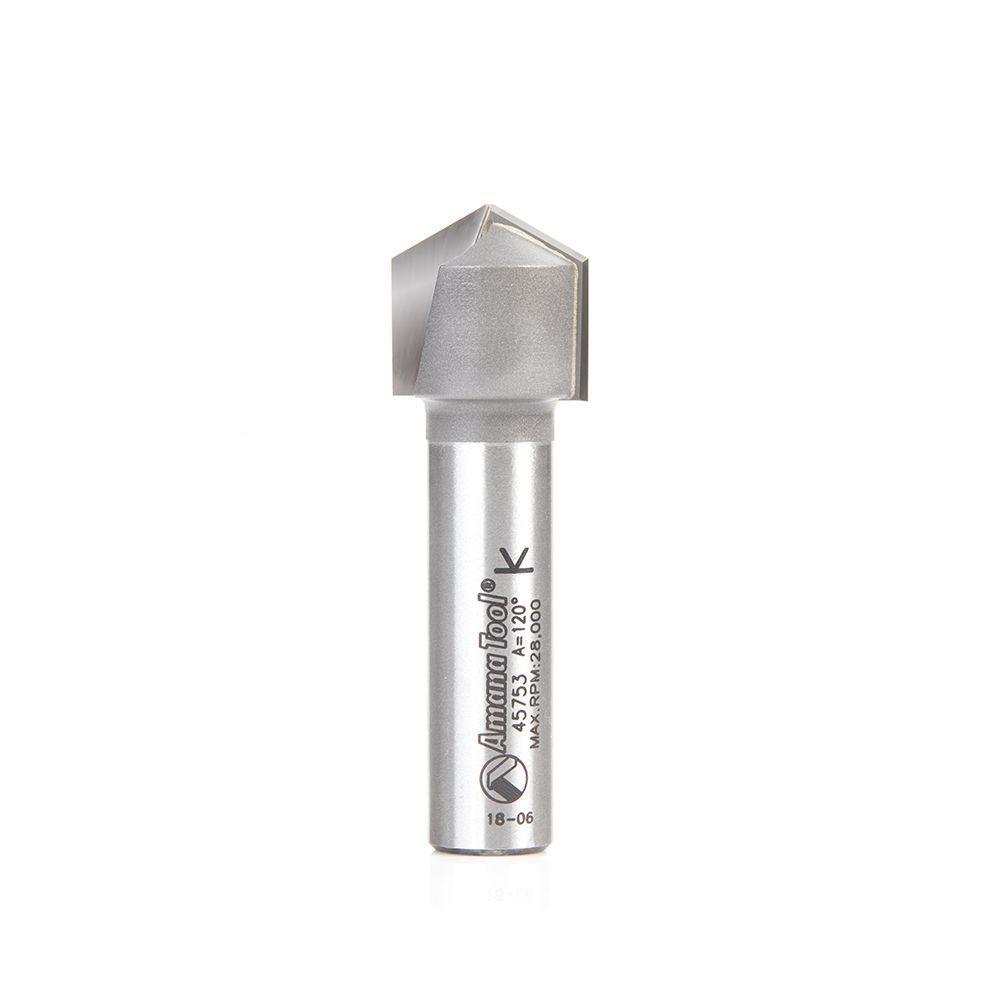

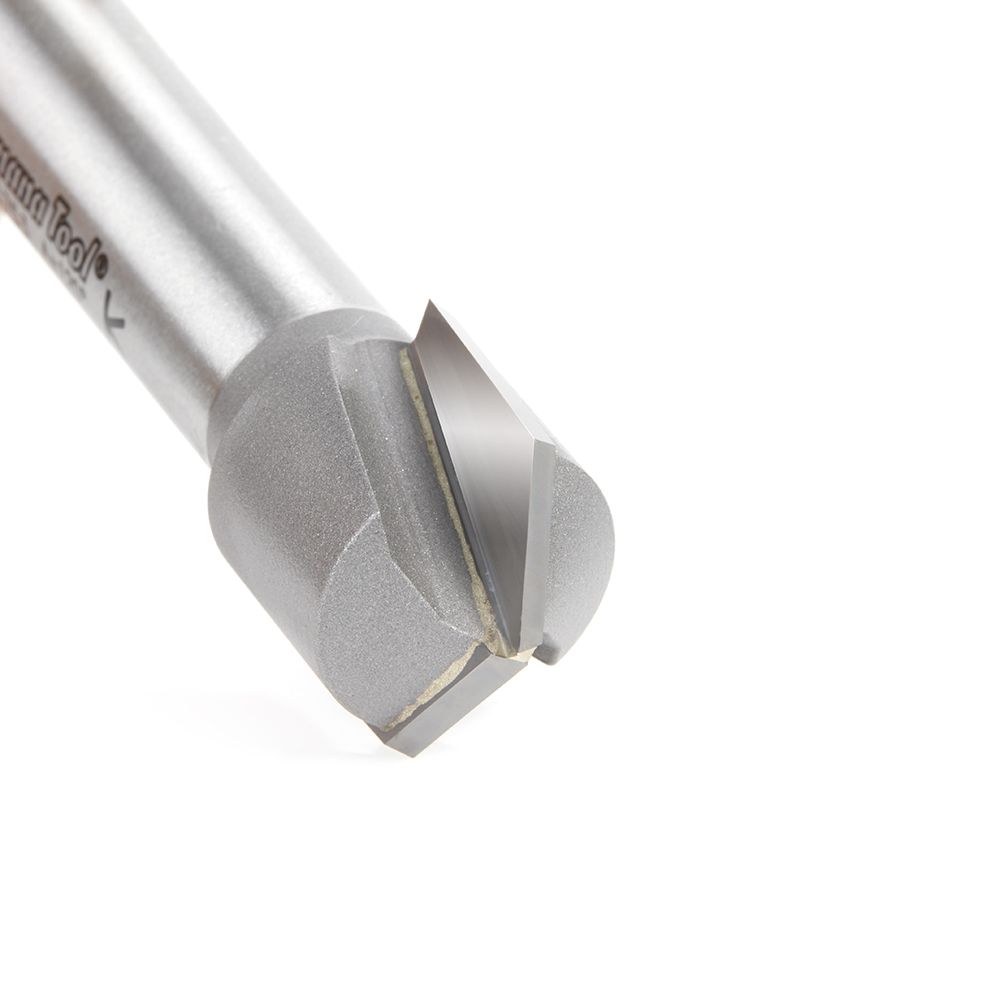

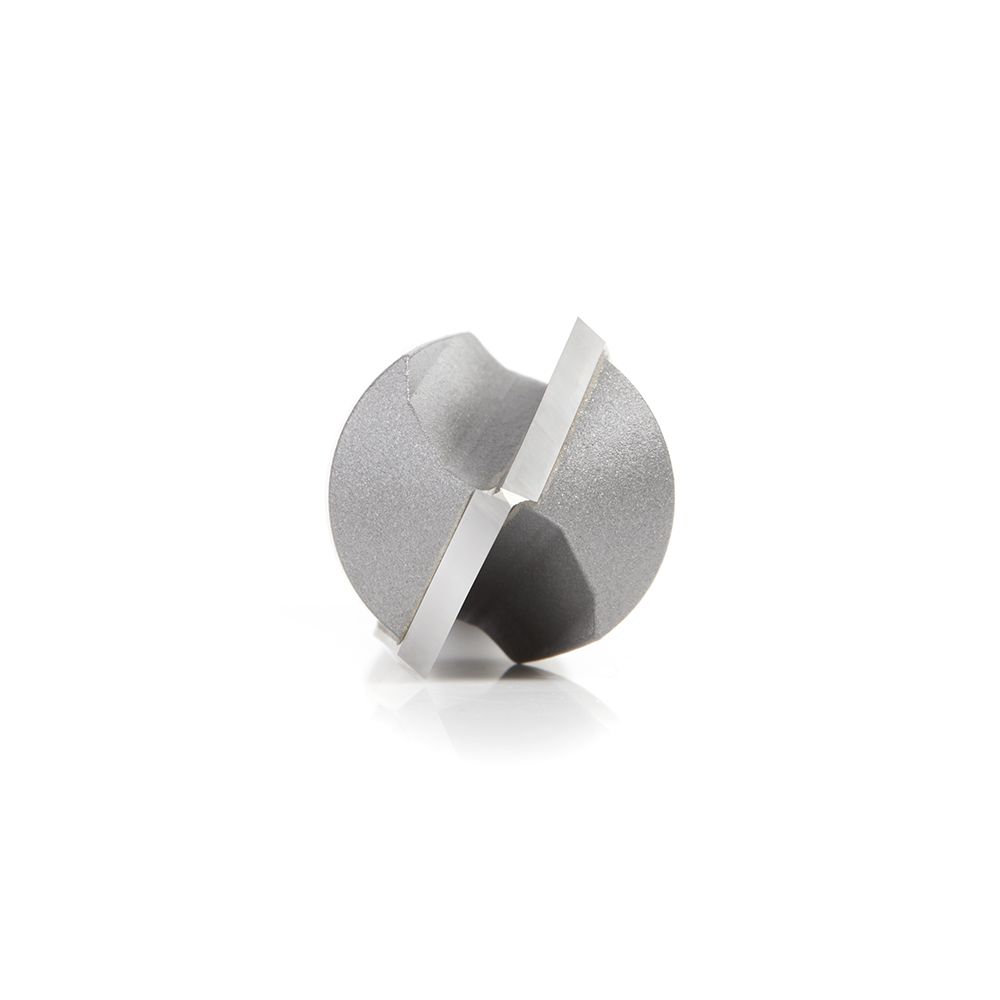

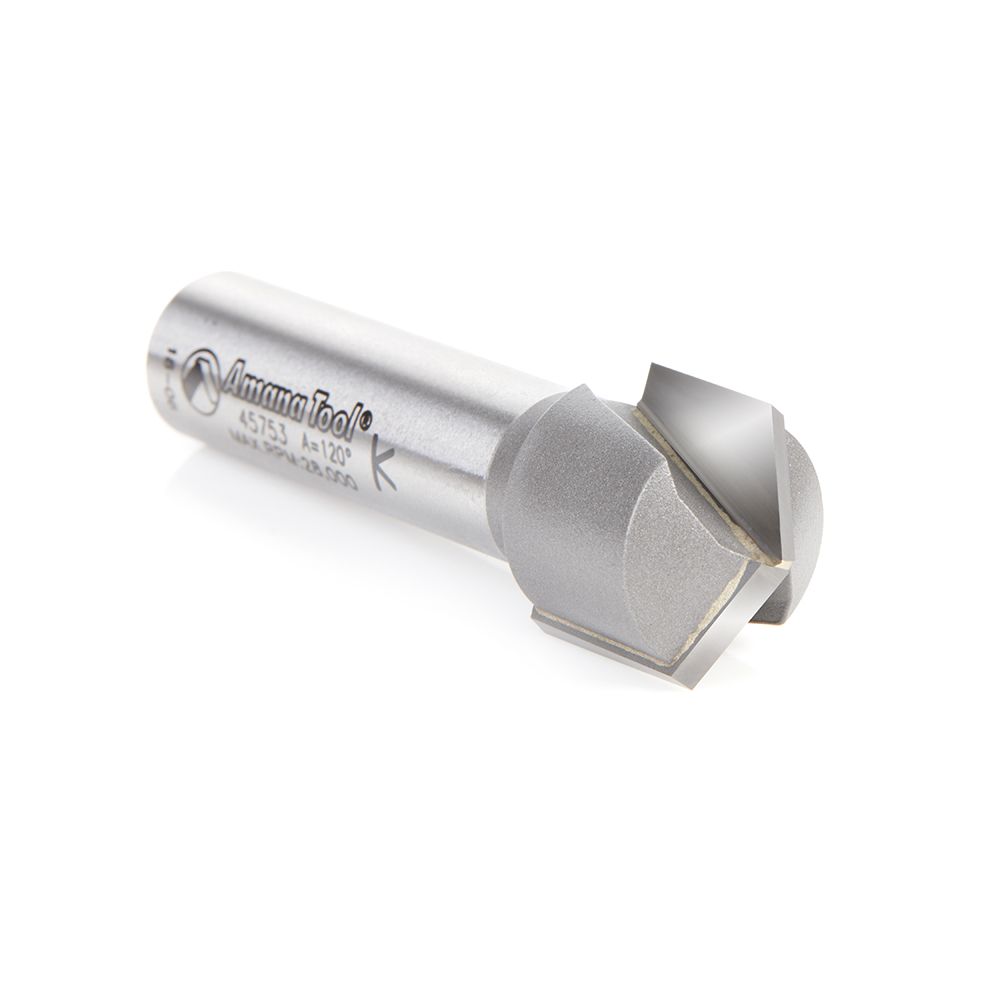

Amana Tool 45753 Carbide Tipped V-Groove 120 Deg x 19.5mm (49/64) Dia x 5mm (13/64) x 12.7mm (1/2) Shank
- Cut decorative V-Grooves and lettering on signs with these V-Groove bits. Use with an edge guide to chamfer and bevel edges. Can be used with handheld, table-mounted and CNC routers.
- Excellent for cutting:
- 20lbs High Density Urethane
- Acrylic
- Composites
- Composite Decking
- Foam
- Laminate
- MDF/HDF
- Melamine
- Plywood
- PVC Plastic
- Sign Board
- Solid Surface
- Veneered Plywood
- Wood
- Xanita® Board
- 45753 DXF
- File Size : 477.39 KB
| Cutting Diameter | 19.5mm (49/64) |
|---|---|
| Shank | 12.7mm (1/2) |
| Cutting Length | 5mm (13/64) |
| Overall Length | 64.294mm (2-17/32) |
| Number of Flutes | 2 |
| a° | 120° |
| (B1) | 19.05mm (3/4) |
