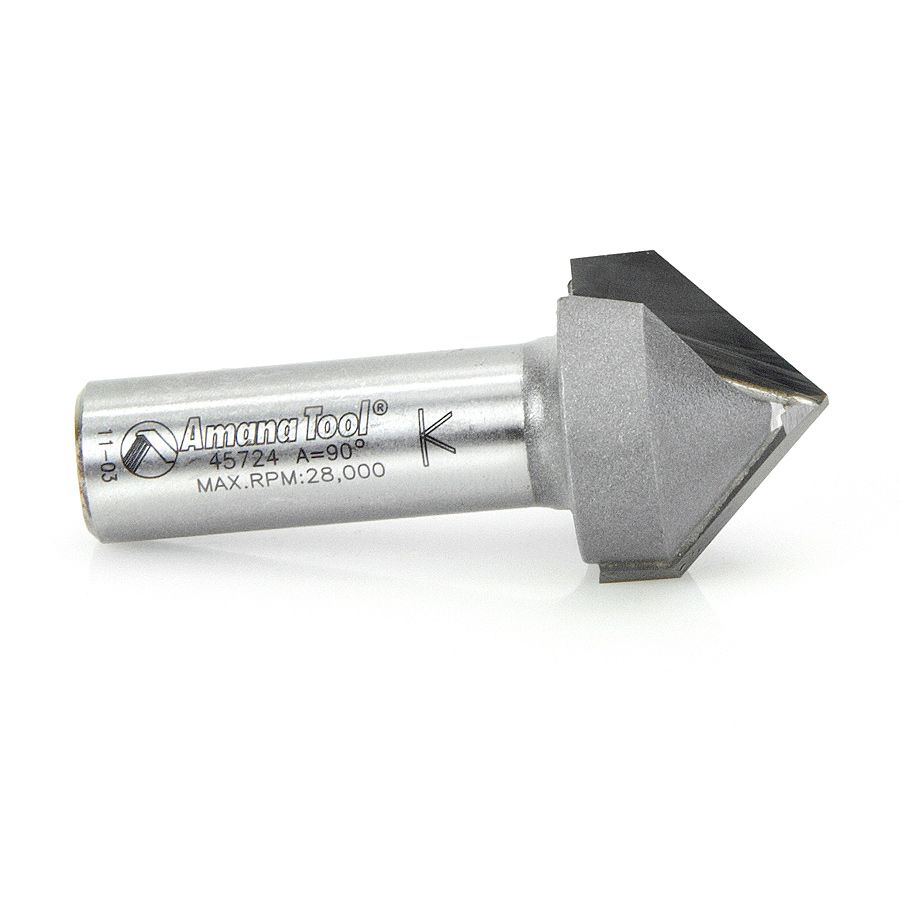

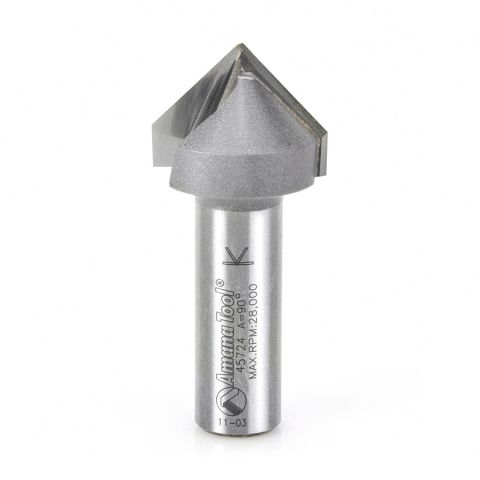

Amana Tool 45724 Carbide Tipped V-Groove 90 Deg x 1 Inch Dia x 1/2 x 1/2 Shank
- Cut decorative V-Grooves and lettering on signs with these V-Groove bits. Use with an edge guide to chamfer and bevel edges. Can be used with handheld, table-mounted and CNC routers.
- Excellent for cutting:
- 20lbs High Density Urethane
- Acrylic
- Composites
- Composite Decking
- Foam
- Laminate
- MDF/HDF
- Melamine
- Plywood
- PVC Plastic
- Sign Board
- Solid Surface
- Veneered Plywood
- Wood
- Xanita® Board
- Vectric and Fusion 360 tool files for 45724 available for download, click here.
- 45724 DXF
- File Size : 434.23 KB
| Cutting Diameter | 1 |
|---|---|
| Shank | 1/2 |
| Cutting Length | 1/2 |
| Overall Length | 2-1/4 |
| Number of Flutes | 2 |
| a° | 90° |
| (B1) | 3/4 |
