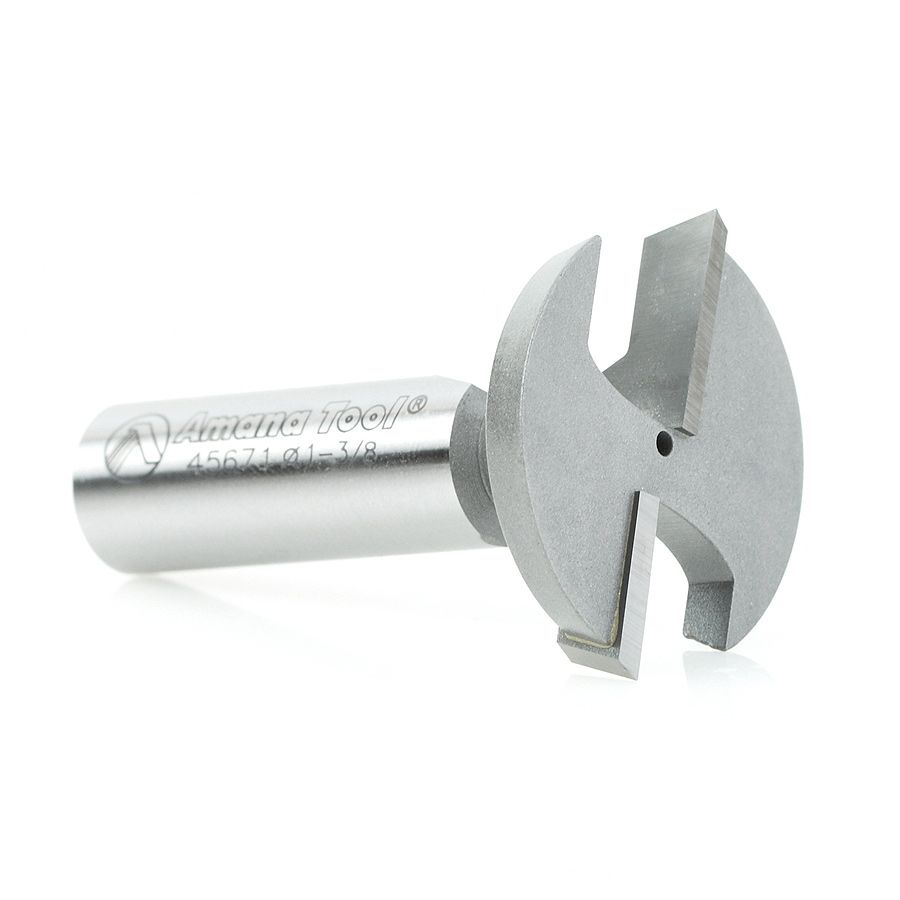

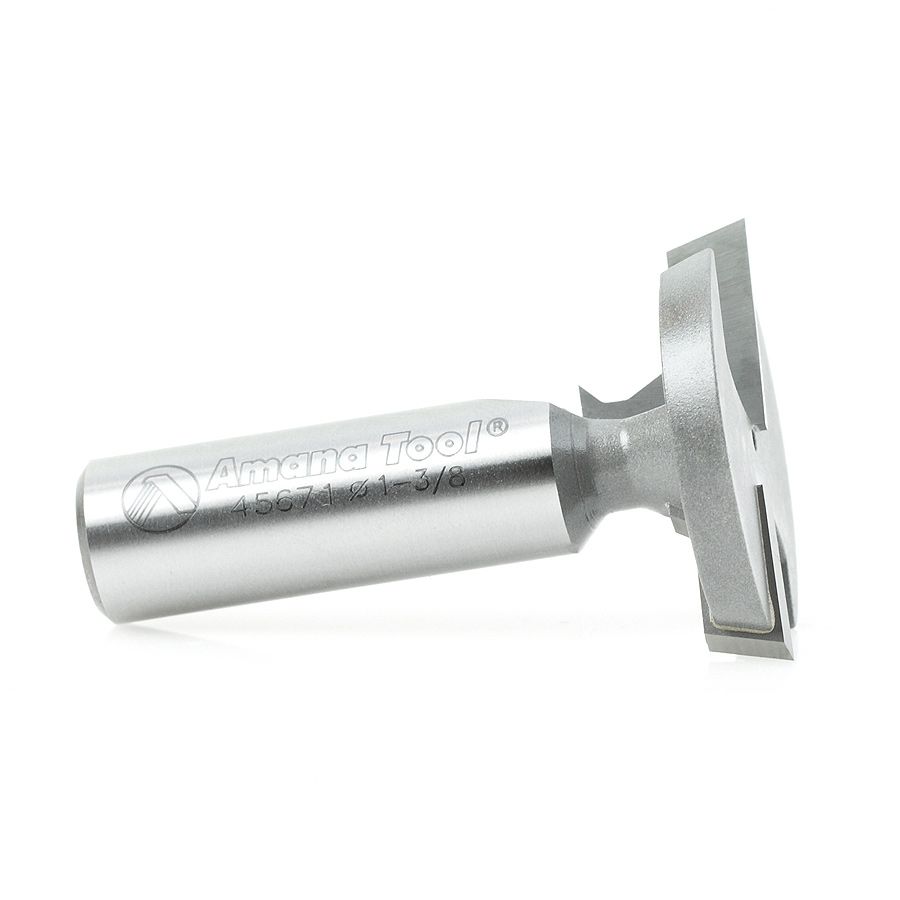

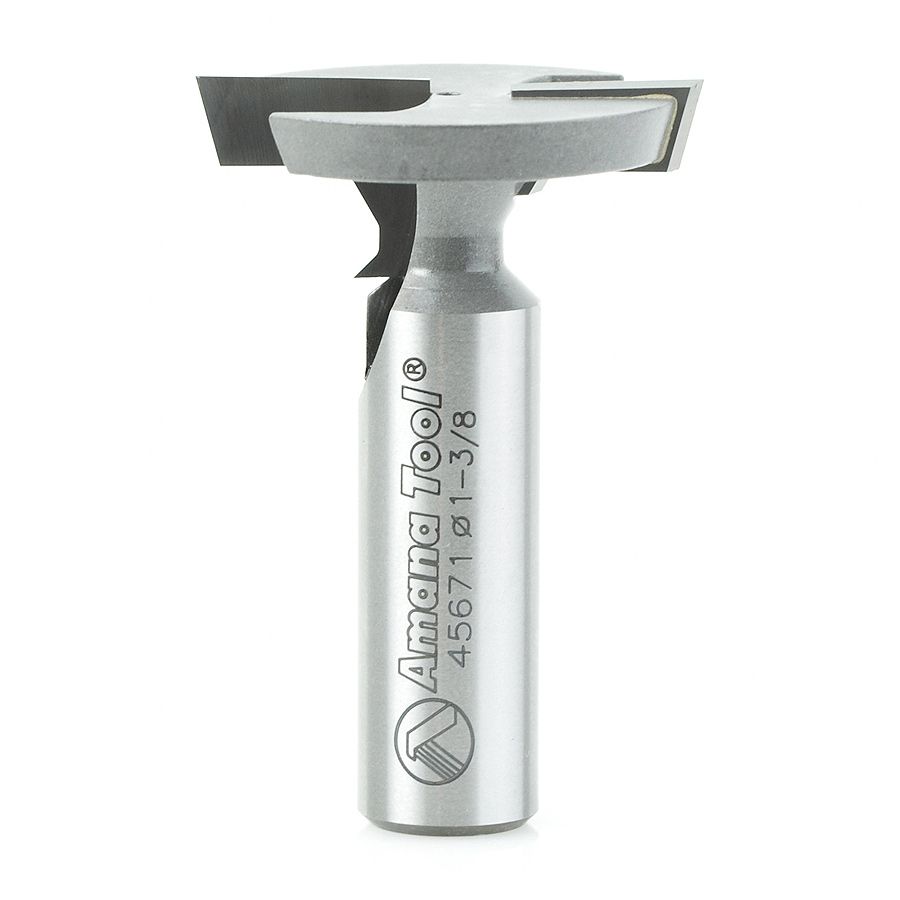

Amana Tool 45671 T-Slot Beveled Edge 1-3/8 Dia x 35/64 x 1/2 Inch Shank
- Designed for creating T-slot wall panels (used to cut their characteristic slots for many purposes) and radiused edges on the T-slots (allow easier adjustment of fixtures on the completed wall panels). For best results use in CNC and table-mounted routers.
- Note: These tools are designed for ‘groove-forming’ T-slot wall panels, they are not designed for plunging operations.
- 45671 DXF
- File Size : 547.6 KB
| Cutting Diameter | 1-3/8 |
|---|---|
| Shank | 1/2 |
| Cutting Length | 35/64 |
| Overall Length | 2-3/64 |
| (d1) | 3/8 |
| (a1) | 15° |
| Number of Flutes | 2 |
| a° | 30° |
| (B1) | 1/4 |
