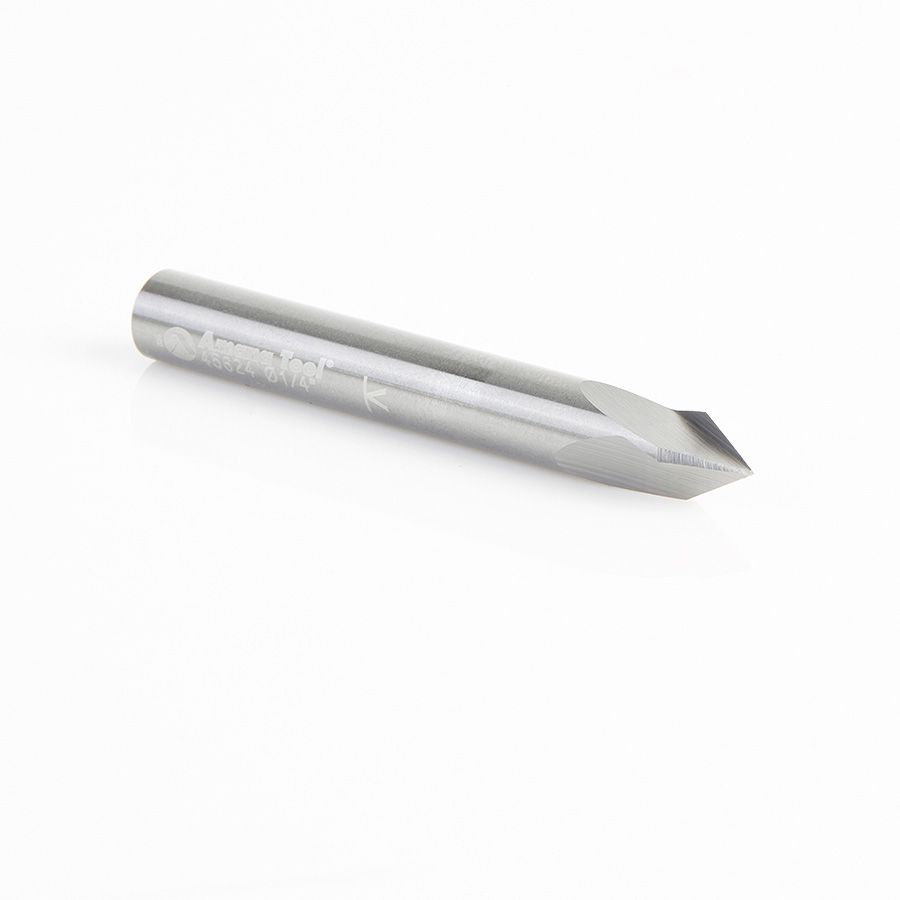

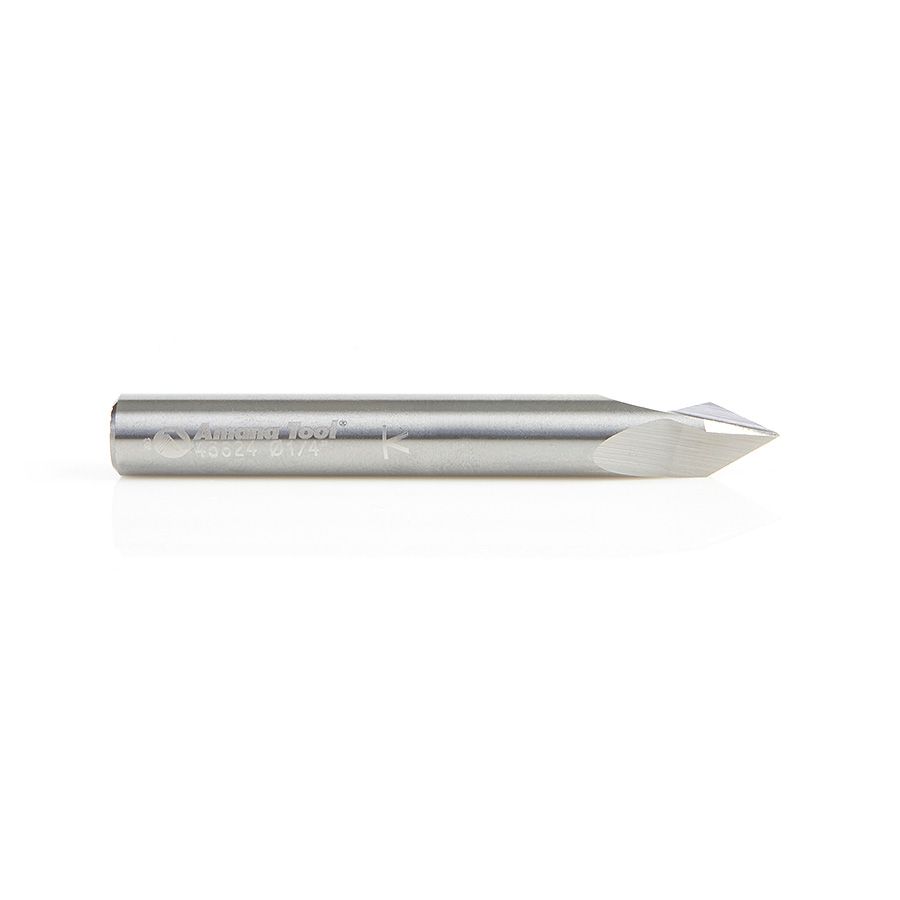

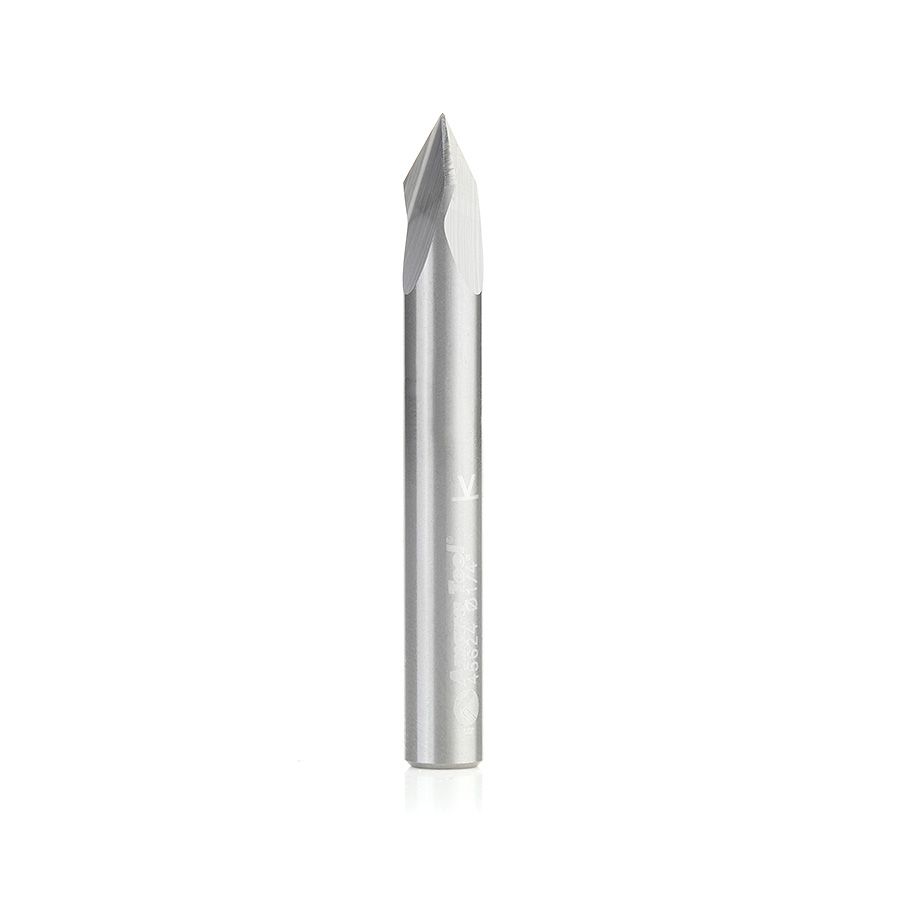

Amana Tool 45624 Solid Carbide V-Groove 60 Deg x 1/4 Dia x 7/32 x 1/4 Inch Shank
- Cut decorative V-Grooves and lettering on signs with these V-Groove bits. Use with an edge guide to chamfer and bevel edges. Can be used with handheld, table-mounted and CNC routers.
- Excellent for cutting:
- 20lbs High Density Urethane
- Acrylic
- Composites
- Composite Decking
- Foam
- Laminate
- MDF/HDF
- Melamine
- Plywood
- PVC Plastic
- Sign Board
- Solid Surface
- Veneered Plywood
- Wood
- Xanita® Board
- Vectric and Fusion 360 compatible tool files for 45624 available for download, click here.
- Carbide Tipped V-Groove Speed and Feed Chart
| Cutting Diameter | 1/4 |
|---|---|
| Shank | 1/4 |
| Cutting Length | 7/32 |
| Overall Length | 2 |
| Number of Flutes | 3 |
| a° | 60° |
| (B1) | 31/64 |
