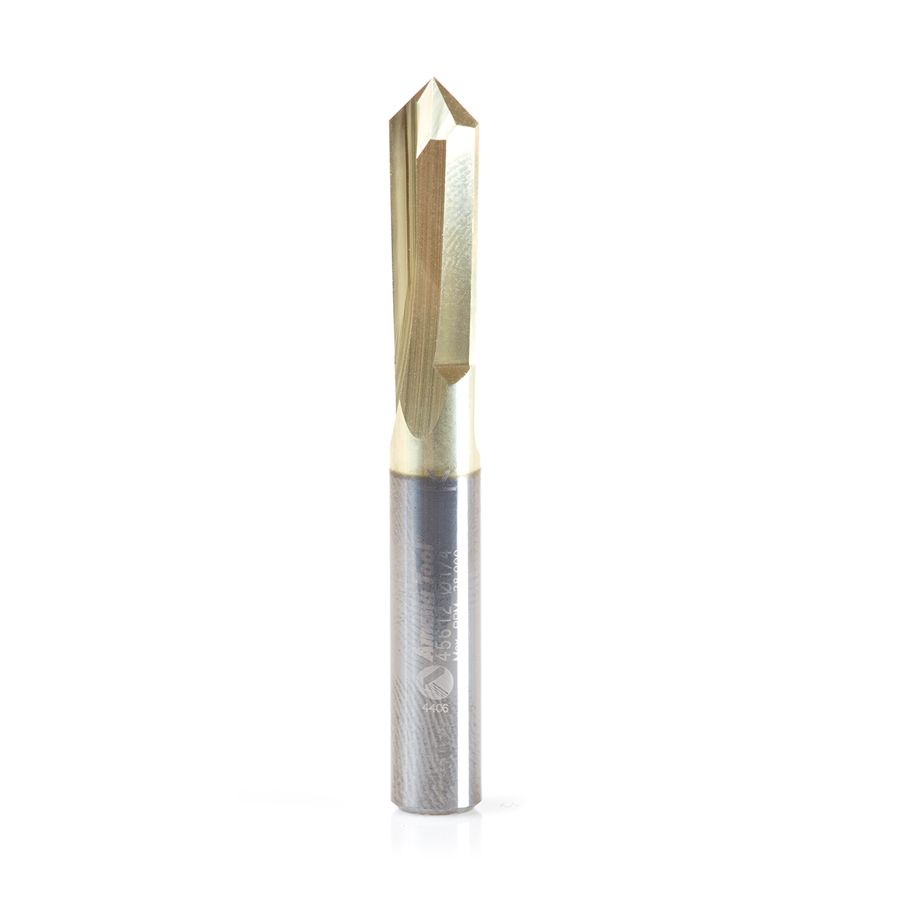

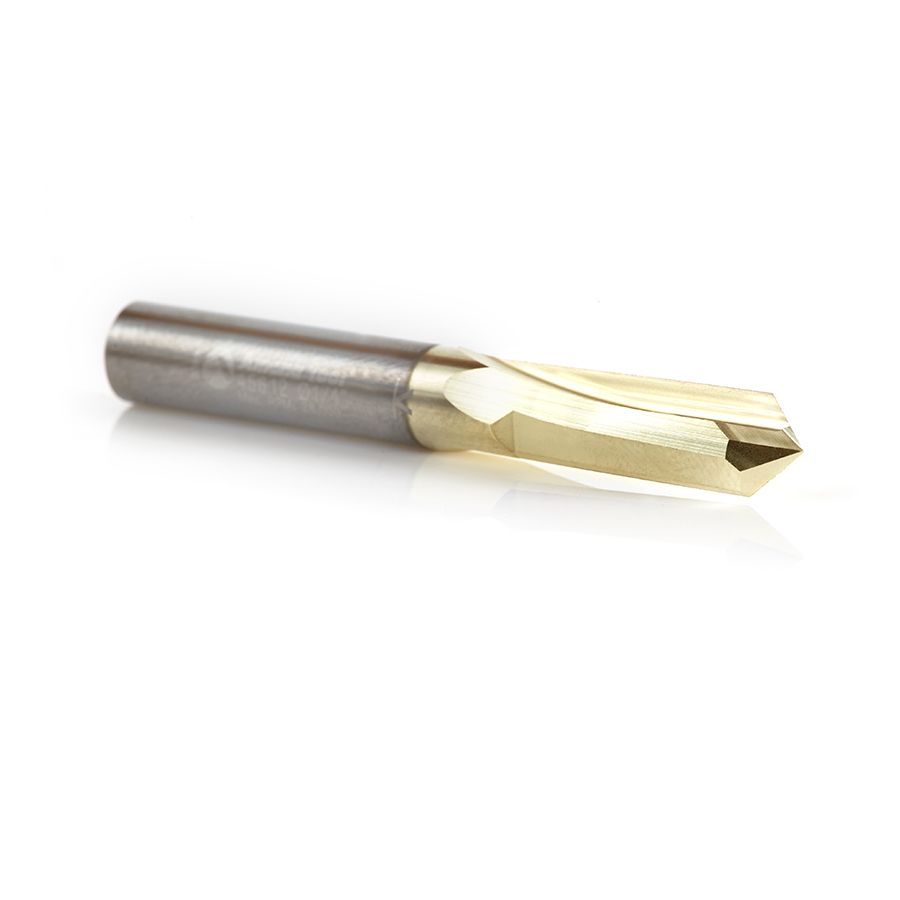

Amana Tool 45612 "Zero-Point" 90 Degree V-Groove and Engraving 1/4 Dia x 1/8 x 1/4 Shank ZrN Coated Router Bit
- Designed for beveling or V-Grooving 90° the following materials:
- Acrylonitrile-Butadiene-Styrene (ABS)
- Aluminum, Brass, Bronze, Copper, Gold & Silver
- Aluminum 5052
- Composites
- Fomex® with Aluminum Face
- Hard Plastics
- Hardwood
- Laminated Chipboard/Plywood
- MDF
- Non-Ferrous Metals
- Polycarbonate (Lexan™)†
- Solid Surfaces (Corian®
- Formica® ect)
- Soft Plastics
- Softwood
- Veneer
- †Recommendation: Use the slowest suggested feed rates and the shortest bits necessary for cutting and routing Lexan™.
- Benefits of ZrN Coating
- Creates a harder and tougher cutting edge allows for a prolonged cutting edge life and helps to prevent the build-up of material in the flutes while cutting
- High resistance to wear
- Extended tool life
- Less friction & heat buildup
- High resistance to wear
- Vectric compatible tool file for 45612 available for download, click here.
- 45º, 60º & 90º Engraving CNC with ZrN Coating for V Grooving Speed and Feed Chart
| Cutting Diameter | 1/4 |
|---|---|
| Shank | 1/4 |
| Cutting Length | 1/8 |
| Overall Length | 2-1/4 |
| Number of Flutes | 2 |
| Angle degree | 90° |
| (B1) | 3/4 |
