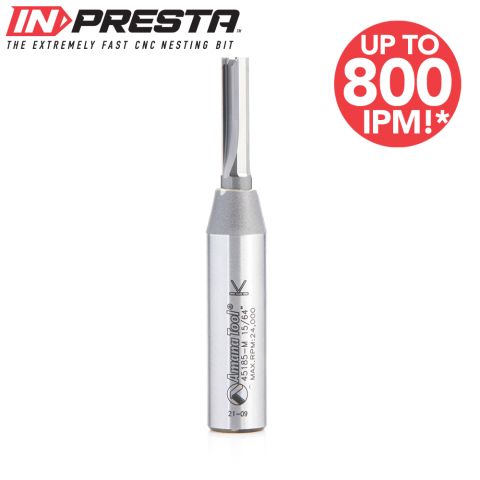

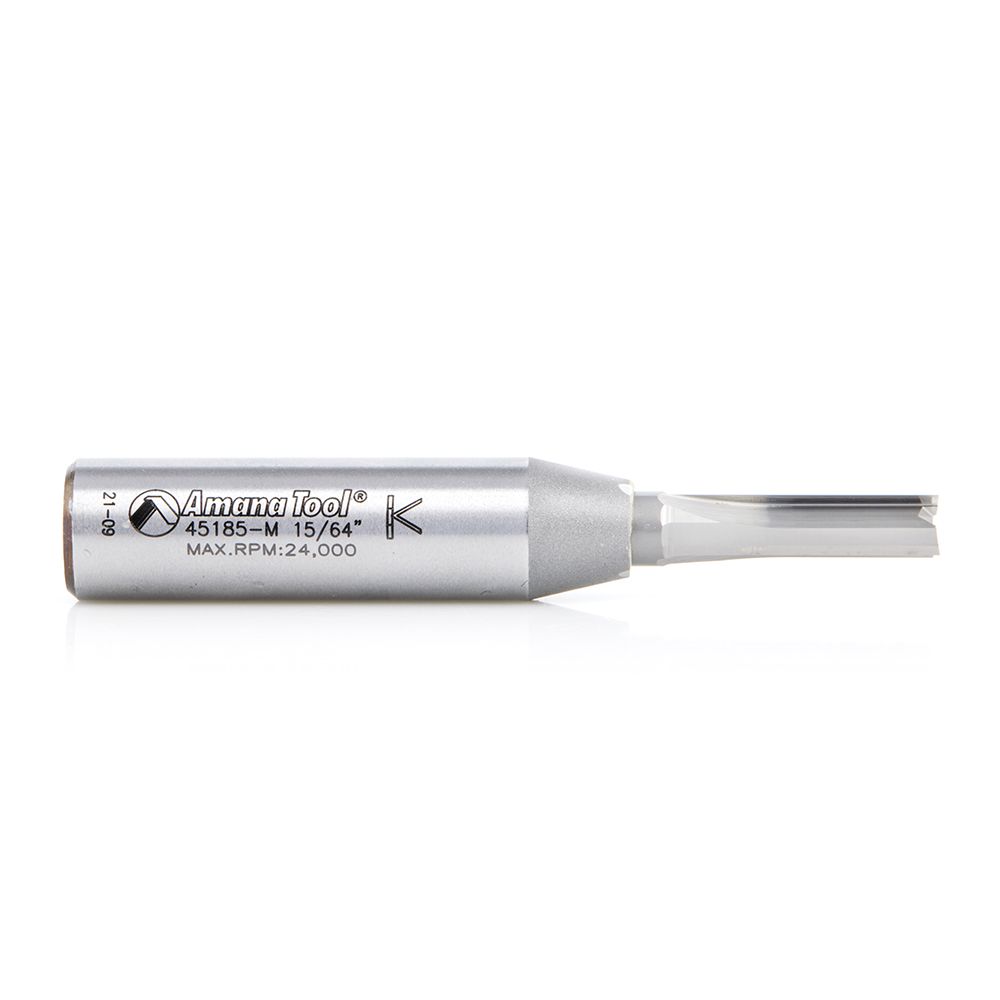

Amana Tool 45185-M CNC In-Presta™ 3 Flute Solid Carbide Cutting Edge Straight Plunge High Production 6mm Dia x 21mm x 12mm Shank
- Up to 800 inches per minute!*
- For cutting 3/4" material thickness in one pass
- 3 Flute for improved surface finish
- Only 6mm diameter equals minimal material waste
- Use a three-flute bit where fine finish is paramount. Three flutes balance the bit, eliminating vibration that degrades the cut finish. Three cuts per revolution yield a smooth surface and increased feed rates. 45185-M features a solid carbide cutting edge.
- Excellent for nesting and grooving at an extremely fast feed rate which increases cost savings
- 6mm cutting diameter CNC nesting router bit with solid carbide cutting edges brazed into steel 12mm shank
- The unique design contributes to superb performance and excellent cutting results
- Designed primarily for high speed CNC production
- Long lasting, fine micrograin extra hard carbide resulting in long tool life before re-sharpening
- Excellent for Cutting:
- Laminated Particle Board, MDF & Melamine: Feed rate up to 800 IPM** at 18,000 RPM***
- Plywood: Feed rate up to 500 IPM** at 18,000 RPM***
- *Up to 800 IPM feed rate at 18,000 RPM cutting laminated particle board. Rate may change depending on material and CNC machine type.
- **IPM: Inches Per Minute
- ***RPM: Revolutions Per Minute
- In-Presta™ Solid Carbide Cutting Edge Straight Plunge Speed and Feed Chart
| Cutting Diameter | 6mm |
|---|---|
| Shank | 12mm |
| Cutting Length | 21mm |
| Overall Length | 77mm |
| Number of Flutes | 3 |
