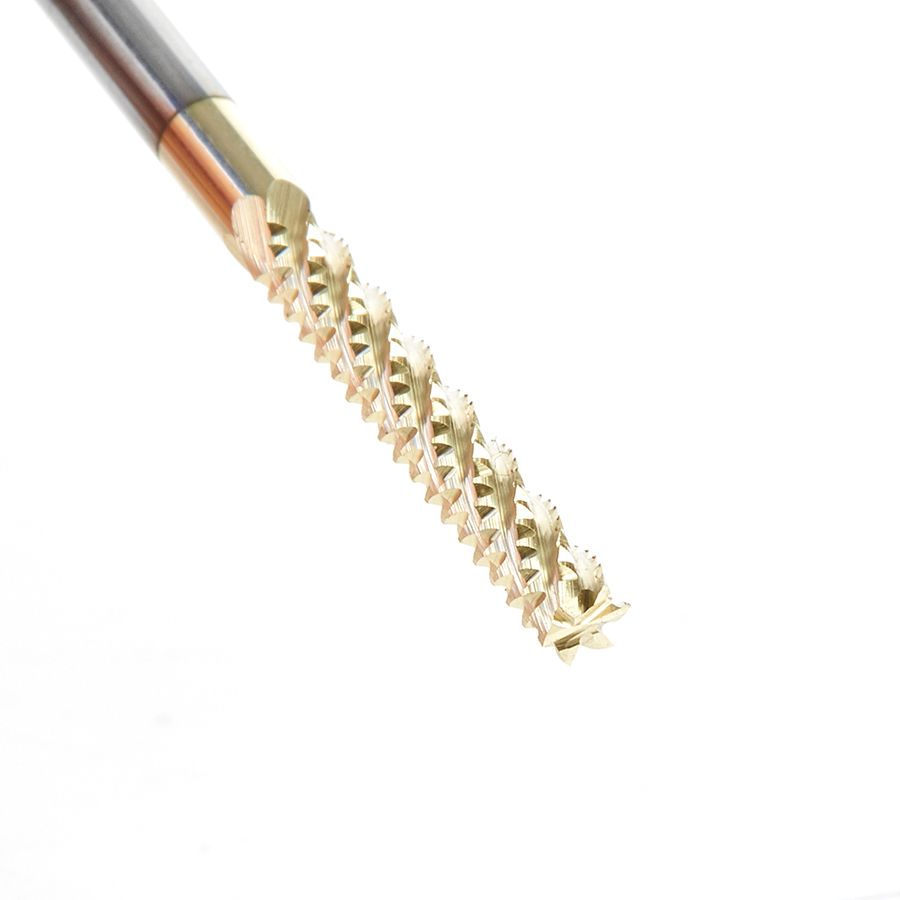

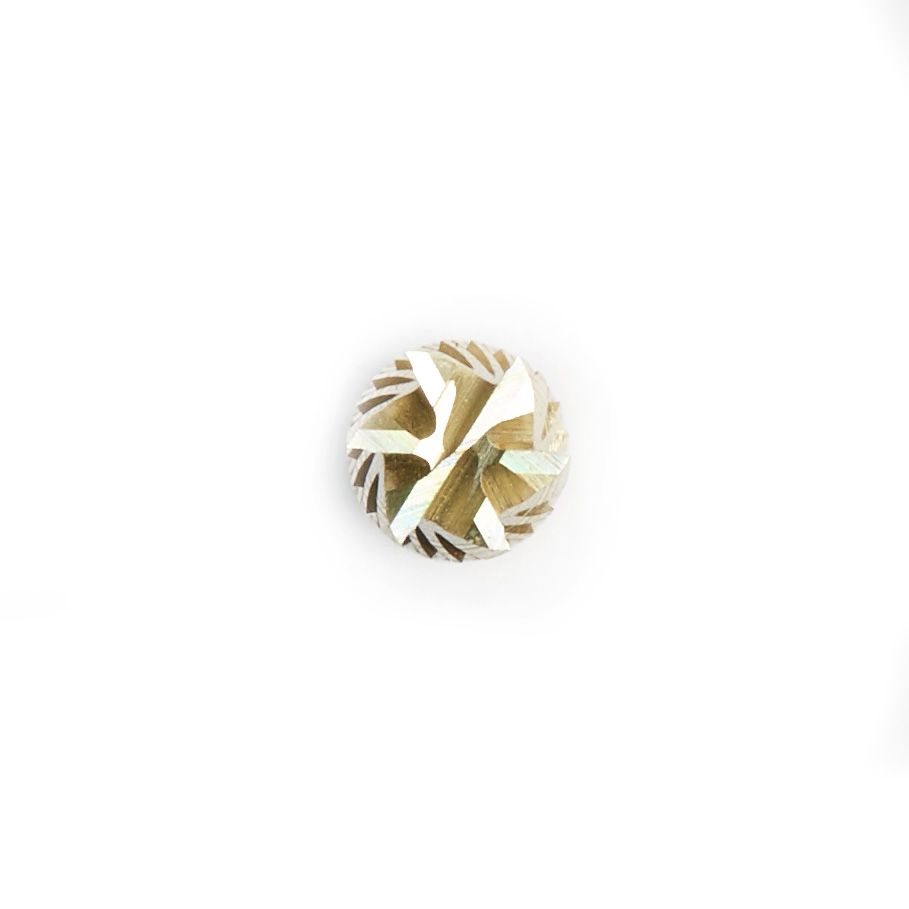

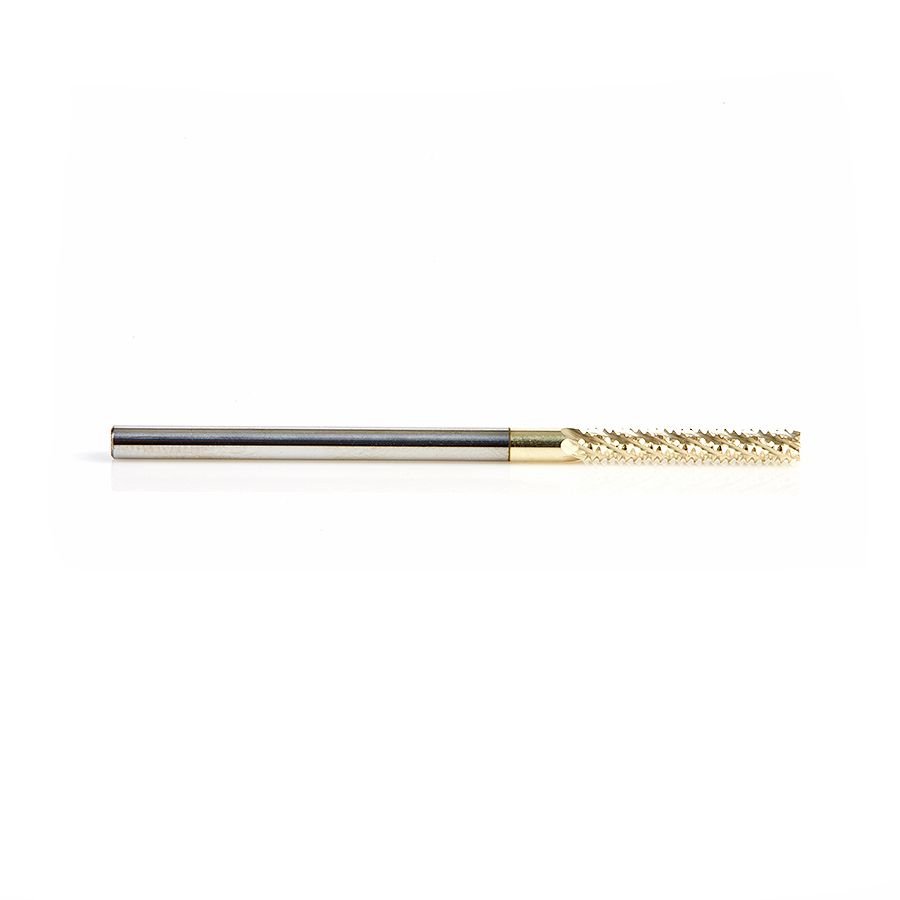

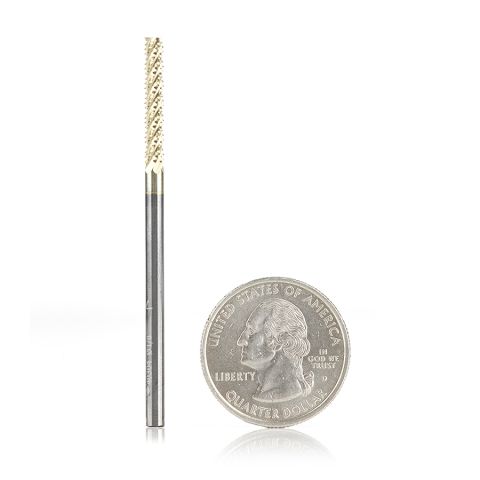

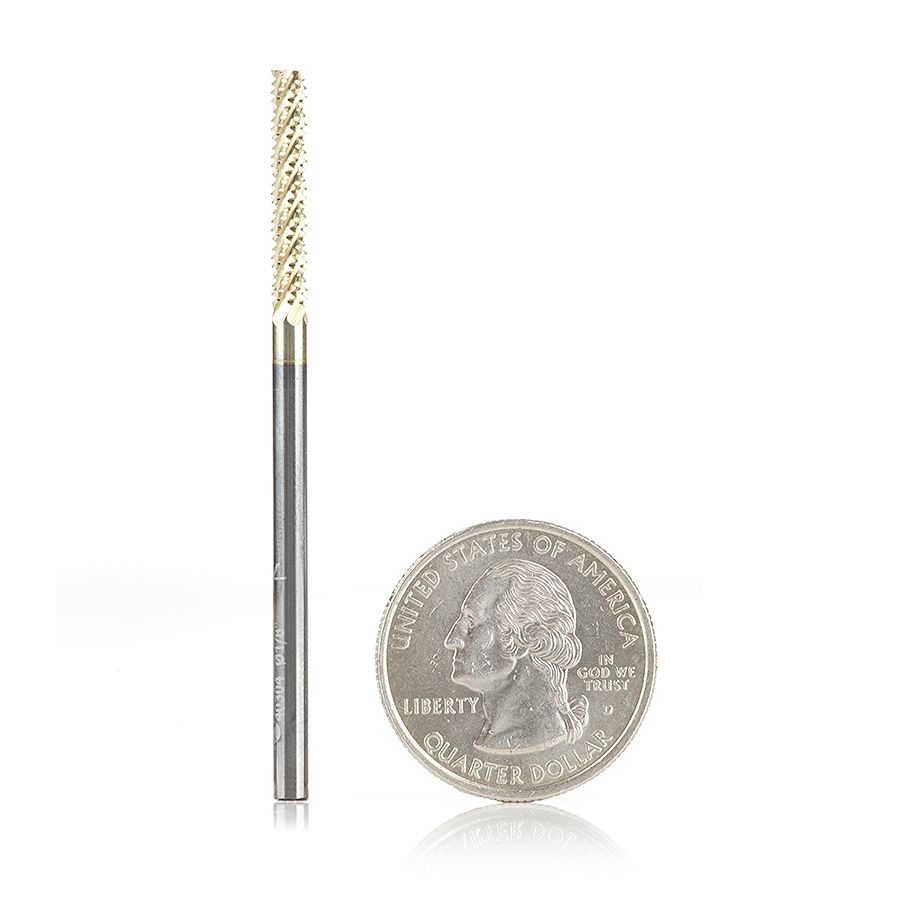

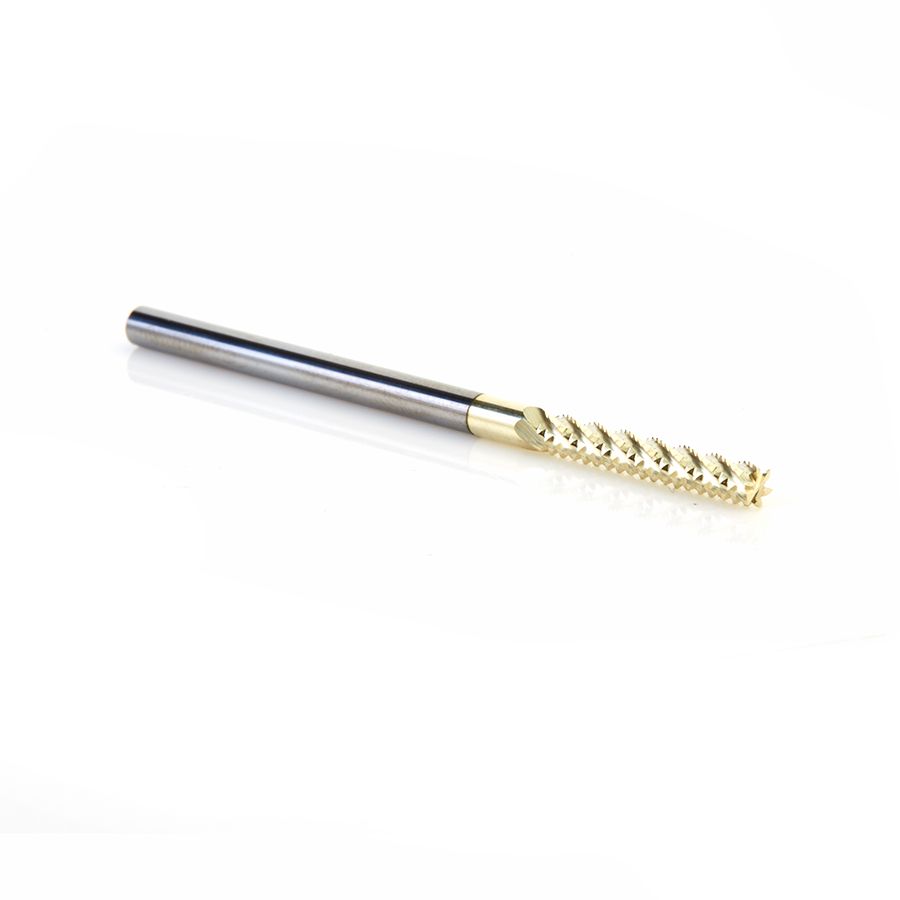

Amana Tool 40304 CNC Solid Carbide ZrN Coated Honeycomb Cutting Hogger 1/8 Dia x 13/16 x 1/8 Shank x 2-1/2 Inch Long x 6-Flute
- Designed to cut a large variety of honeycomb materials, hogger geometry is excellent for shredding and chip evacuation while maintaining a smooth surface.
- Amana Tool's "hogger" style routers for honeycomb composites incorporate a precision-ground "knuckle" profile, allowing a freer-cutting action that reduces power requirements and less sidewall pressure in low output spindles while giving impressive gains in feed-rates. ZrN coating greatly enhances durability in highly abrasive composites.
- Excellent for cutting:
- Honeycomb
- Composite Materials
- Acrylonitrile-Butadiene-Styrene (ABS)
- Lexan™
- Pressed Cardboard
- Vegetable Material
- Benefits of ZrN Coating:
- Creates a harder and tougher cutting edge allows for a prolonged cutting edge life and helps to prevent the build-up of material in the flutes while cutting
- High resistance to wear
- Extended tool life
- Less friction & heat buildup
- High resistance to wear
- Please note: For optimal results and to extend tool life please use mist lubricant system or air cooling. Please inspect cut and adjust accordingly.
- Solid Carbide ZrN Coated CNC Honeycomb Hogger Speed and Feed Chart
| Cutting Diameter | 1/8 |
|---|---|
| Shank | 1/8 |
| Cutting Length | 13/16 |
| Overall Length | 2-1/2 |
| Number of Flutes | 6 |
| Maximum RPM | 25000 |
